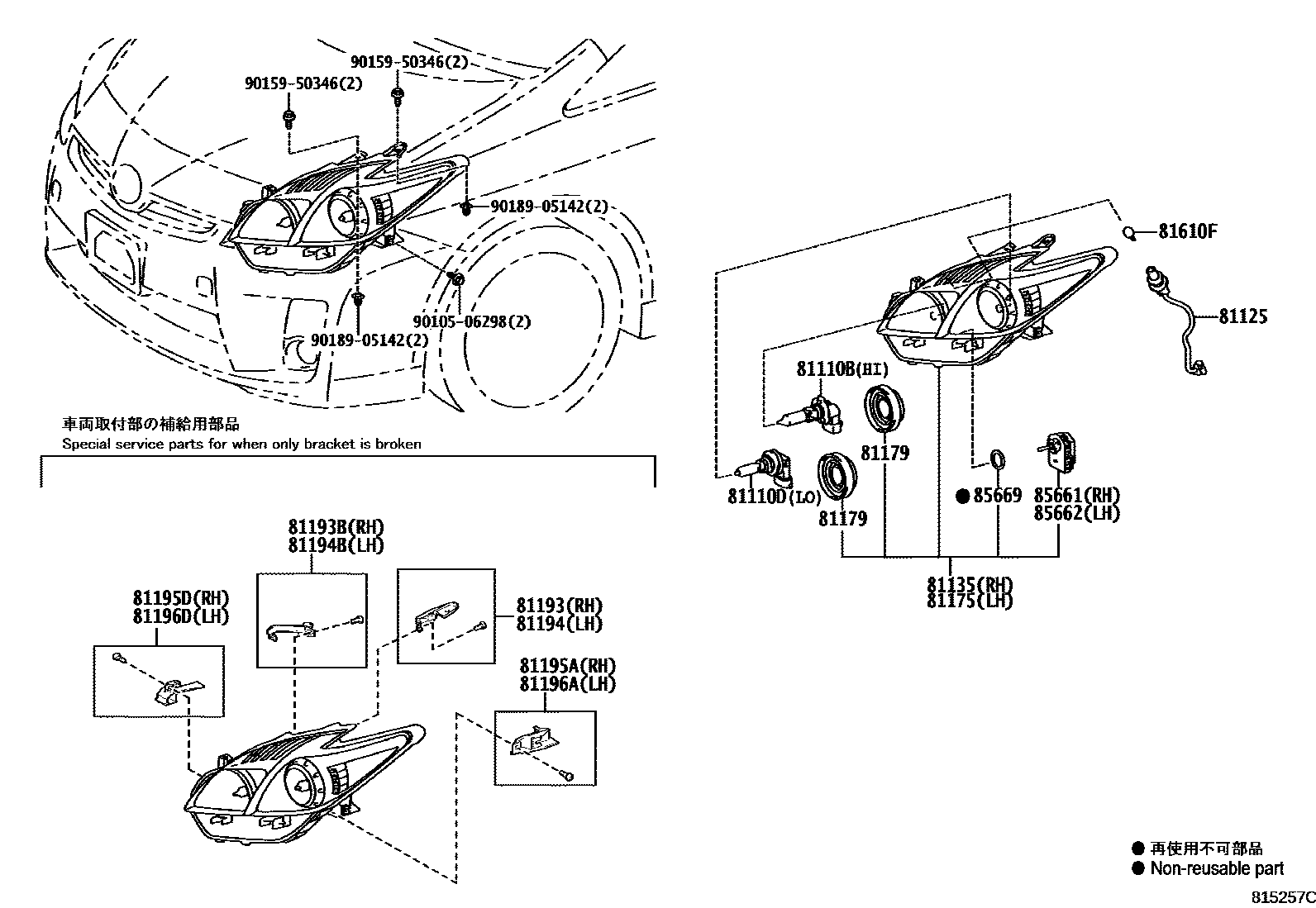

Toyota PRIUS(PLUG-IN HBD) — HEADLAMP
81110BBULB(FOR HEADLAMP, NO.1)
12V65W(SAE),60W(ECE)
81110DBULB(FOR HEADLAMP, NO.2)
12V 55W,HALOGEN
81125CORD, HEADLAMP
81135UNIT ASSY, HEADLAMP, RH
sub81130-47370
81175UNIT ASSY, HEADLAMP, LH
sub81170-47370
81179COVER, HEADLAMP SOCKET
81193RETAINER, HEADLAMP PROTECTOR, UPPER RH
81193BRETAINER, HEADLAMP PROTECTOR, UPPER RH NO.2
81194RETAINER, HEADLAMP PROTECTOR, UPPER LH
81194BRETAINER, HEADLAMP PROTECTOR, UPPER LH NO.2
81195ARETAINER, HEADLAMP PROTECTOR, LOWER RH
81195DRETAINER, HEADLAMP PROTECTOR, LOWER RH NO.2
81196ARETAINER, HEADLAMP PROTECTOR, LOWER LH
81196DRETAINER, HEADLAMP PROTECTOR, LOWER LH NO.2
81610FBULB(FOR CLEARANCE LAMP)
12V 5W
85661MOTOR, HEADLAMP LEVELING, RH
85662MOTOR, HEADLAMP LEVELING, LH
85669PACKING, HEADLAMP LEVELING MOTOR BASE
9010506298
main90105-06298
9015950346
main90159-50346
9018905142
main90189-05142
21 parts on this diagram · 1 diagram in section
