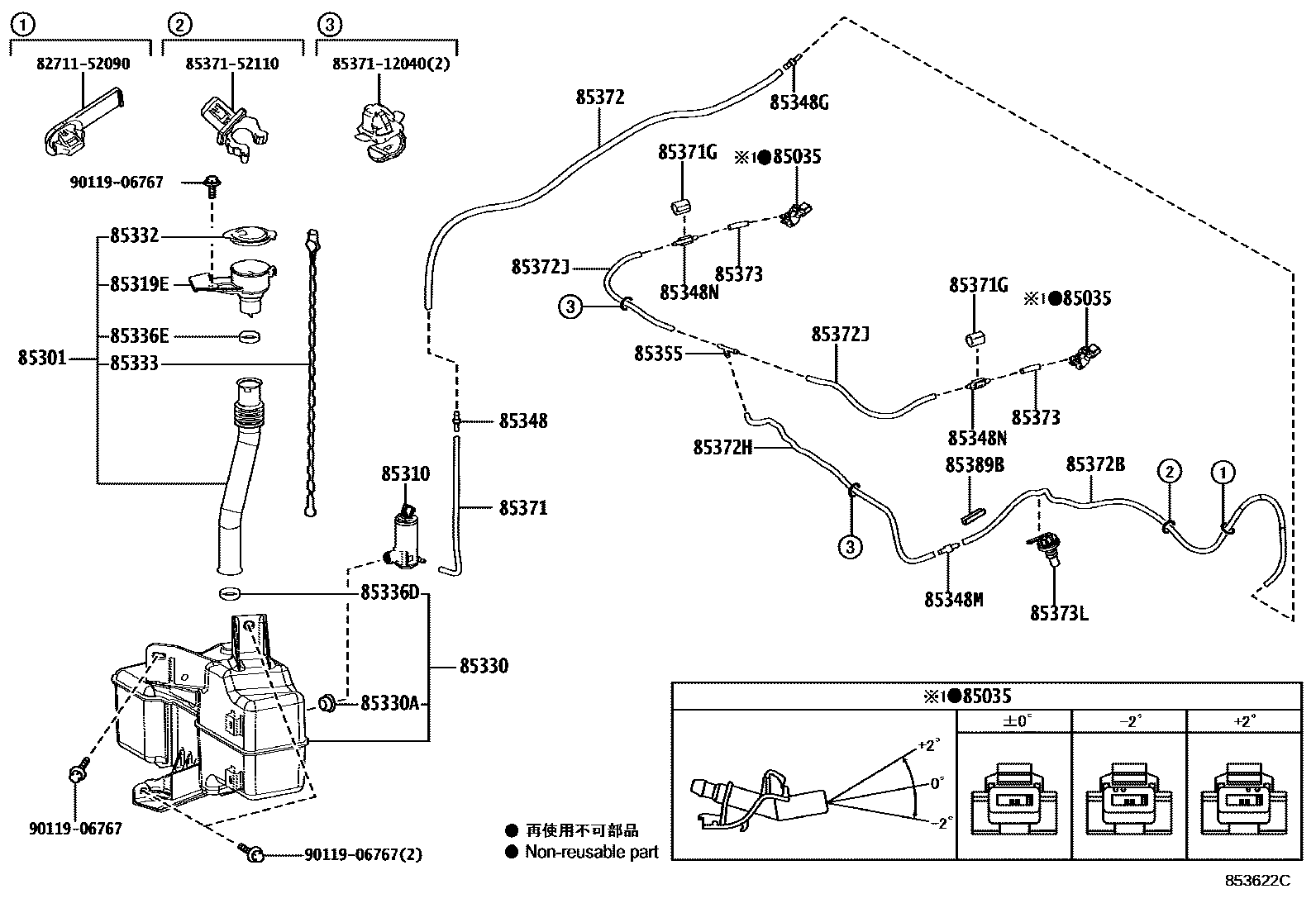

Toyota PRIUS PHV — WINDSHIELD WASHER
85035NOZZLE SUB-ASSY, WASHER
85301INLET SUB-ASSY, WASHER
85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER
85319EINLET WASHER
85330JAR ASSY, WINDSHIELD WASHER
85330ABUSH, WINDSHIELD WASHER JAR
85332CAP, WINDSHIELD WASHER JAR
85333FILTER, WINDSHIELD WASHER JAR
85336DPACKING, WINDSHIELD WASHER JAR
85336EPACKING, WINDSHIELD WASHER INLET HOSE
85348JOINT, WINDSHIELD WASHER HOSE, NO.1
85348GJOINT, WINDSHIELD WASHER HOSE, NO.2
85348MJOINT, WINDSHIELD WASHER HOSE, NO.3
85348NJOINT, WINDSHIELD WASHER HOSE, NO.4
85355VALVE, WINDSHIELD WASHER HOSE
85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)
85371GPROTECTOR, FRONT WASHER
85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1
85372BHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2
85372HHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.3
85372JHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.4
85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
85373LGROMMET, WASHER
85389BPROTECTOR, WINDSHIELD WASHER
8271152090WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-52090
8537112040HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)
main85371-12040
8537152110HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)
main85371-52110
9011906767
main90119-06767
28 parts on this diagram · 1 diagram in section
WINDSHIELD WASHER for Toyota PRIUS PHV
This section contains 28 genuine Toyota parts for the WINDSHIELD WASHER system of the Toyota PRIUS PHV. Key components include: NOZZLE SUB-ASSY, WASHER, INLET SUB-ASSY, WASHER, MOTOR AND PUMP ASSY, WINDSHIELD WASHER, INLET WASHER, JAR ASSY, WINDSHIELD WASHER.
