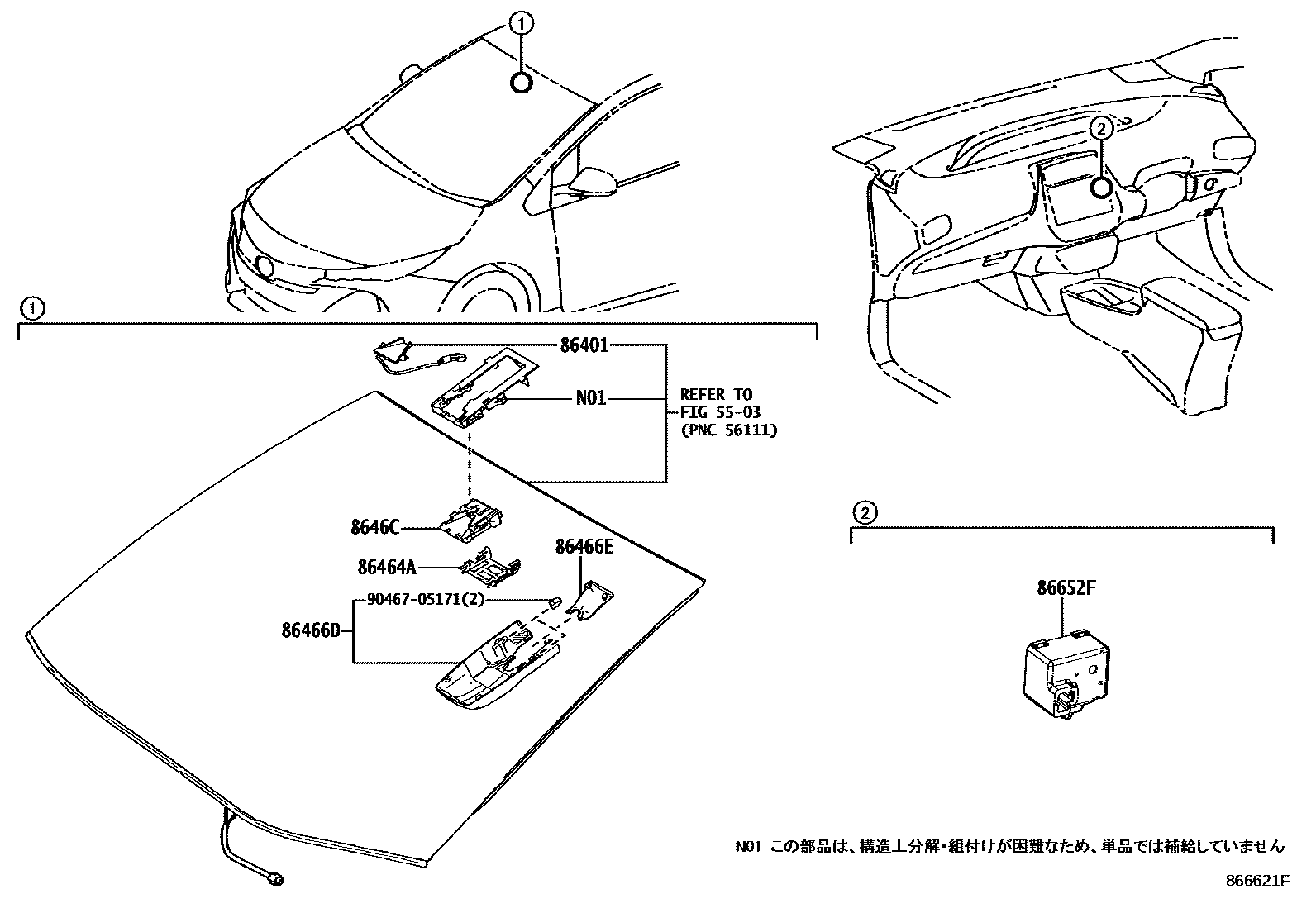

Toyota PRIUS PHV — PRE-COLLISION SYSTEM

5503

86401HOOD SUB-ASSY, FORWARD RECOGNITION W/HEATER

main86401-47010iZVW52..S..CBU201612-201904

main86401-47040iZVW52..CBU202007

86464ALATCH, FORWARD RECOGNITION

main86464-26010iZVW52..CBU202007

main86464-48011iZVW52..CBU201905-202007

86466DCOVER, FORWARD RECOGNITION, NO.1

main86466-47020iZVW52..S201609-201612

main86466-47021iZVW52..S..CBU201612-201904

86466ECOVER, FORWARD RECOGNITION, NO.2

main86466-47030iZVW52..S..CBU201609-201904

8646CCAMERA, FORWARD RECOGNITION

main8646C-47030iZVW52..S201609-201612

main8646C-47031iZVW52..S..CBU201612-201801

main8646C-47032iZVW52..S..CBU201801-201904

main8646C-47033iZVW52..CBU201905-202007

main8646C-47060iZVW52..CBU202007-202106

main8646C-47070iZVW52..CBU202106-202111

main8646C-47120iZVW52..CBU202111

86652FBUZZER, SKID CONTROL

main86652-50010iZVW52..S..CBU201609-201904

9046705171

main90467-05171

8 parts on this diagram · 1 diagram in section
