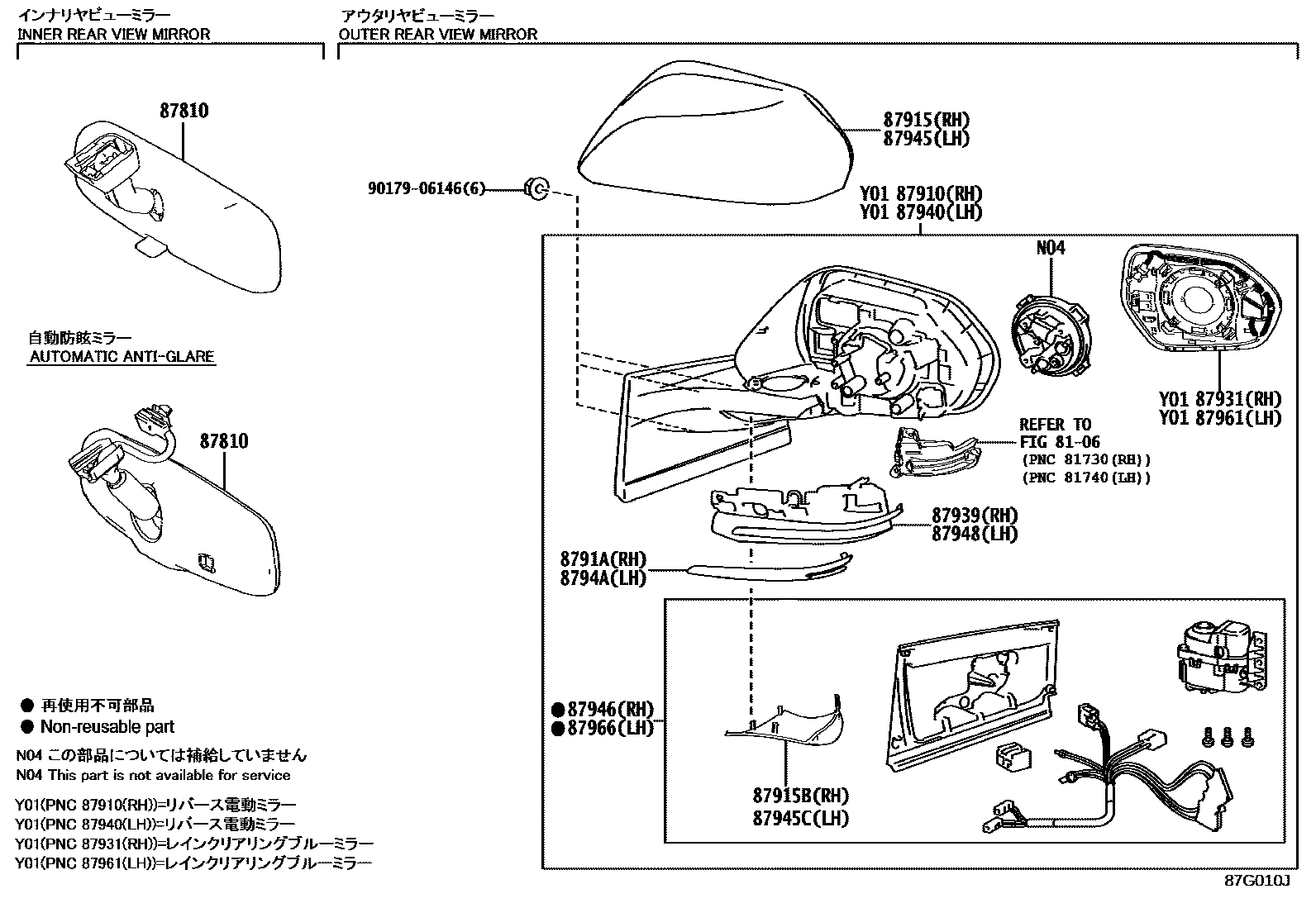

Toyota PRIUS PHV — MIRROR
8106SIDE TURN SIGNAL LAMP & OUTER MIRROR LAMP
87810MIRROR ASSY, INNER REAR VIEW
87910MIRROR ASSY, OUTER REAR VIEW, RH
87915COVER, OUTER MIRROR, RH
SUPER WHITE 2,040
PLATINUM WHITE PEARL MC.,089
SILVER ME.,1F7
GRAY ME.,1G3
EMOTIONAL RED 2,3U5
SPIRITED AQUA ME.,791
SUPER WHITE 2,040
WHITE PEARL CS.,070
SILVER ME.,1F7
GRAY ME.,1G3
EMOTIONAL RED,3T7
THERMO-TECT LIME GREEN,6W7
87915BCOVER, OUTER MIRROR, LOWER RH
8791ACOVER, OUTER MIRROR, RH NO.2
87931OUTER MIRROR, RH
87939COVER, OUTER MIRROR HOLE, RH
87940MIRROR ASSY, OUTER REAR VIEW, LH
87945COVER, OUTER MIRROR, LH
SUPER WHITE 2,040
PLATINUM WHITE PEARL MC.,089
SILVER ME.,1F7
GRAY ME.,1G3
EMOTIONAL RED 2,3U5
SPIRITED AQUA ME.,791
SUPER WHITE 2,040
EMOTIONAL RED,3T7
THERMO-TECT LIME GREEN,6W7
87945CCOVER, OUTER MIRROR, LOWER LH
87946RETRACTOR, OUTER MIRROR, RH
87948COVER, OUTER MIRROR HOLE, LH
8794ACOVER, OUTER MIRROR, LH NO.2
87961MIRROR OUTER, LH
87966RETRACTOR, OUTER MIRROR, LH
9017906146
main90179-06146
17 parts on this diagram · 2 diagrams in section
MIRROR for Toyota PRIUS PHV
This section contains 20 genuine Toyota parts for the MIRROR system of the Toyota PRIUS PHV. Key components include: SIDE TURN SIGNAL LAMP & OUTER MIRROR LAMP, CAMERA & REAR MONITOR DISPLAY, MIRROR ASSY, INNER REAR VIEW, MIRROR ASSY, OUTER REAR VIEW, RH, COVER, OUTER MIRROR, RH.
