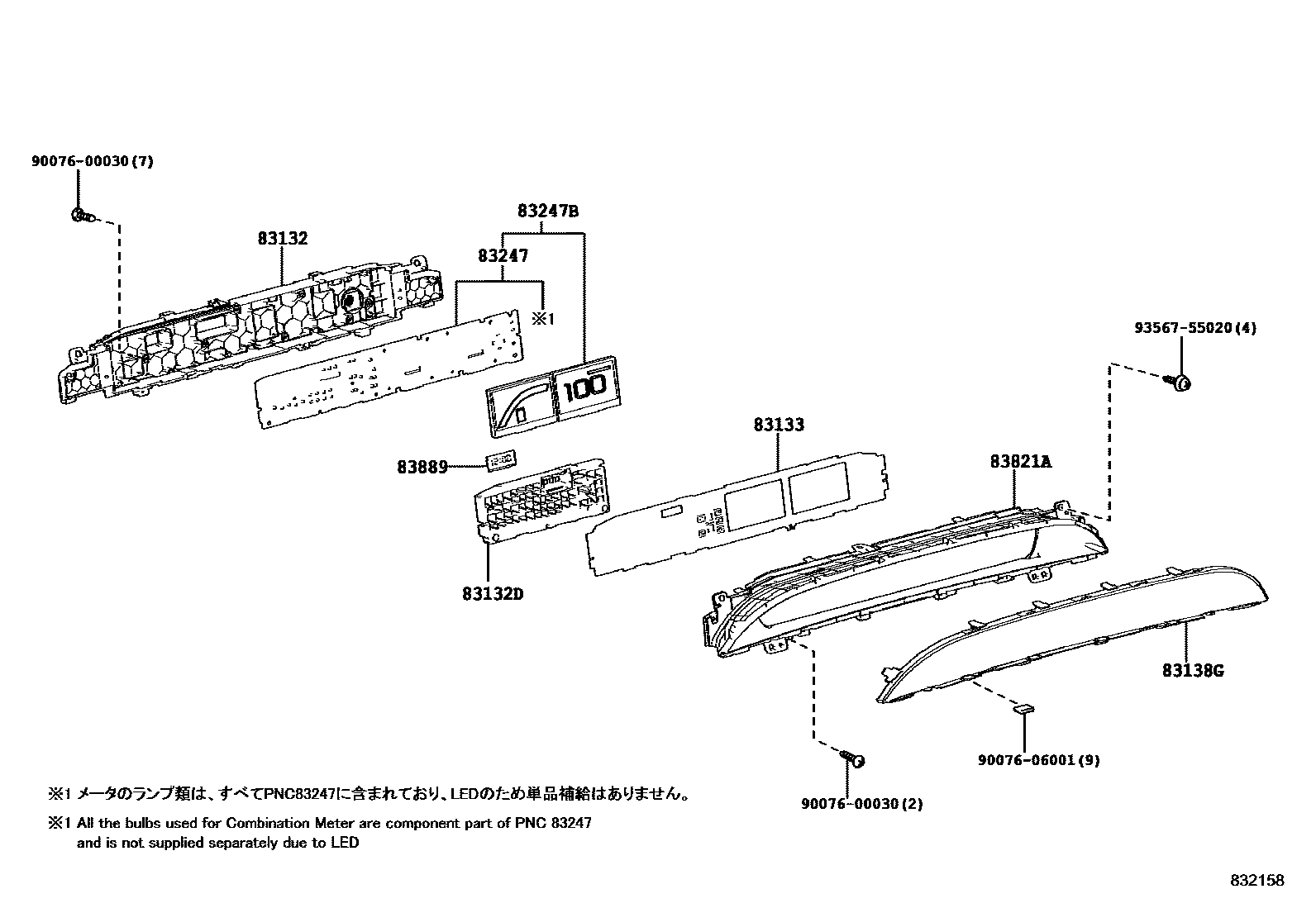

Toyota PRIUS PHV — METER
83132CASE, COMBINATION METER
83132DCASE, COMBINATION METER, NO.2
83133PLATE, COMBINATION METER, NO.1
83138GGLASS, COMBINATION METER
83247PLATE, METER CIRCUIT
83247BPLATE, METER CIRCUIT, NO.2
83821ACOVER, COMBINATION METER, NO.1
83889MULTI-DISPLAY, COMBINATION METER
9007600030
main90076-00030
9007606001
main90076-06001
9356755020
main93567-55020
11 parts on this diagram · 2 diagrams in section
METER for Toyota PRIUS PHV
This section contains 24 genuine Toyota parts for the METER system of the Toyota PRIUS PHV. Key components include: CASE, COMBINATION METER, CASE, COMBINATION METER, NO.2, PLATE, COMBINATION METER, NO.1, GLASS, COMBINATION METER, COMPUTER, COMBINATION METER MIRROR.
