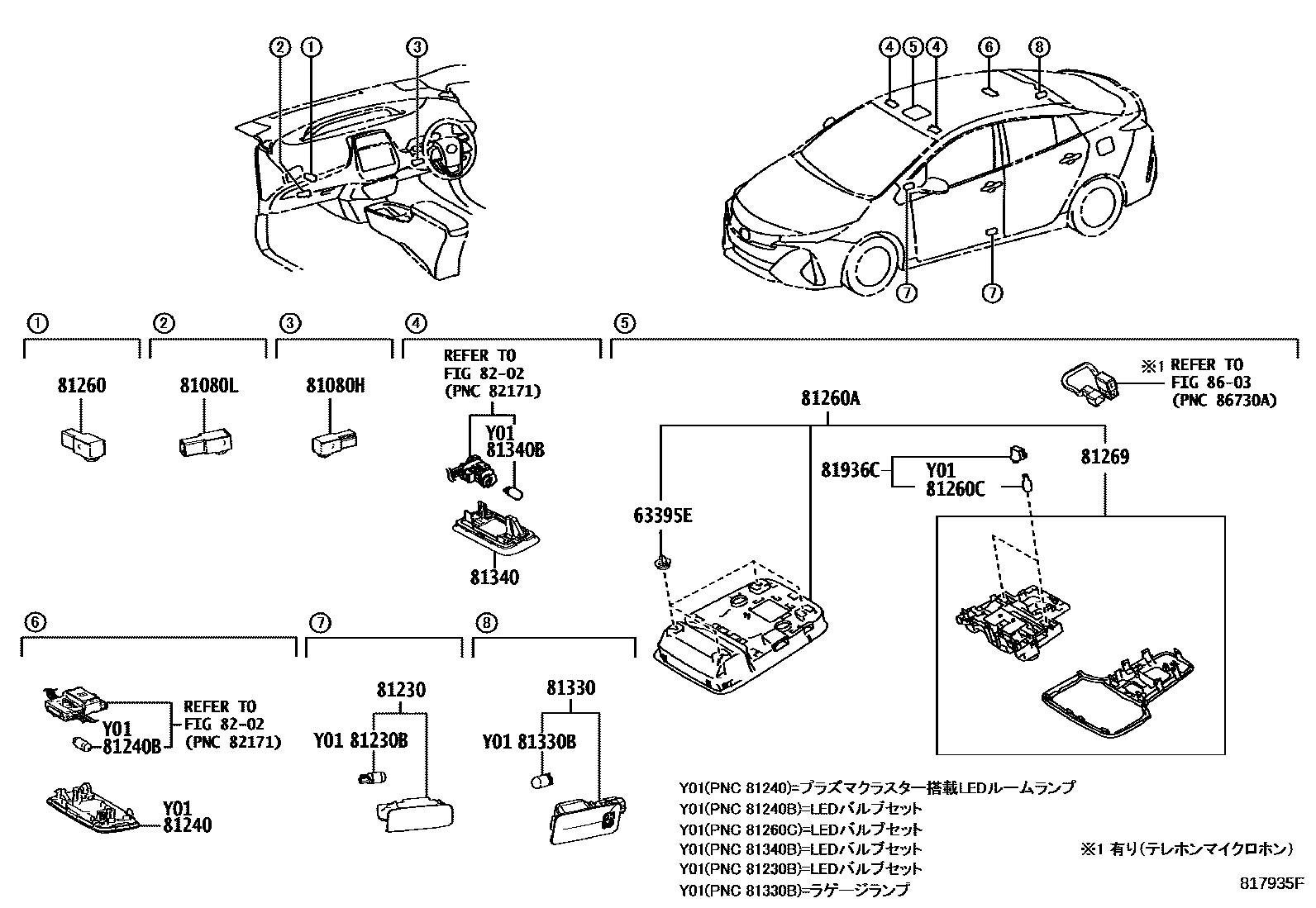

Toyota PRIUS PHV — INTERIOR LAMP

63395ECLIP(FOR MAP LAMP)

main90467-09240×4i201905-201906

main90467-09245×4i201907

81080HLAMP ASSY, INTERIOR ILLUMINATION, NO.1 RH

main81080-33290i201905

main81080-48010i201609-201707

81080LLAMP ASSY, INTERIOR ILLUMINATION, NO.1 LH

main81080-33290i201905

main81080-48010i201609-201707

81230LAMP ASSY, COURTESY

main81230-30200×2i201609-201904

81230BBULB(FOR COURTESY LAMP)

main90981-12010×2i201609-201904

81240LAMP ASSY, ROOM, NO.1

main81240-47010-B0i201905

COOL GRAY,TRIM1#,2#

81240BBULB, ROOM LAMP, NO.1

main90981-14011i201609-201904

81260LAMP ASSY, GLOVE BOX

main81080-33290i201707-201904

main81080-48010i201609-201707

81260ALAMP ASSY, MAP

main81208-47330-B0supersedes 81208-47010-B0i201609-201904

main81208-47010-B0supersedes 81208-47300-B0i202106

81260CBULB(FOR MAP LAMP)

main99132-12050i202106

81269SWITCH, MAP LAMP

main00000-00000i201609-201904

main81206-47010-B0i201609-201904

COOL GRAY,TRIM1#,2#

81330LAMP ASSY, LUGGAGE COMPARTMENT, NO.1

main81330-58010i201609-201904

81330BBULB, LUGGAGE COMPARTMENT LAMP

main99132-12050i201609-201904

81340LAMP ASSY, VANITY

main81340-30110×2i201609-201904

81340BBULB (FOR VANITY LAMP)

main90981-11062×2i201609-201904

81936CBULB ASSY

main81936-12160×2i201609-201904

8202WIRING & CLAMP

→ Go to FIG 82-02

8603NAVIGATION & FRONT MONITOR DISPLAY

→ Go to FIG 86-03

18 parts on this diagram · 5 diagrams in section

INTERIOR LAMP for Toyota PRIUS PHV

This section contains 19 genuine Toyota parts for the INTERIOR LAMP system of the Toyota PRIUS PHV. Key components include: CLIP(FOR MAP LAMP), LAMP ASSY, INTERIOR ILLUMINATION, NO.1 RH, LAMP ASSY, INTERIOR ILLUMINATION, NO.1 LH, LAMP SUB-ASSY, CONSOLE BOX, LAMP ASSY, COURTESY.
