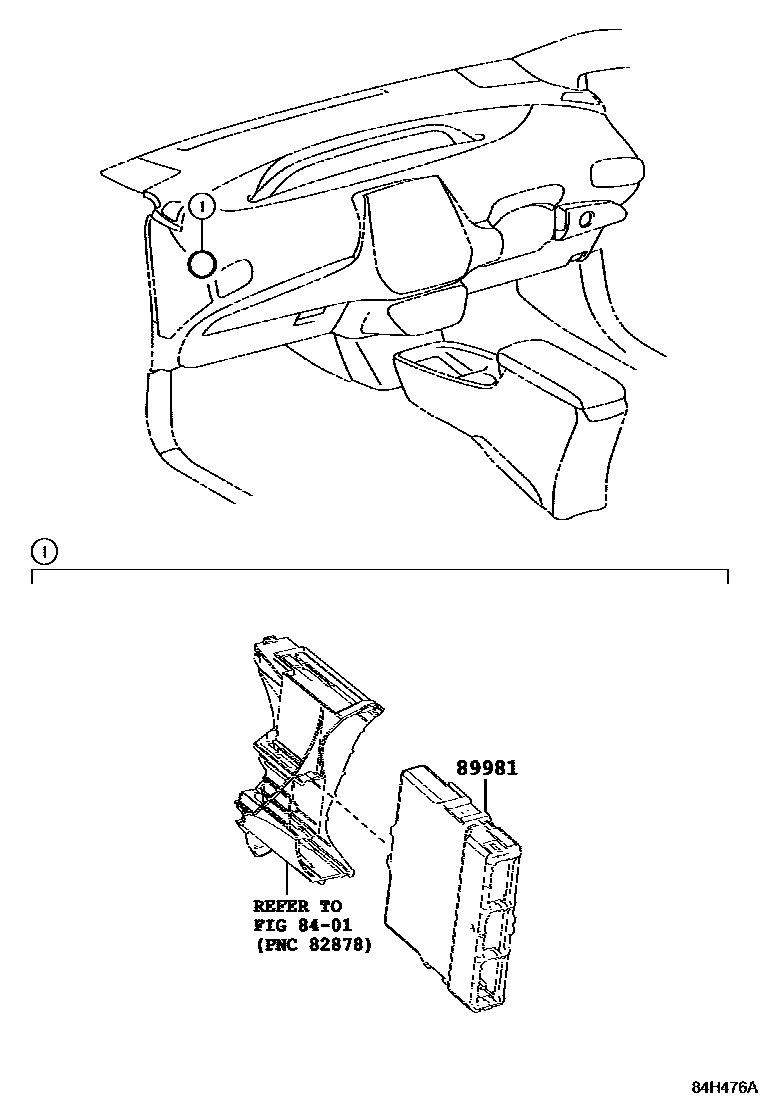

Toyota PRIUS PHV — HEV CONTROL COMPUTER

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

89981COMPUTER, HYBRID VEHICLE CONTROL

main89981-47880iZVW52..CBU201609-201712

main89981-47B90iZVW52..CBU201801-201812

main89981-47E50iZVW52..CBU201905-202007

main89981-47G10iZVW52..CBU201812-201904

main89981-47M50iZVW52..CBU202007-202106

main89981-47T90iZVW52..CBU202106

2 parts on this diagram · 1 diagram in section
