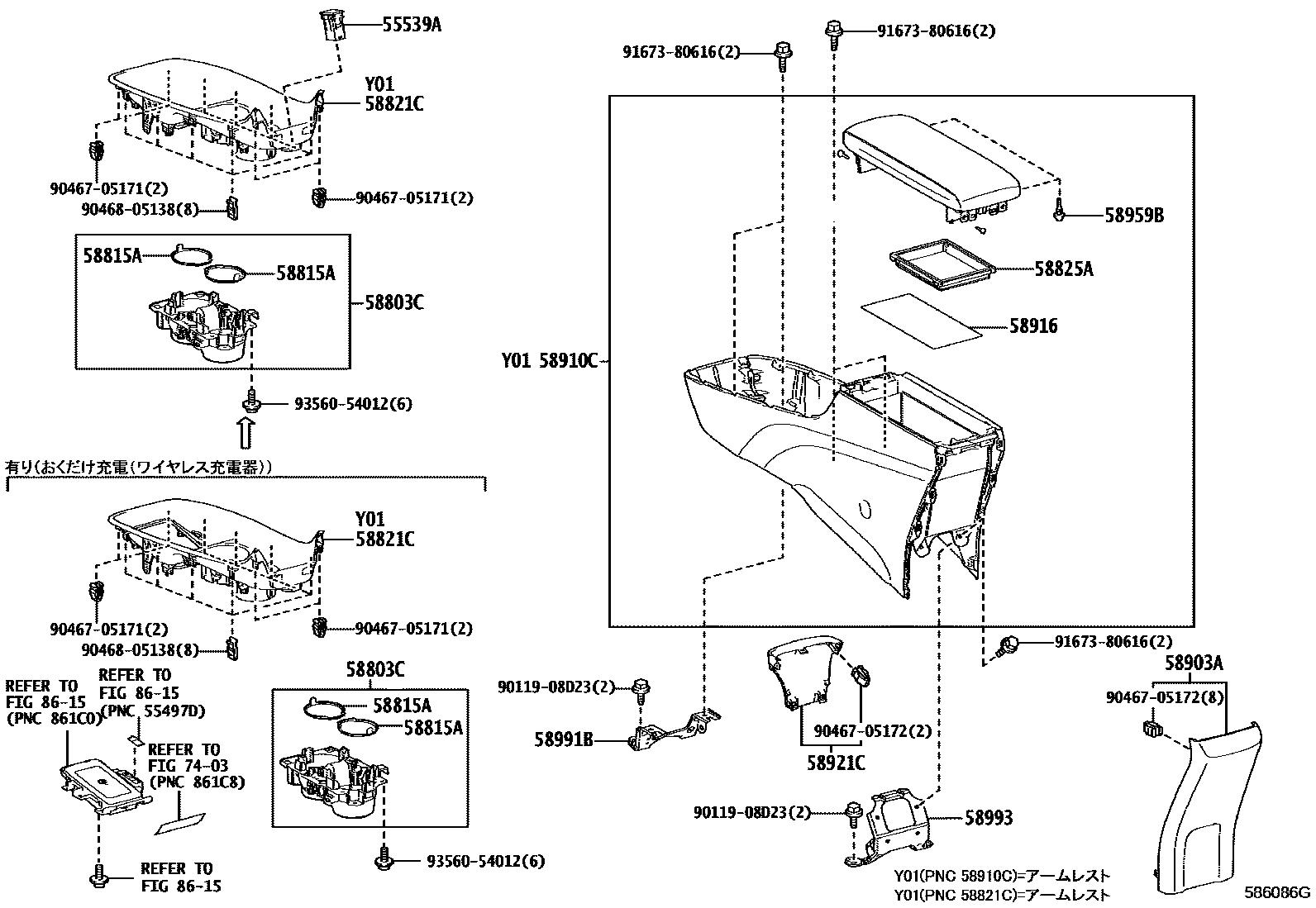

Toyota PRIUS PHV — CONSOLE BOX & BRACKET

0001 1 0002 1��(������) 0003 1 0004 1 0005 1��(������)

55539ACOVER, SPARE SWITCH HOLE

58803CBOX SUB-ASSY, CONSOLE CUP HOLDER

main58803-47011-A0iZVW52..PREM201609-201904

WHITE,TRIM1#

main58803-47011-C0iZVW52..PREM201609-201904

BLACK METALLC,TRIM10,2#

main58803-47050iZVW52..CBU201905

58815ACARPET, CONSOLE BOX

main58815-47080×2iZVW52..CBU201609-201904

58821CPANEL, CONSOLE, UPPER

main58821-47140-C0supersedes 58821-47051-C0iZVW52..S..CBU201905

main58821-47150iZVW52..S..CBU201905

main58821-47041-A0supersedes 58821-47051-A0iZVW52..PREM201609-201904

main58821-47041-C0supersedes 58821-47051-C0iZVW52..PREM201609-201904

main58821-47130-C0iZVW52..A201905-202106

58825APOCKET, CONSOLE BOX

main58825-47060iZVW52..CBU201905

58903APANEL SUB-ASSY, CONSOLE REAR END

main58903-47060-C0supersedes 58903-47070-C0iZVW52..PREM201609-201904

BLACK,TRIM1#,2#

main58903-47090-C1supersedes 58903-47060-C0iZVW52..A,PREM202007-202106

main58903-47100-C0iZVW52..A,PREM202007-202106

58910CBOX ASSY, CONSOLE, REAR

main58910-47030-C2iZVW52..PREM201609-201904

main58910-47040-C2iZVW52..(A,S)..CBU201905

BLACK,TRIM1#,2#

main58910-47140-C0iZVW52..(A,S)..CBU201609-201904

BLACK,TRIM1#,2#

main58910-47050-C0iZVW52..S..CBU201905-202007

main58910-47100-C2iZVW52..A202007

main58910-47150-C0iZVW52..S..CBU201612-201904

main58910-47190-C0iZVW52..PREM202007

58916MAT, BOX BOTTOM

main58916-47020iZVW52..CBU201905

main58916-47040iZVW52..S..CBU201905

58921CPLATE, BOX, UPPER NO.1

main58921-47021-A0iZVW52..A201609-201904

WHITE,TRIM1#

main58921-47021-C0iZVW52..A201609-201904

BLACK METALLC,TRIM10,2#

main58921-47030iZVW52..CBU201905

58959BCUSHION, CONSOLE COMPARTMENT DOOR

main90541-03078×2iZVW52..CBU201609-201904

58991BBRACKET, CONSOLE BOX MOUNTING, FRONT

main58991-47020iZVW52..CBU201609-201904

58993BRACKET, CONSOLE BOX MOUNTING, REAR

main58996-47030iZVW52..CBU201609-201904

7403

8615

9011908D23

main90119-08D23

9046705171

main90467-05171

9046705172

main90467-05172

9046805138

main90468-05138

9167380616

main91673-80616

9356054012

main93560-54012

20 parts on this diagram · 5 diagrams in section
