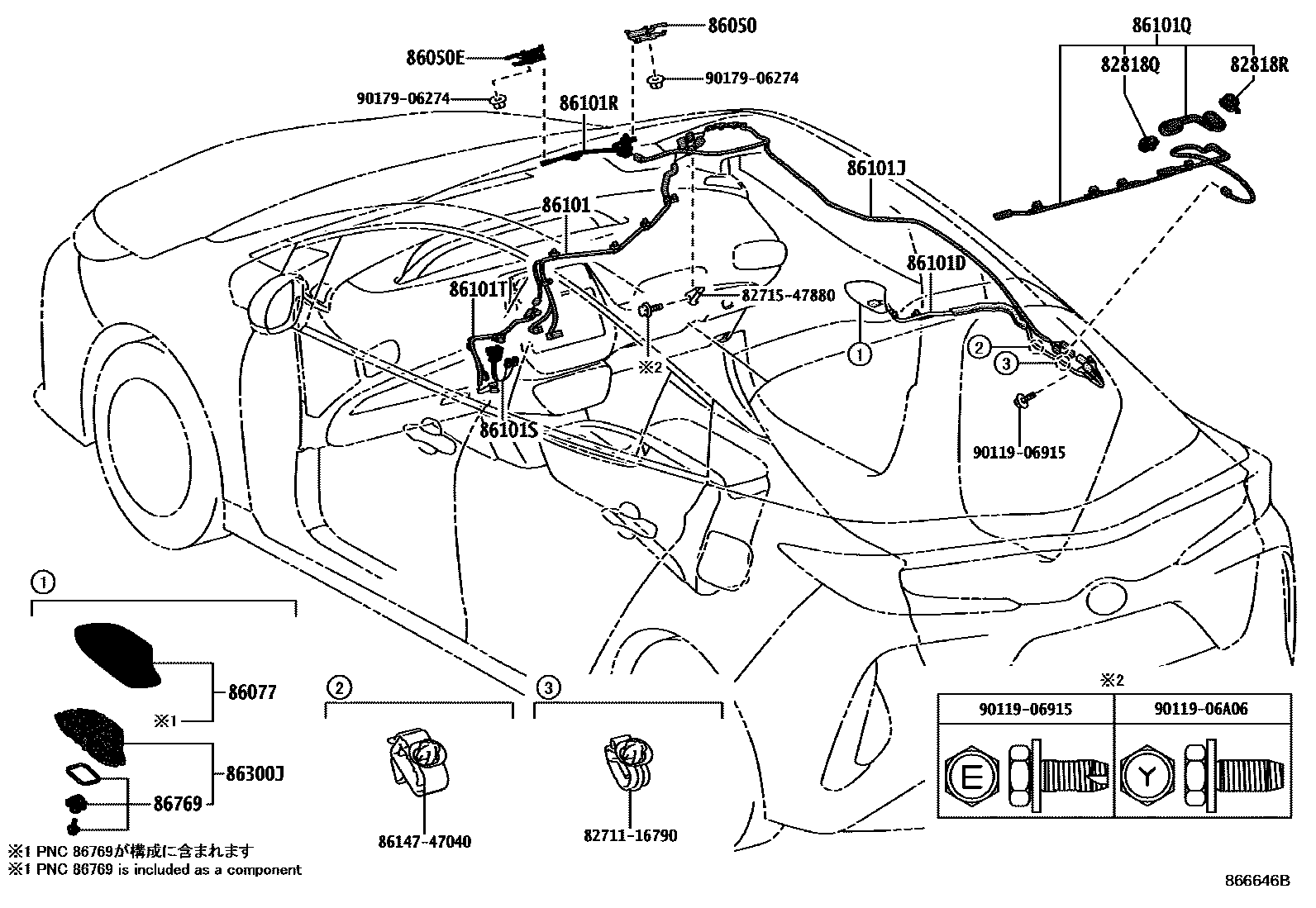

Toyota PRIUS PHV — ANTENNA
82818QPROTECTOR, WIRING HARNESS, NO.1
82818RPROTECTOR, WIRING HARNESS, NO.2
86050ANTENNA ASSY, TELEVISION
86050EANTENNA ASSY, TELEVISION
86077COVER KIT, ANTENNA
ATTITUDE BLACK MC.,070 ,089 ,1F7 ,1G3 ,218 ,3U5 ,4X1 ,791 ,8X8
BLACK,040 ,070 ,089 ,1F7 ,1G3 ,3U5 ,4X1 ,791 ,8X8; BLACK,040 ,089 ,1F7 ,1G3 ,3U5 ,4X1 ,791 ,8X8
86101CORD SUB-ASSY, ANTENNA
86101DCORD SUB-ASSY, ANTENNA, NO.3
86101JCORD SUB-ASSY, ANTENNA, NO.2
86101QCORD SUB-ASSY, ANTENNA, NO.4
86101RCORD SUB-ASSY, ANTENNA, NO.5
86101SCORD SUB-ASSY, ANTENNA
86101TCORD SUB-ASSY, ANTENNA
86300JANTENNA ASSY, ROOF
86769HOUSING, ROOF ANTENNA
8271116790WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-16790
8271547880BRACKET,WIRING HARNESS CLAMP
main82715-47880
8614747040
main86147-47040
9011906915
main90119-06915
9011906A06
main90119-06A06
9017906274
main90179-06274
20 parts on this diagram · 1 diagram in section
ANTENNA for Toyota PRIUS PHV
This section contains 20 genuine Toyota parts for the ANTENNA system of the Toyota PRIUS PHV. Key components include: PROTECTOR, WIRING HARNESS, NO.1, PROTECTOR, WIRING HARNESS, NO.2, ANTENNA ASSY, TELEVISION, COVER KIT, ANTENNA.
