Toyota PRIUS PHV — PARTIAL ENGINE ASSEMBLY

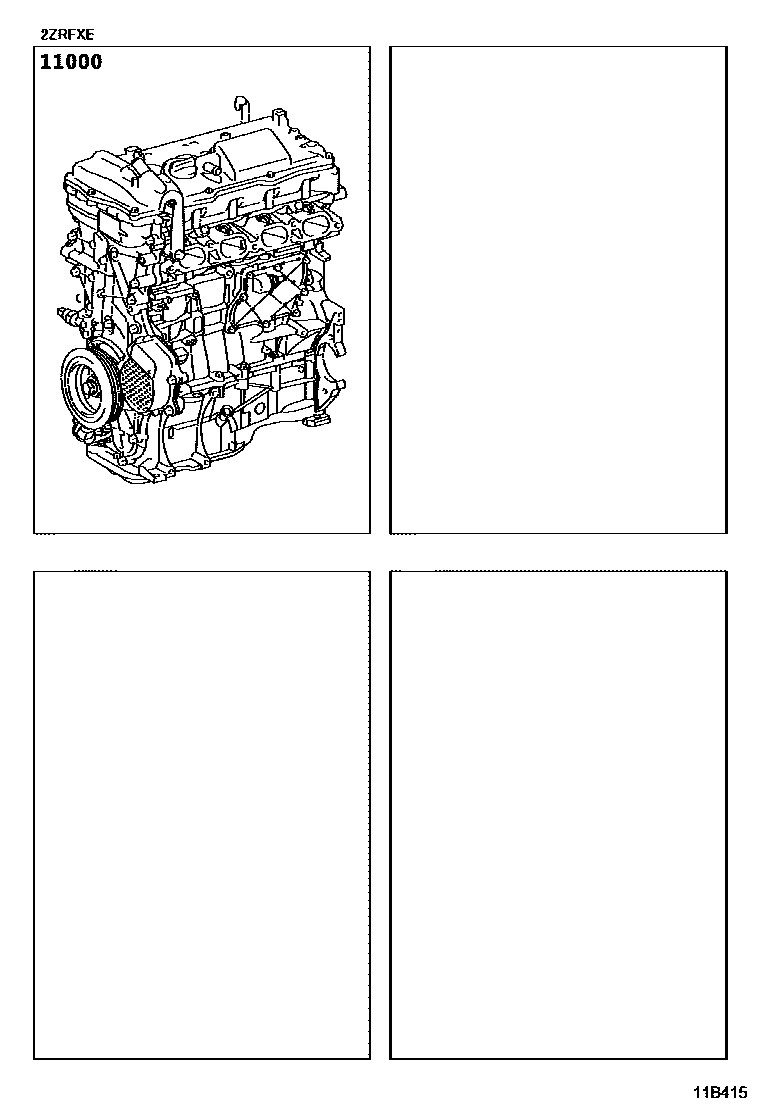

Parts diagram
11000ENGINE ASSY, PARTIAL
main19000-37840i201609-201904
sub16278-37021
sub16281-37071
sub16295-37021
sub25601-37050
main19000-37A60i202007-202110
sub16278-37021
sub16281-37071
sub16295-37021
sub25601-37050
main19000-37B60i202110
sub19000-37B50
main19000-37B10i202110
TAIWAN SPEC

1 parts on this diagram · 1 diagram in section
