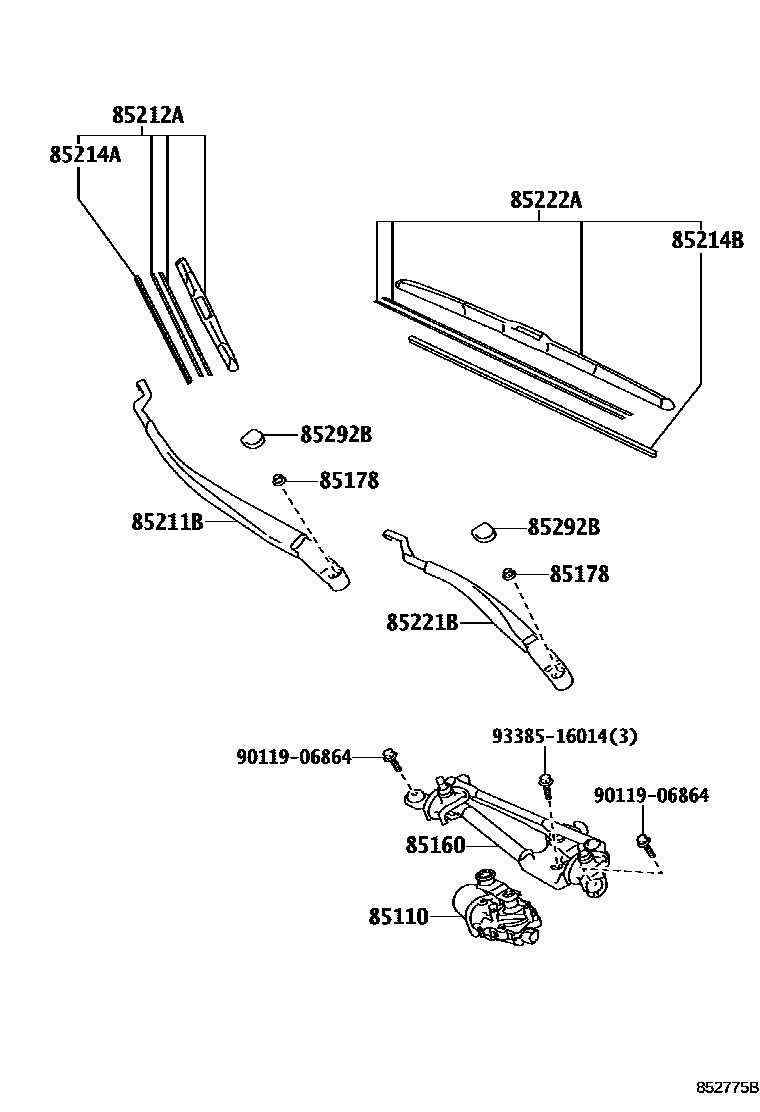

Toyota PRIUS C — WINDSHIELD WIPER

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-52680i201112-201412

main85110-52830i201506-201706

85160LINK ASSY, WINDSHIELD WIPER

main85150-52610i201112-201412

main85150-52611i201706

85178NUT (FOR FRONT WIPER ARM SETTING)

main90182-10006×2i201112-201412

85211BARM, FRONT WIPER, RH

main85211-52420i201112-201412

85212ABLADE, FR WIPER, RH

main85212-52220i201112-201412

85214ARUBBER, WIPER, RH

main85214-68030i201112-201412

85214BRUBBER, WIPER, LH

main85214-28080i201112-201412

85221BARM, FRONT WIPER, LH

main85221-52410i201112-201412

85222ABLADE, FR WIPER, LH

main85222-52270i201112-201412

85292BCAP, FRONT WIPER ARM HEAD

main85292-13010×2i201112-201412

9011906864

main90119-06864

9338516014

main93385-16014

12 parts on this diagram · 1 diagram in section

WINDSHIELD WIPER for Toyota PRIUS C

This section contains 12 genuine Toyota parts for the WINDSHIELD WIPER system of the Toyota PRIUS C. Key components include: MOTOR ASSY, WINDSHIELD WIPER, LINK ASSY, WINDSHIELD WIPER, NUT (FOR FRONT WIPER ARM SETTING), ARM, FRONT WIPER, RH, BLADE, FR WIPER, RH.
