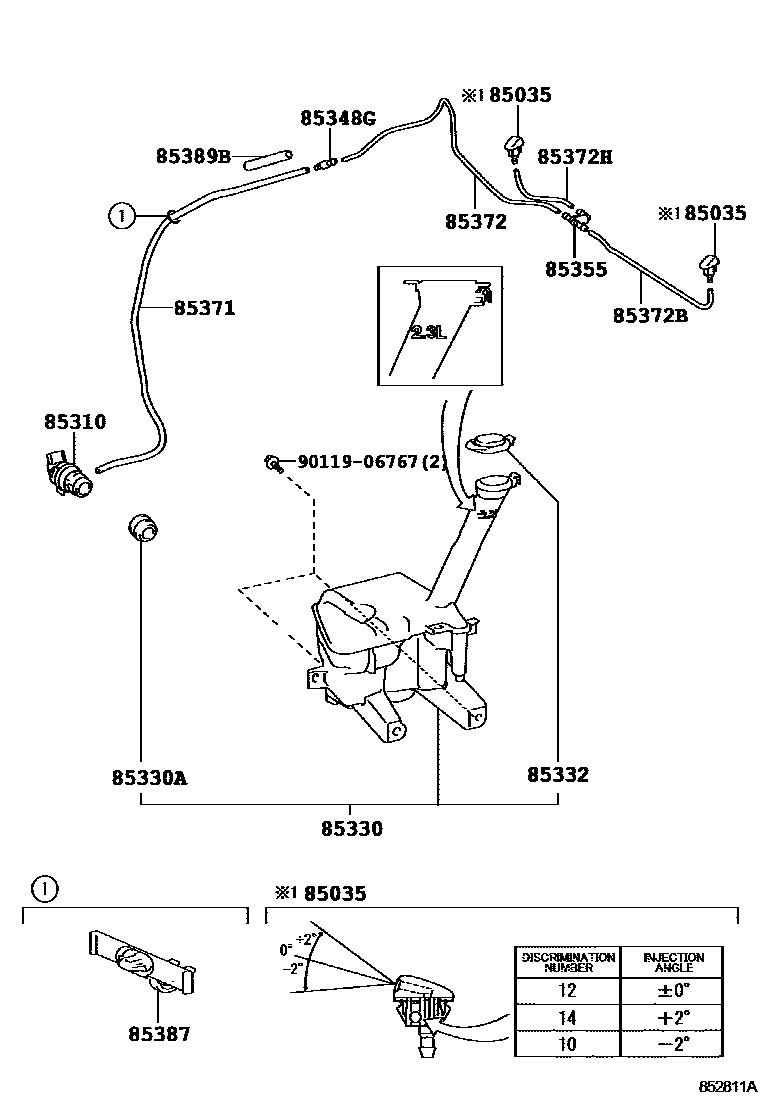

Toyota PRIUS C — WINDSHIELD WASHER

0001 12.3L TANK 0002 14.8L TANK

85035NOZZLE SUB-ASSY, WASHER

main85381-52430iNHP10201112-201706

ANGLE 0

main85381-52440iNHP10201112-201706

ANGLE -2

main85381-52450iNHP10201112-201706

ANGLE +2

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

main85330-60190iNHP10201112-201706

85330JAR ASSY, WINDSHIELD WASHER

main85315-52400iNHP10..R201112-201706

main85315-52440iNHP10..R201112-201706

COLD AREA SPEC

85330ABUSH, WINDSHIELD WASHER JAR

main85336-60300iNHP10201112-201706

85332CAP, WINDSHIELD WASHER JAR

main85316-16070iNHP10201112-201706

85348JOINT, WINDSHIELD WASHER HOSE, NO.1

main85375-10260iNHP10..R201112-201706

COLD AREA SPEC

85348GJOINT, WINDSHIELD WASHER HOSE, NO.2

main85349-89122iNHP10201112-201706

85355VALVE, WINDSHIELD WASHER HOSE

main85321-28020iNHP10201112-201706

85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main90099-33080iNHP10..R201706

L=1450(*H,L=810)

main90099-33080iNHP10..R201706

L=1450(*H,L=870)

main90099-33080iNHP10..R201706

L=1450(*H,L=870),COLD AREA SPEC

main90099-33080iNHP10..R201112-201706

L=1450(*H,L=780)

main90099-33080iNHP10..R201112-201706

L=1450(*H,L=840)

main90099-33080iNHP10..R201112-201706

L=1450(*H,L=840),COLD AREA SPEC

85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

main90099-33080iNHP10201112-201806

L=1450(*H,L=760)

main90099-33080iNHP10201806

L=1450(*H,L=740)

85372BHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2

main90099-33080iNHP10201112-201806

L=1450(*H,L=310)

main90099-33080iNHP10201806

L=1450(*H,L=300)

85372HHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.3

main90099-33080iNHP10201112-201706

L=1450(*H,L=200)

85387CLAMP NO.1 (FOR WINDSEIELD WASHER)

main82711-35750iNHP10201112-201706

85389BPROTECTOR, WINDSHIELD WASHER

main85389-74070iNHP10201112-201706

9011906767

main90119-06767

15 parts on this diagram · 2 diagrams in section
