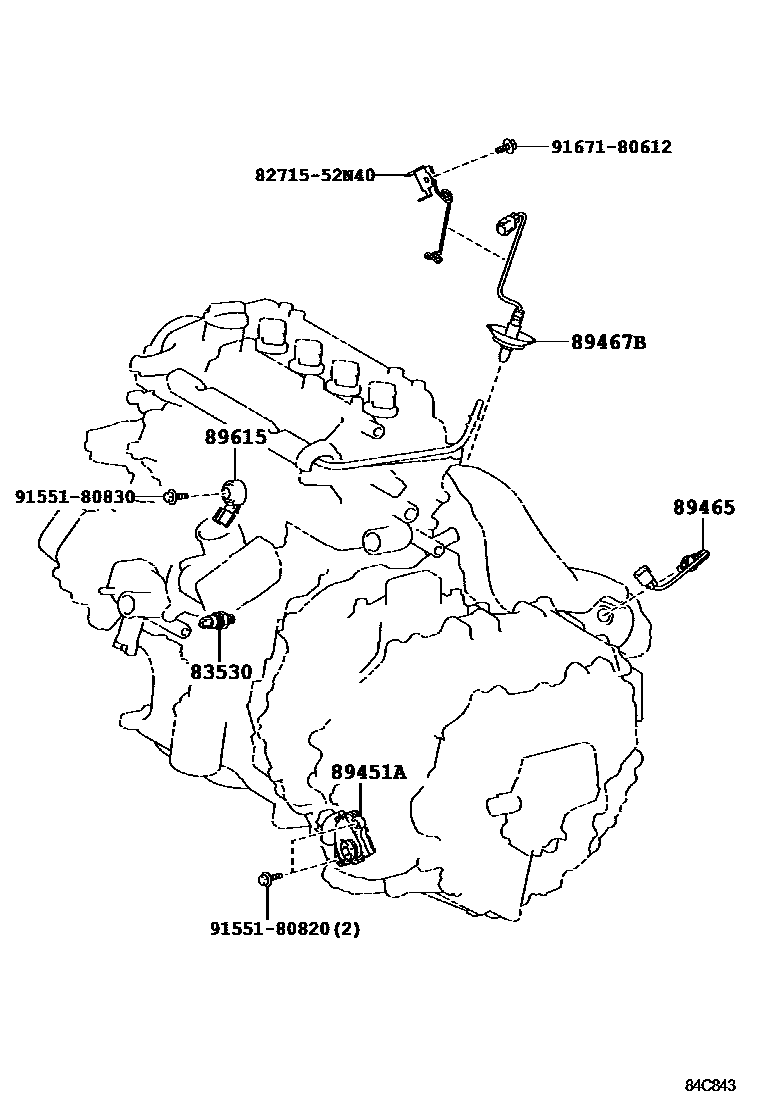

Toyota PRIUS C — SWITCH & RELAY & COMPUTER

0001 1ENGINE & TRANSMISSION 0002 1ENGINE ROOM 0003 1ENGINE ROOM RELAY BLOCK 0004 1COWL 0005 1INSTRUMENT PANEL 0006 1INSTRUMENT PANEL 0007 1STEERING 0008 1DOOR,ROOF,FLOOR & BACK DOOR

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-28020iNHP10201706

DENSO,*369

main83530-60020iNHP10201412-201706

YAZAKI,*369

89451ASENSOR, SHIFT LEVER POSITION

main89451-52040iNHP10201112-201412

89465SENSOR, OXYGEN

main89465-52670iNHP10201112-201412

89467BSENSOR, AIR FUEL RATIO

main89467-52080iNHP10201112-201412

89615SENSOR, KNOCK CONTROL

main89615-20090iNHP10201112-201412

8271552N40BRACKET,WIRING HARNESS CLAMP

main82715-52N40

9155180820

main91551-80820

9155180830

main91551-80830

9167180612

main91671-80612

9 parts on this diagram · 8 diagrams in section
