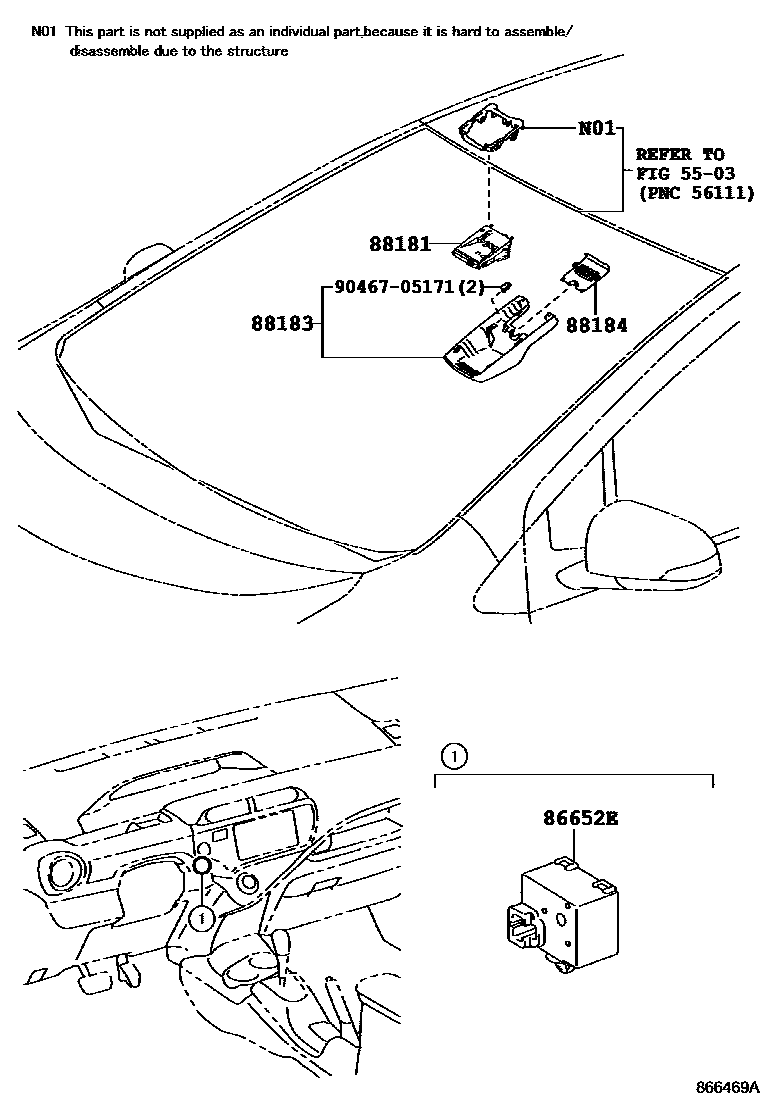

Toyota PRIUS C — PRE-COLLISION SYSTEM

0001 1 0002 1

5503

86652EBUZZER, PRE-COLLISION CITY

main86652-50010iNHP10..G201612-201706

NORTH AMERICA 4-2&TIRE & DISC WHEEL-175/65R15 5J ALL SEASON TIRE ALUMINUM

88181SENSOR, PRE-COLLISION CITY

main88181-0W030supersedes 88181-0W130iNHP10..G201612-201706

NORTH AMERICA 4-2&TIRE & DISC WHEEL-175/65R15 5J ALL SEASON TIRE ALUMINUM

sub88181-52160

main88181-52050iNHP10201708-201808

main88181-52110iNHP10..G201808-201907

USA POSSESSIONS SPEC

main88181-52150iNHP10..G,V201907-202008

USA POSSESSIONS SPEC

88183COVER, PRE-COLLISION CITY

main88183-52030iNHP10..G201612-201706

NORTH AMERICA 4-2&TIRE & DISC WHEEL-175/65R15 5J ALL SEASON TIRE ALUMINUM

main88183-52070iNHP10..G,V201706-202008

88184COVER, PRE-COLLISION CITY, 2ND

main88184-52030iNHP10..G201612-201706

NORTH AMERICA 4-2&TIRE & DISC WHEEL-175/65R15 5J ALL SEASON TIRE ALUMINUM

main88184-52070iNHP10..G,V201706-202008

9046705171

main90467-05171

6 parts on this diagram · 2 diagrams in section
