Toyota PRIUS C — MIRROR

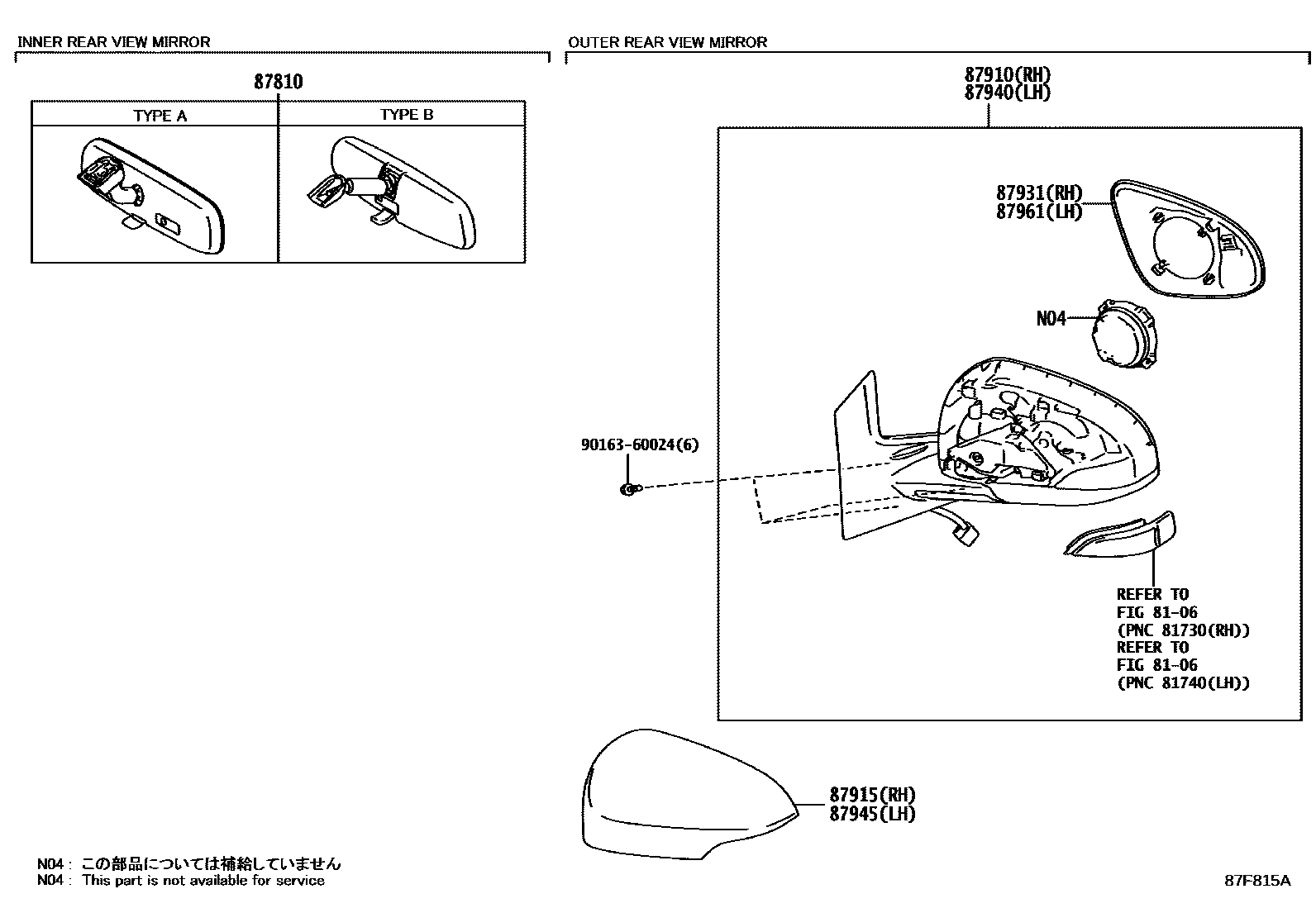

8106SIDE TURN SIGNAL LAMP & OUTER MIRROR LAMP
87810MIRROR ASSY, INNER REAR VIEW
TYPE A:REFER ILLUST.
TYPE B:REFER ILLUST.
87910MIRROR ASSY, OUTER REAR VIEW, RH
NO PAINT REQ.; NO PAINT REQ.,HAWAII SPEC&NORTH AMERICA 4-2
NO PAINT REQ.,CANADA SPEC&COLD AREA SPEC; NO PAINT REQ.,CANADA SPEC&NORTH AMERICA 4-2&COLD AREA SPEC; NO PAINT REQ.,KOREA SPEC&COLD AREA SPEC; NO PAINT REQ.,NORTH AMERICA 4-2
87915COVER, OUTER MIRROR, RH
WHITE PEARL CS.,070
SUPER WHITE 2,040
SILVER ME.,1F7
GRAY ME.,1G3
CEMENT GRAY ME.,1H5
BLACK MC.,209
SUPER RED 5,3P0
DK. BROWN M.M.,4U3
BEIGE,4U0
YELLOW,5A3
THERMO-TECT LIME GREEN,6W7
CLEAR EMERALD PEARL CS.,792
BLUE ME.,8T7
GRAYISH BLUE,8W2
SUPER WHITE 2,040
WHITE PEARL CS.,070
LIME WHITE PEARL CS.,082
HAWAII SPEC&NORTH AMERICA 4-2,SILVER ME.,1F7; SILVER ME.,1F7
GRAY ME.,1G3; HAWAII SPEC&NORTH AMERICA 4-2,GRAY ME.,1G3
BLACK MC.,209
SUPER RED 5,3P0
MANDARIN ORANGE M.M.,4V7
HAWAII SPEC&NORTH AMERICA 4-2,ORANGE PEARL CS.,4X3; ORANGE PEARL CS.,4X3
YELLOW,5A3
FRESH GREEN M.M.,588
AQUA M.M.,774
CLEAR EMERALD PEARL CS.,792; HAWAII SPEC&NORTH AMERICA 4-2,CLEAR EMERALD PEARL CS.,792
BLUE ME.,8T7
COOL SODA ME.,8V7
BEIGE,4U0; HAWAII SPEC&NORTH AMERICA 4-2,BEIGE,4U0
BODY COLOR = FLEX TONE(TRIM=25),BRONZE M.M.,082
BODY COLOR = FLEX TONE(TRIM=26),ORANGE ME.,1G3
87931OUTER MIRROR, RH
CANADA SPEC&COLD AREA SPEC; CANADA SPEC&NORTH AMERICA 4&COLD AREA SPEC; CANADA SPEC&NORTH AMERICA 4-2&COLD AREA SPEC; NORTH AMERICA 4; NORTH AMERICA 4-2
87940MIRROR ASSY, OUTER REAR VIEW, LH
NO PAINT REQ.; NO PAINT REQ.,HAWAII SPEC&NORTH AMERICA 4-2
NO PAINT REQ.,CANADA SPEC&COLD AREA SPEC; NO PAINT REQ.,CANADA SPEC&NORTH AMERICA 4&COLD AREA SPEC; NO PAINT REQ.,CANADA SPEC&NORTH AMERICA 4-2&COLD AREA SPEC; NO PAINT REQ.,NORTH AMERICA 4; NO PAINT REQ.,NORTH AMERICA 4-2
NO PAINT REQ.,KOREA SPEC&COLD AREA SPEC
CANADA SPEC&COLD AREA SPEC; OUTSIDE REAR VIEW MIRROR-*AREM(COLORED&*CR) & *HEA
87945COVER, OUTER MIRROR, LH
WHITE PEARL CS.,070
SUPER WHITE 2,040
SILVER ME.,1F7
GRAY ME.,1G3
CEMENT GRAY ME.,1H5
BLACK MC.,209
SUPER RED 5,3P0
DK. BROWN M.M.,4U3
BEIGE,4U0
YELLOW,5A3
THERMO-TECT LIME GREEN,6W7
CLEAR EMERALD PEARL CS.,792
BLUE ME.,8T7
GRAYISH BLUE,8W2
SUPER WHITE 2,040
WHITE PEARL CS.,070
LIME WHITE PEARL CS.,082
HAWAII SPEC&NORTH AMERICA 4-2,SILVER ME.,1F7; SILVER ME.,1F7
GRAY ME.,1G3; HAWAII SPEC&NORTH AMERICA 4-2,GRAY ME.,1G3
BLACK MC.,209; HAWAII SPEC&NORTH AMERICA 4-2,BLACK MC.,209
SUPER RED 5,3P0
MANDARIN ORANGE M.M.,4V7
HAWAII SPEC&NORTH AMERICA 4-2,ORANGE PEARL CS.,4X3; ORANGE PEARL CS.,4X3
HAWAII SPEC&NORTH AMERICA 4-2,YELLOW,5A3; YELLOW,5A3
FRESH GREEN M.M,588; HAWAII SPEC&NORTH AMERICA 4-2,FRESH GREEN M.M,588
AQUA M.M.,774
CLEAR EMERALD PEARL CS.,792; HAWAII SPEC&NORTH AMERICA 4-2,CLEAR EMERALD PEARL CS.,792
BLUE ME.,8T7; HAWAII SPEC&NORTH AMERICA 4-2,BLUE ME.,8T7
COOL SODA ME.,8V7
BEIGE,4U0; HAWAII SPEC&NORTH AMERICA 4-2,BEIGE,4U0
BODY COLOR = FLEX TONE(TRIM=25),BRONZE M.M.,082
BODY COLOR = FLEX TONE(TRIM=26),ORANGE ME.,1G3
87961MIRROR OUTER, LH
HAWAII SPEC&NORTH AMERICA 4-2
CANADA SPEC&COLD AREA SPEC; CANADA SPEC&NORTH AMERICA 4-2&COLD AREA SPEC; NORTH AMERICA 4-2
KOREA SPEC&COLD AREA SPEC
CANADA SPEC&COLD AREA SPEC; OUTSIDE REAR VIEW MIRROR-*AREM(COLORED&*CR) & *HEA
9016360024
main90163-60024
9 parts on this diagram · 3 diagrams in section
MIRROR for Toyota PRIUS C
This section contains 11 genuine Toyota parts for the MIRROR system of the Toyota PRIUS C. Key components include: SIDE TURN SIGNAL LAMP & OUTER MIRROR LAMP, MIRROR ASSY, INNER REAR VIEW, MIRROR ASSY, OUTER REAR VIEW, RH, COVER, OUTER MIRROR, RH, COVER, OUTER MIRROR, RH NO.2.
