Toyota PRIUS C — FUEL INJECTION SYSTEM

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

22030BODY ASSY, THROTTLE W/THROTTLE POSITION SENSOR

main22030-47040i201112-201412

22271GASKET, THROTTLE BODY

main22271-21070i201112-201412

23250INJECTOR ASSY, FUEL

main23209-21090×4i201112-201210

MARK=23209-21090

main23209-21091×4i201210-201412

MARK=23209-21091

23250BRING, O(FOR FUEL INJECTOR)

main90301-07037×4i201112-201412

23291INSULATOR, INJECTOR VIBRATION

main23291-23010×4i201112-201412

23814BPIPE, FUEL DELIVERY

main23814-21072i201112-201202

main23814-21073i201202-201412

23841BCLAMP, FUEL PIPE, NO.1(FOR EFI)

main23841-21050×2i201112-201412

23891SPACER, FUEL DELIVERY

main23891-21010×2i201112-201412

23901TUBE SUB-ASSY, FUEL

main23901-21230i201112-201412

7701FUEL TANK & TUBE

→ Go to FIG 77-01

9155180625

main91551-80625

9155180840

main91551-80840

9167180614

main91671-80614

14 parts on this diagram · 1 diagram in section

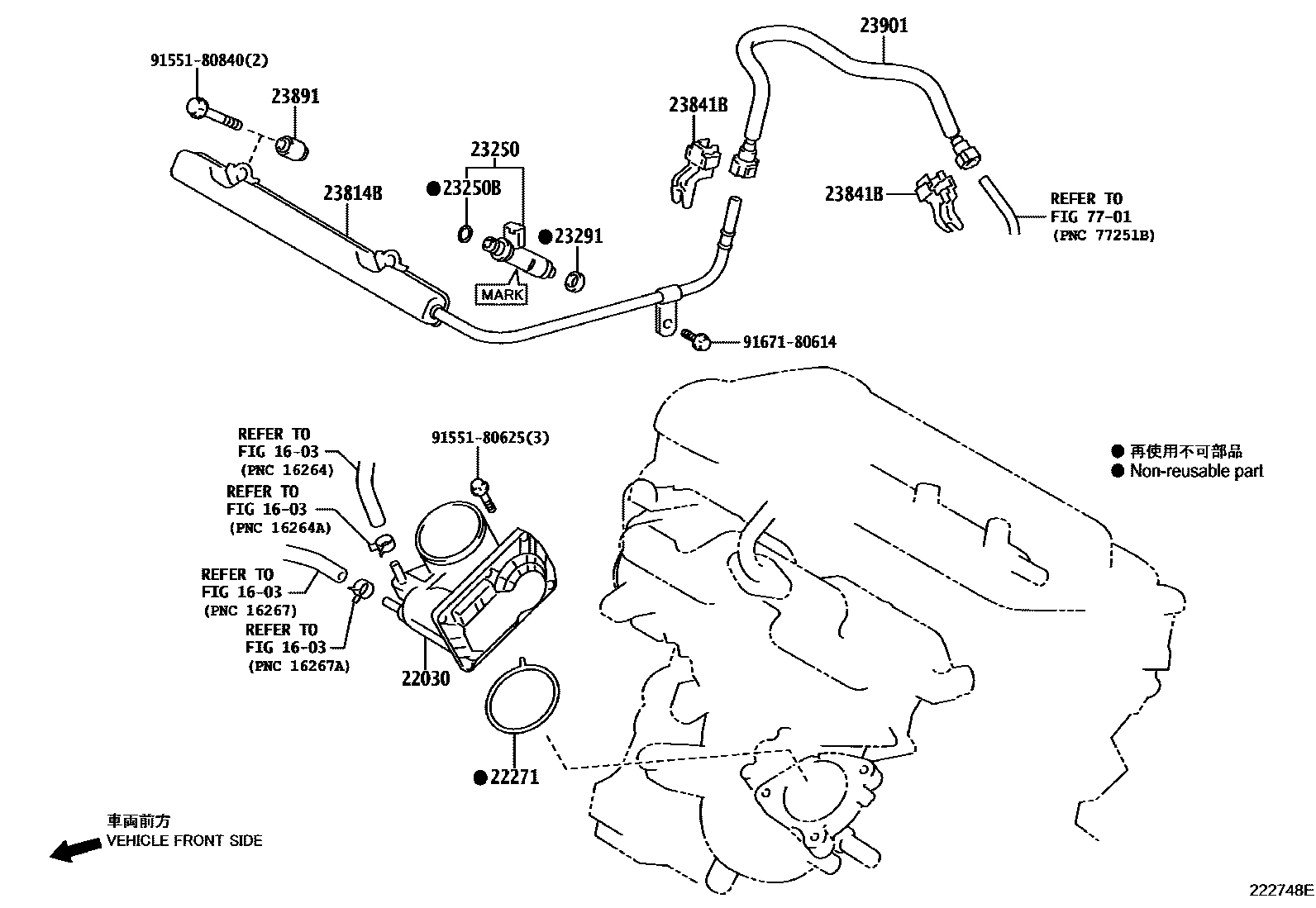

FUEL INJECTION SYSTEM for Toyota PRIUS C

This section contains 14 genuine Toyota parts for the FUEL INJECTION SYSTEM system of the Toyota PRIUS C. Key components include: RADIATOR & WATER OUTLET, BODY ASSY, THROTTLE W/THROTTLE POSITION SENSOR, GASKET, THROTTLE BODY, INJECTOR ASSY, FUEL, RING, O(FOR FUEL INJECTOR).
