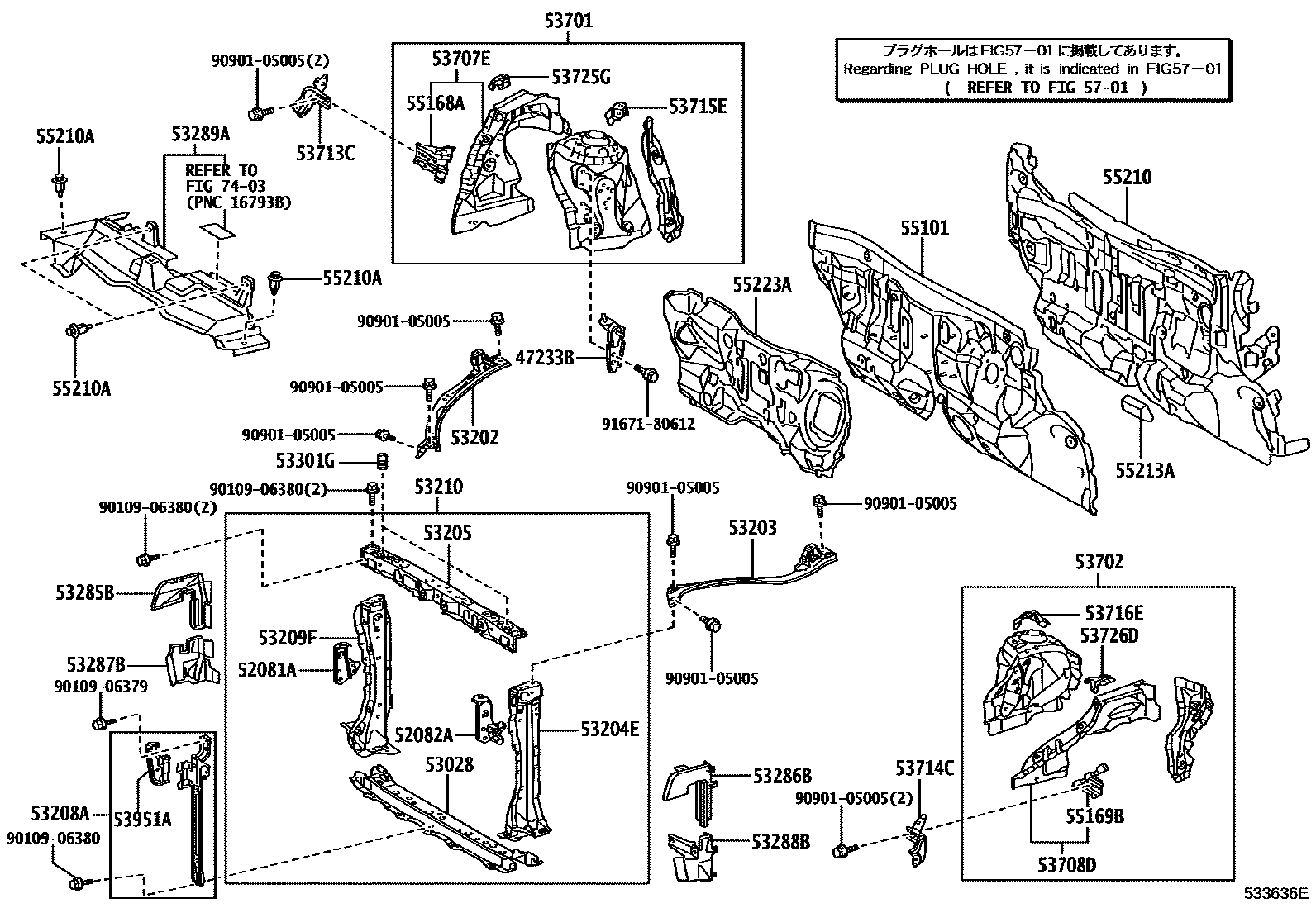

Toyota PRIUS C — FRONT FENDER APRON & DASH PANEL

47233BBRACKET, RESERVOIR TANK, NO.1

main47233-52040iNHP10201112-201706

52081ASTAY SUB-ASSY, FRONT BUMPER, RH

main52081-52010iNHP10201112-201706

main52081-52020iNHP10201706

52082ASTAY SUB-ASSY, FRONT BUMPER, LH

main52082-52010iNHP10201112-201706

main52082-52030iNHP10201706

53028SUPPORT SUB-ASSY, RADIATOR, LOWER

main53028-52091iNHP10201112-201706

53202SUPPORT SUB-ASSY, RADIATOR, RH

main53202-52230iNHP10201112-201706

main53202-52270iNHP10201706

53203SUPPORT SUB-ASSY, RADIATOR, LH

main53203-52220iNHP10201112-201706

main53203-52260iNHP10201706

53204EBRACE SUB-ASSY, RADIATOR SUPPORT TO CROSSMEMBER, LH

main53204-52010iNHP10201112-201501

main53204-52040iNHP10201502-201706

53205SUPPORT SUB-ASSY, RADIATOR, UPPER

main53205-52160iNHP10201112-201706

53208ASUPPORT SUB-ASSY, HOOD LOCK

main53208-52901iNHP10201112-201706

main53208-52906iNHP10201706

53209FBRACE SUB-ASSY, RADIATOR SUPPORT TO CROSSMEMBER, RH

main53209-52010iNHP10201112-201706

53210SUPPORT ASSY, RADIATOR

main53210-52913iNHP10201112-201501

main53210-52917iNHP10201501-201706

main53210-52919iNHP10201706

53285BSEAL, RADIATOR SIDE AIR, NO.1

main53285-52410iNHP10201112-201412

main53285-52530iNHP10201412-201706

main53285-52540iNHP10..R201706

main53285-52550iNHP10..G201706-202008

53286BSEAL, RADIATOR SIDE AIR, NO.2

main53286-52330iNHP10201112-201412

main53286-52450iNHP10201412-201706

main53286-52460iNHP10..R201706

main53286-52470iNHP10..G201706-202008

53287BEXTENSION, RADIATOR SUPPORT, RH

main53287-52170iNHP10201112-201412

main53287-52280iNHP10201412-201706

main53287-52290iNHP10..R201706

main53287-52300iNHP10..V201706-202008

53288BEXTENSION, RADIATOR SUPPORT, LH

main53288-52170iNHP10201112-201412

main53288-52280iNHP10201412-201706

main53288-52290iNHP10..R201706

main53288-52300iNHP10..V201706-202008

53289ACOVER, RADIATOR SUPPORT OPENING

main53289-52080iNHP10201112-201412

main53289-52110iNHP10201412-201706

main53289-52130iNHP10201706

53301GCUSHION, HOOD BUMPER

main90541-15111iNHP10201112-202106

53701APRON SUB-ASSY, FRONT FENDER, RH

main53701-52200iNHP10201112-201706

53702APRON SUB-ASSY, FRONT FENDER, LH

main53702-52200iNHP10201112-201706

53707EAPRON SUB-ASSY, FENDER SIDE, RH

main53707-52060iNHP10201112-201706

53708DAPRON SUB-ASSY, FENDER SIDE, LH

main53708-52060iNHP10201112-201706

53713CEXTENSION, FRONT FENDER APRON, FRONT RH

main53713-52090iNHP10201112-201706

main53713-52110iNHP10201706

53714CEXTENSION, FRONT FENDER APRON, FRONT LH

main53714-52110iNHP10201112-201706

main53714-52140iNHP10201706

53715EEXTENSION, FRONT FENDER APRON, REAR RH

main53715-52030iNHP10201112-201706

53716EEXTENSION, FRONT FENDER APRON, REAR LH

main53716-52030iNHP10201112-201706

53725GAPRON, FRONT FENDER NO.2 SIDE, RH

main53725-52010iNHP10201112-201706

53726DAPRON, FRONT FENDER NO.2 SIDE, LH

main53726-52010iNHP10201112-201706

53951ASUPPORT, FRONT END PANEL, UPPER

main53951-52020iNHP10201112-201706

main53951-52040iNHP10201706

55101PANEL SUB-ASSY, DASH

main55101-52500iNHP10201112-201706

55168ABRACKET, FRONT FENDER MOUNTING, RH

main55168-52130iNHP10201112-201706

55169BBRACKET, FRONT FENDER MOUNTING, LH

main55169-52130iNHP10201112-201706

55210INSULATOR ASSY, DASH PANEL

main55210-52340iNHP10201112-201311

main55210-52341iNHP10201312-201706

55210ACLIP

main90467-07214iNHP10201112-201706

55213APAD, DASH PANEL SILENCER

main55213-52190iNHP10201112-201706

55223AINSULATOR, DASH PANEL, OUTER

main55223-52130iNHP10201112-201706

5701HOLE PLUG

→ Go to FIG 57-01

7403CAUTION PLATE (EXTERIOR & INTERIOR)

→ Go to FIG 74-03

9010906379

main90109-06379

9010906380

main90109-06380

9090105005

main90901-05005

9167180612

main91671-80612

41 parts on this diagram · 1 diagram in section
