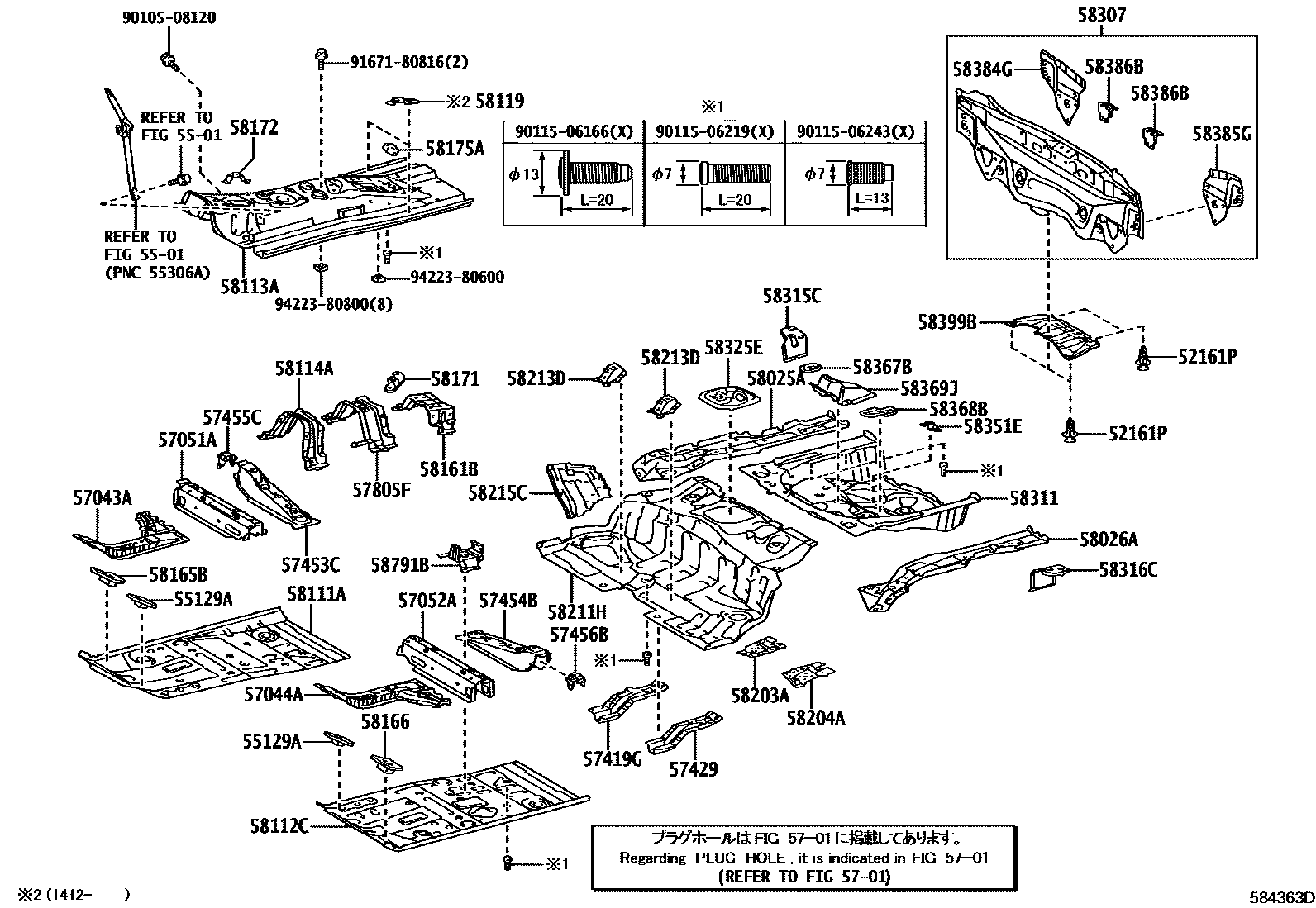

Toyota PRIUS C — FLOOR PAN & LOWER BACK PANEL
52161PPIECE, REAR BUMPER
sub52161-0K040
5501
5701
57043AREINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, REAR RH
57044AREINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, REAR LH
57051AMEMBER SUB-ASSY, FRONT FLOOR CROSS, RH
57052AMEMBER SUB-ASSY, FRONT FLOOR CROSS, LH
57419GREINFORCEMENT, FRONT FLOOR UNDER, REAR RH
57429REINFORCEMENT, FRONT FLOOR UNDER, REAR LH
57453CMEMBER, FRONT FLOOR CROSS SIDE, RH
57454BMEMBER, FRONT FLOOR CROSS SIDE, LH
57455CBRACKET, FRONT SEAT MOUNTING, OUTSIDE RH
57456BBRACKET, FRONT SEAT MOUNTING, OUTSIDE LH
57805FREINFORCEMENT SUB-ASSY, BELT ANCHOR, NO.1
58025APANEL SUB-ASSY, FLOOR SIDE RAIL, FR RH
58026APANEL SUB-ASSY, FLOOR SIDE RAIL, FR LH
58111APAN, FRONT FLOOR, RH
58112CPAN, FRONT FLOOR, LH
58113APANEL, FRONT FLOOR, CENTER
58114AREINFORCEMENT, FRONT FLOOR PANEL
58119PLATE, FRONT FLOOR SIDE, FRONT
58161BREINFORCEMENT, BELT ANCHOR TO FLOOR PAN
58165BCOVER, FRONT FLOOR, RH
58166COVER, FRONT FLOOR, LH
58171REINFORCEMENT, PARKING BRAKE BASE
58172BRACKET, COMPUTER MOUNTING, NO.3
58175AREINFORCEMENT, PARKING BRAKE BASE, NO.1
58203AREINFORCEMENT SUB-ASSY, CENTER FLOOR PANEL, RH
58204AREINFORCEMENT SUB-ASSY, CENTER FLOOR PANEL, LH
58211HPAN, CENTER FLOOR
58213DREINFORCEMENT, CENTER FLOOR PANEL
58215CREINFORCEMENT, CENTER FLOOR PANEL, NO.2 RH
58307PANEL SUB-ASSY, BODY LOWER BACK
TYPE A:REFER ILLUST.
58315CEXTENSION, REAR FLOOR SIDE PANEL, RH
58316CEXTENSION, REAR FLOOR SIDE PANEL, LH
58325ECOVER, REAR FLOOR SERVICE HOLE
58351EBRACKET, SPARE WHEEL CLAMP
58367BBRACKET, FUEL TUBE
58368BBRACKET, FUEL TUBE, NO.2
58369JBRACKET, REAR FLOOR BRACE
58384GGUSSET, LOWER BACK, UPPER RH
58385GGUSSET, LOWER BACK, UPPER LH
58386BBRACKET, REAR BUMPER COVER, NO.2
58399BCOVER, FLOOR UNDER, NO.2
58791BCARRIER, JACK
9010508120
main90105-08120
9011506166
main90115-06166
9011506219
main90115-06219
9011506243
main90115-06243
9167180816
main91671-80816
9422380600
main94223-80600
9422380800
main94223-80800
54 parts on this diagram · 2 diagrams in section
