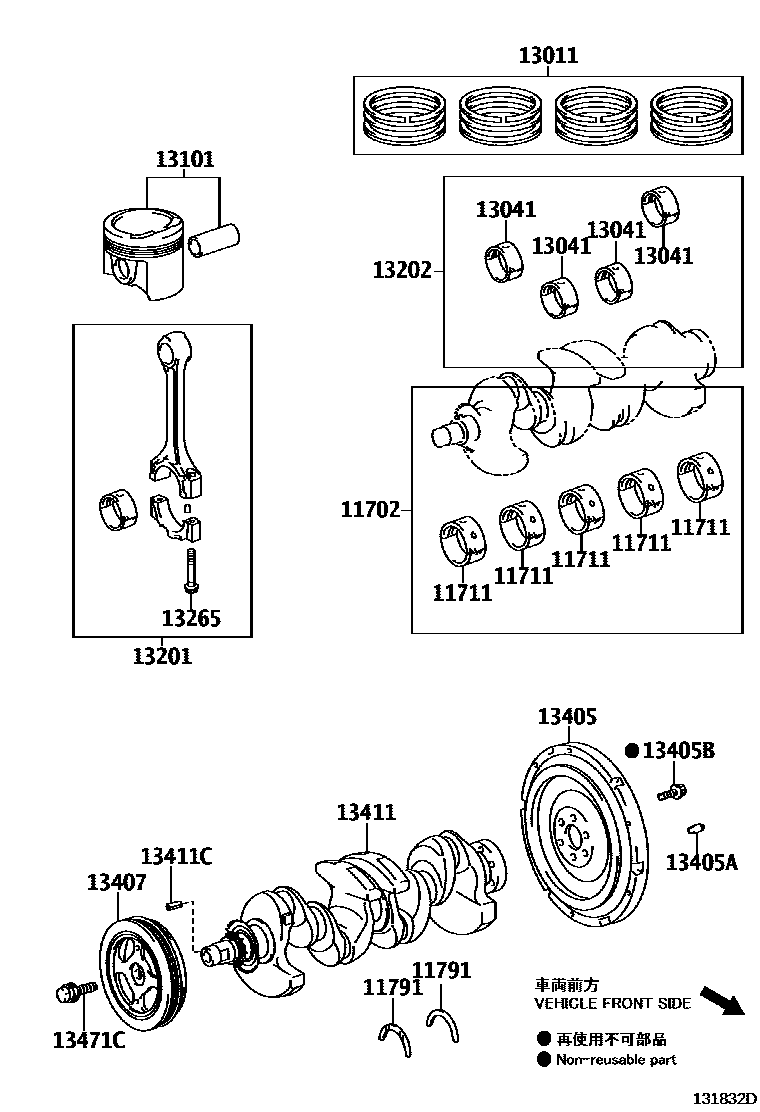

Toyota PRIUS C — CRANKSHAFT & PISTON

11702BEARING SET, CRANKSHAFT

main11704-21031i201112-201308

U/S 0.25

main11704-21032i201308-201401

U/S 0.25

main11704-21033i201706

U/S 0.25

11711BEARING, CRANKSHAFT

main11701-21031-01×5i201112-201308

MARK1,REFER REPAIR MANUAL

main11701-21031-02×5i201112-201308

MARK2,REFER REPAIR MANUAL

main11701-21031-03×5i201112-201308

MARK3,REFER REPAIR MANUAL

main11701-21031-04×5i201112-201308

MARK4,REFER REPAIR MANUAL

main11701-21032-01×5i201308-201312

MARK 1,REFER REPAIR MANUAL

main11701-21032-02×5i201308-201312

MARK 2,REFER REPAIR MANUAL

main11701-21032-03×5i201308-201312

MAKR 3,REFER REPAIR MANUAL

main11701-21032-04×5i201308-201312

MARK 4,REFER REPAIR MANUAL

main11701-21033-01×5i201412-201706

MARK 1,REFER REPAIR MANUAL

main11701-21033-02×5i201412-201706

MARK 2,REFER REPAIR MANUAL

main11701-21033-03×5i201706

MARK 3,REFER REPAIR MANUAL

main11701-21033-04×5i201412-201706

MARK 4,REFER REPAIR MANUAL

11791WASHER, CRANKSHAFT THRUST, UPPER

main11791-22020×2i201112-201310

STD

main11791-37010×2i201706

STD

main11792-22020×2i201112-201310

O/S 0.125

main11792-37010×2i201706

O/S 0.125

main11793-22020×2i201112-201310

O/S 0.25

main11793-37010×2i201412-201706

O/S 0.25

13011RING SET, PISTON

main13011-21110i201112-201311

STD

main13011-21111i201311-201412

STD

13041BEARING, CONNECTING ROD

main13041-21022-01×4i201112-201308

MARK1,REFER REPAIR MANUAL

main13041-21022-02×4i201112-201308

MARK2,REFER REPAIR MANUAL

main13041-21022-03×4i201112-201308

MARK3,REFER REPAIR MANUAL

main13041-21033-01×4i201308-201412

MARK 1,REFER REPAIR MANUAL

main13041-21033-02×4i201308-201412

MARK 2,REFER REPAIR MANUAL

main13041-21033-03×4i201412-201706

MARK 3,REFER REPAIR MANUAL

13101PISTON SUB-ASSY, W/PIN

main13101-21130×4i201112-201412

STD

13201ROD SUB-ASSY, CONNECTING

main13201-29735×4i201112-201308

main13201-29736×4i201308-201401

main13201-29737×4i201401-201412

main13201-29757×4i201704-201706

13202BEARING SET, CONNECTING ROD

main13204-21022i201112-201308

U/S 0.25

main13204-21033i201308-201412

U/S 0.25

13265BOLT, CONNECTING ROD

main13265-21020×8i201112-201412

13405FLYWHEEL SUB-ASSY

main13451-21081i201412-201706

13405APIN, STRAIGHT(FOR FLYWHEEL)

main90250-08120×3i201112-201412

L=18,OD=8

13405BBOLT, FLYWHEEL SETTING

main90105-10048×6i201112-201412

13407DAMPER SUB-ASSY, CRANKSHAFT

main13407-21070i201112-201412

13411CRANKSHAFT

main13401-21020i201112-201412

13411CPIN, STRAIGHT(FOR CRANKSHAFT)

main90250-03095i201706

main90254-03025i201112-201412

13471CBOLT(FOR CRANKSHAFT PULLEY SET)

main90119-12345i201706

16 parts on this diagram · 1 diagram in section

CRANKSHAFT & PISTON for Toyota PRIUS C

This section contains 16 genuine Toyota parts for the CRANKSHAFT & PISTON system of the Toyota PRIUS C. Key components include: BEARING SET, CRANKSHAFT, BEARING, CRANKSHAFT, WASHER, CRANKSHAFT THRUST, UPPER, RING SET, PISTON, BEARING, CONNECTING ROD.
