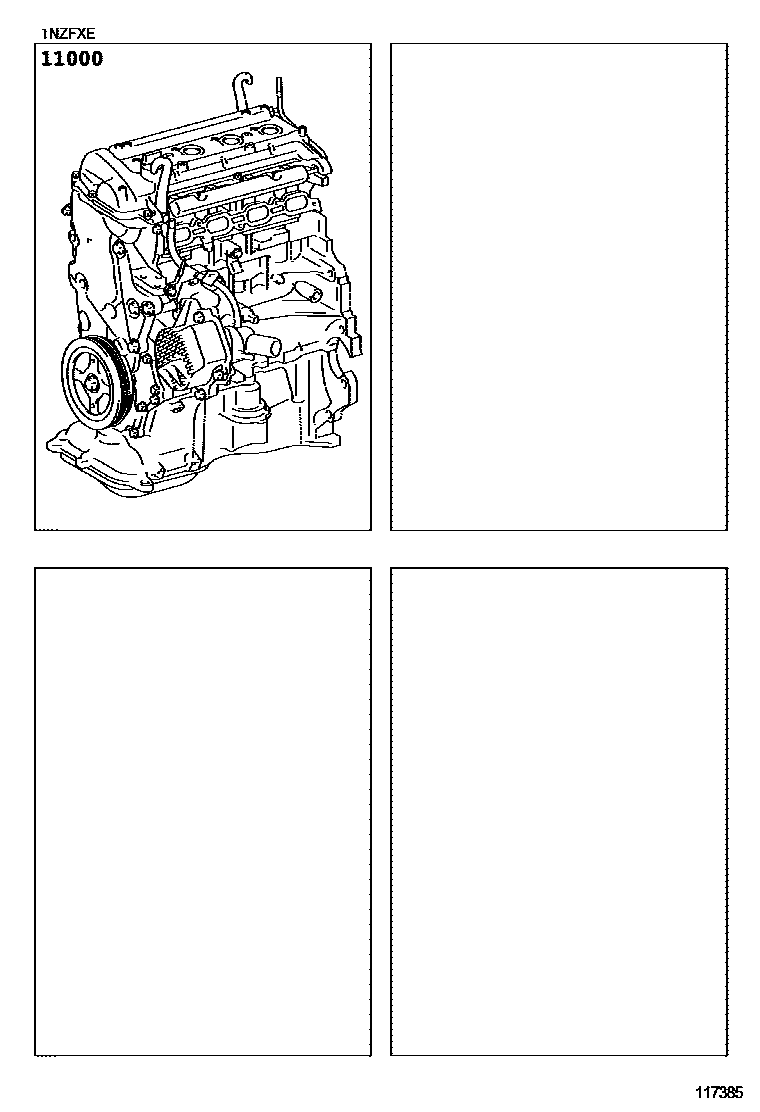

Toyota PRIUS C — PARTIAL ENGINE ASSEMBLY

11000ENGINE ASSY, PARTIAL

main19000-21D00i1NZFXE..NHP10201112-201306

REFER11-05:PNC 11452

sub11452-21040

main19000-21D01i1NZFXE..NHP10201306-201412

REFER11-05:PNC 11452

main19000-21D81i1NZFXE..NHP10..RHD..GEN201312-201401

HONG KONG SPEC

sub11296-21130

main19000-21D82i1NZFXE..NHP10..RHD..GEN201412-201706

HONG KONG SPEC

1 parts on this diagram · 1 diagram in section
