Toyota PRIUS C — MOUNTING
12305INSULATOR SUB-ASSY, ENGINE MOUNTING, RH
12315ABRACKET, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE)
12321BINSULATOR SUB-ASSY, DRIVE SHAFT HEAT
12325ABRACKET, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)
12363AROD, ENGINE MOVING CONTROL
12364AROD, ENGINE LATERAL CONTROL
12372AINSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)
43497BBRACKET, DRIVE SHAFT HEAT INSULATOR
9010510444
main90105-10444
9010510469
main90105-10469
9010510494
main90105-10494
9010510550
main90105-10550
9010514178
main90105-14178
9011610230
main90116-10230
9011910866
main90119-10866
9011914139
main90119-14139
9012608037
main90126-08037
9017810028
main90178-10028
9017810029
main90178-10029
9017908256
main90179-08256
91552K1025
main91552-K1025
91651B0820
main91651-B0820
9167180820
main91671-80820
9415121041
main94151-21041

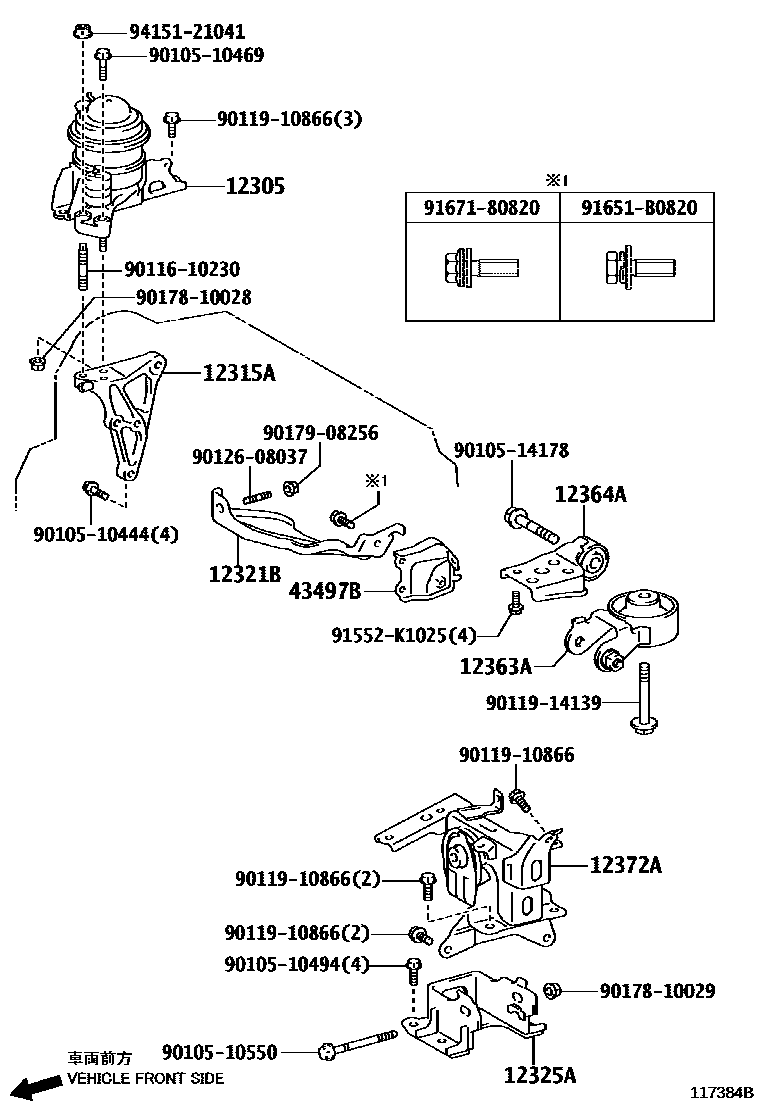

24 parts on this diagram · 1 diagram in section
MOUNTING for Toyota PRIUS C
This section contains 24 genuine Toyota parts for the MOUNTING system of the Toyota PRIUS C. Key components include: INSULATOR SUB-ASSY, ENGINE MOUNTING, RH, BRACKET, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE), INSULATOR SUB-ASSY, DRIVE SHAFT HEAT, BRACKET, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE), ROD, ENGINE MOVING CONTROL.
