Toyota PRIUS C — MIRROR

8106SIDE TURN SIGNAL LAMP & OUTER MIRROR LAMP

→ Go to FIG 81-06

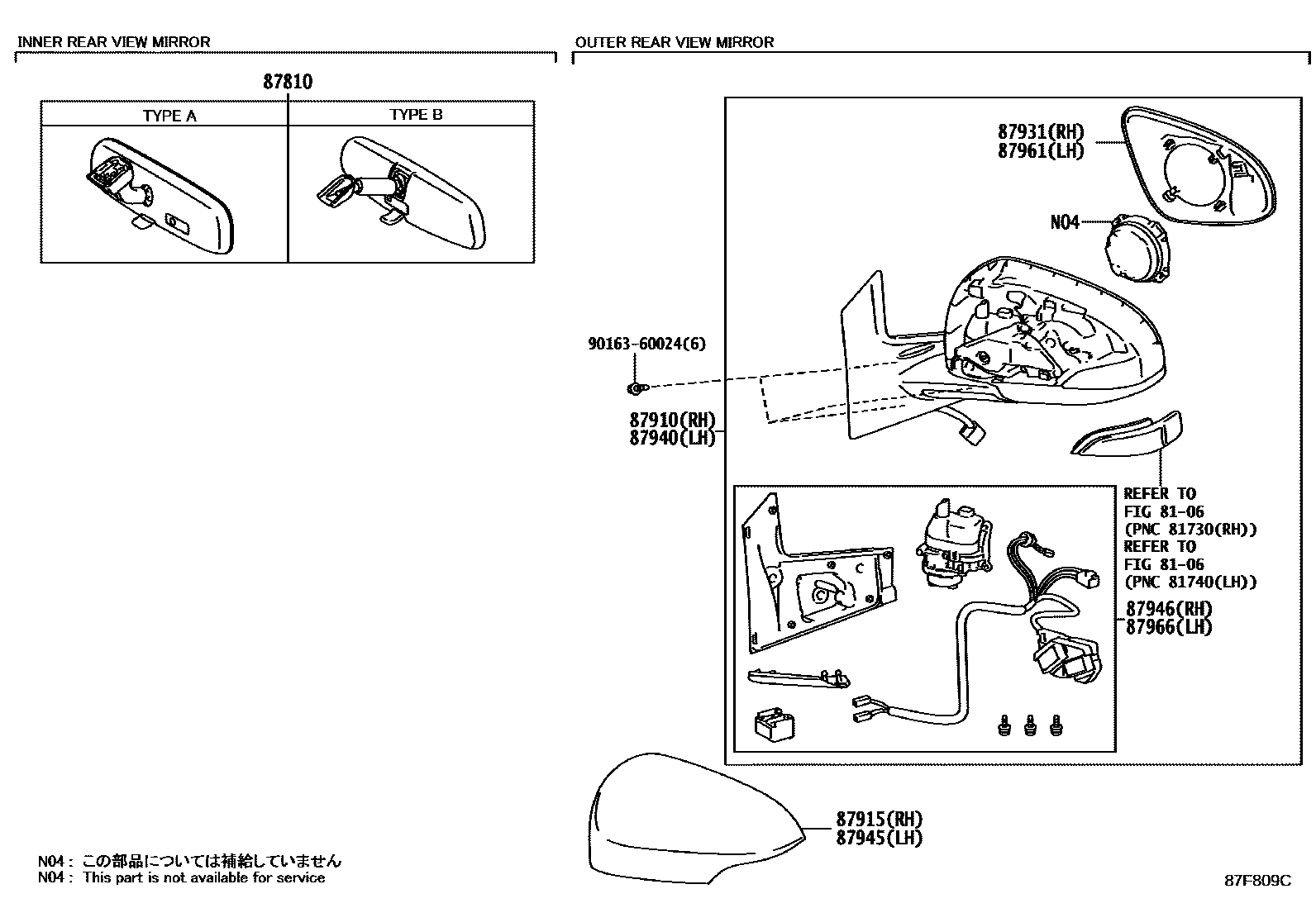

87810MIRROR ASSY, INNER REAR VIEW

main87810-52041i201706

main87810-AA011i201112-201412

TYPE B:REFER ILLUST.

87910MIRROR ASSY, OUTER REAR VIEW, RH

main87910-52D70supersedes 87910-52E30i201112-201412

NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-ELECTRIC RETRACTABLE(COLORED)

main87910-52E00supersedes 87910-52D80i201412-201706

NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-ELECTRIC RETRACTABLE(COLORED)

87915COVER, OUTER MIRROR, RH

main87915-52170-A0i201412-201706

SUPER WHITE 2,040

main87915-52170-A1i201808

WHITE PEARL CS.,070

main87915-52170-A2i201706-201808

LIME WHITE PEARL CS.,082

main87915-52170-B0i201706

SILVER ME.,1F7

main87915-52170-B1i201706-202008

GRAY ME.,1G3

main87915-52170-B4i202008

CEMENT GRAY ME.,1H5

main87915-52170-C0i201112-201412

BLACK MC.,209

main87915-52170-D1i201112-201412

SUPER RED 5,3P0

main87915-52170-E2i201112-201412

MANDARIN ORANGE M.M.,4V7

main87915-52170-E6i201706-201907

ORANGE PEARL CS.,4X3

main87915-52170-F0i201412-201706

YELLOW,5A3

main87915-52170-F1i201706-201907

FRESH GREEN M.M,588

main87915-52170-G1i201907

THERMO-TECT LIME GREEN,6W7

main87915-52170-H0i201112-201412

AQUA M.M.,774

main87915-52170-H1i201706

CLEAR EMERALD PEARL CS.,792

main87915-52170-J1i201112-201412

BLUE ME.,8T7

main87915-52170-J2i201412-201706

COOL SODA ME.,8V7

main87915-52170-J4i201907

GRAYISH BLUE,8W2

main87915-52170-L0i201706

BEIGE,4U0

main87915-52170-L3i202008

DK. BROWN M.M.,4U3

87931OUTER MIRROR, RH

main87931-52D70i201112-201412

87940MIRROR ASSY, OUTER REAR VIEW, LH

main87940-52D50supersedes 87940-52E10i201412-201706

NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-ELECTRIC RETRACTABLE(COLORED)

main87940-52D80supersedes 87940-52D60i201706

NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-ELECTRIC RETRACTABLE(COLORED)

87945COVER, OUTER MIRROR, LH

main87945-52170-A0i201112-201412

SUPER WHITE 2,040

main87945-52170-A1i201808

WHITE PEARL CS.,070

main87945-52170-A2i201112-201412

LIME WHITE PEARL CS.,082

main87945-52170-B0i201412-201706

SILVER ME.,1F7

main87945-52170-B1i201706-202008

GRAY ME.,1G3

main87945-52170-B4i202008

CEMENT GRAY ME.,1H5

main87945-52170-C0i201112-201412

BLACK MC.,209

main87945-52170-D1i201706

SUPER RED 5,3P0

main87945-52170-E2i201112-201412

MANDARIN ORANGE M.M.,4V7

main87945-52170-E6i201412-201706

ORANGE PEARL CS.,4X3

main87945-52170-F0i201412-201706

YELLOW,5A3

main87945-52170-F1i201412-201706

FRESH GREEN M.M.,588

main87945-52170-G1i201907

THERMO-TECT LIME GREEN,6W7

main87945-52170-H0i201112-201412

AQUA M.M.,774

main87945-52170-H1i201706

CLEAR EMERALD PEARL CS.,792

main87945-52170-J1i201706

BLUE ME.,8T7

main87945-52170-J2i201412-201706

COOL SODA ME.,8V7

main87945-52170-J4i201907

GRAYISH BLUE,8W2

main87945-52170-L0i201706

BEIGE,4U0

main87945-52170-L3i202008

DK. BROWN M.M.,4U3

87946RETRACTOR, OUTER MIRROR, RH

main87946-52D70i201112-201412

OUTSIDE REAR VIEW MIRROR-ELECTRIC RETRACTABLE(COLORED)

main87946-52E00i201412-201706

OUTSIDE REAR VIEW MIRROR-ELECTRIC RETRACTABLE(COLORED)

87961MIRROR OUTER, LH

main87961-52D50i201112-201412

87966RETRACTOR, OUTER MIRROR, LH

main87966-52D50i201706

OUTSIDE REAR VIEW MIRROR-ELECTRIC RETRACTABLE(COLORED)

main87966-52D80i201412-201706

OUTSIDE REAR VIEW MIRROR-ELECTRIC RETRACTABLE(COLORED)

9016360024

main90163-60024

11 parts on this diagram · 2 diagrams in section

MIRROR for Toyota PRIUS C

This section contains 11 genuine Toyota parts for the MIRROR system of the Toyota PRIUS C. Key components include: SIDE TURN SIGNAL LAMP & OUTER MIRROR LAMP, MIRROR ASSY, INNER REAR VIEW, MIRROR ASSY, OUTER REAR VIEW, RH, COVER, OUTER MIRROR, RH, OUTER MIRROR, RH.
