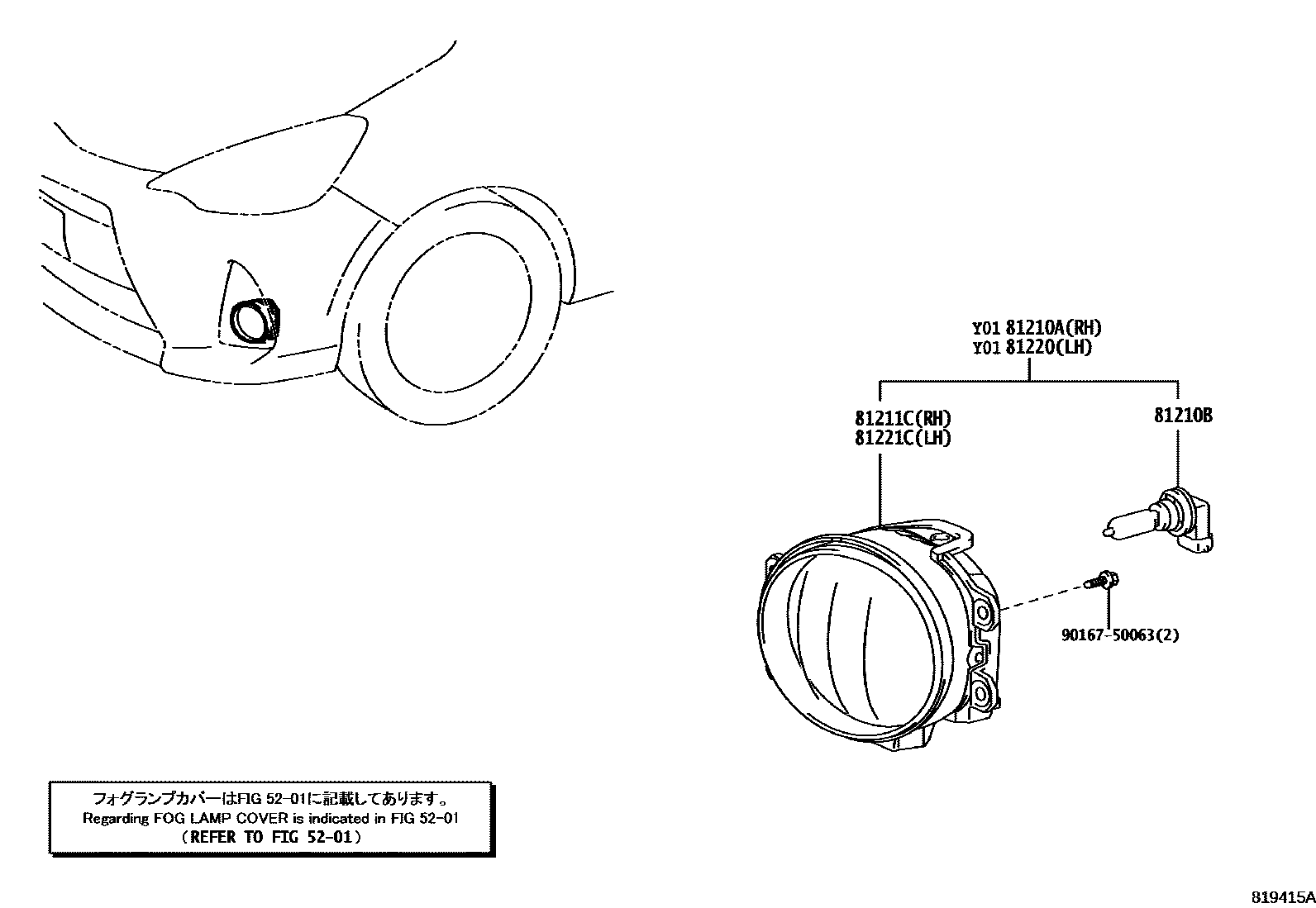

Toyota PRIUS C — FOG LAMP

5201FRONT BUMPER & BUMPER STAY

→ Go to FIG 52-01

81210ALAMP ASSY, FOG, RH

main81210-12230i201112-201410

main81210-47010i201412-201706

DECONTENT PACKAGE(FOR GENERAL COUNTRY); DECONTENT PACKAGE(FOR GENERAL COUNTRY)&HEADLAMP-LED

main81210-48050i201412-201607

HEADLAMP-LED

main81210-48051i201608-201706

HEADLAMP-LED

81210BBULB, FOG LAMP

main90981-13090×2i201706

12V 19W

81211CLAMP UNIT, FOG LAMP, RH

main81211-12230i201112-201411

main81211-47010i201411-201412

81220LAMP ASSY, FOG, LH

main81220-12230i201112-201410

main81220-47010i201412-201706

DECONTENT PACKAGE(FOR GENERAL COUNTRY); DECONTENT PACKAGE(FOR GENERAL COUNTRY)&HEADLAMP-LED

main81220-48050i201412-201607

HEADLAMP-LED

main81220-48051i201608-201706

HEADLAMP-LED

81221CLAMP UNIT, FOG LAMP, LH

main81221-12230i201112-201411

main81221-47010i201412-201706

DECONTENT PACKAGE(FOR GENERAL COUNTRY); DECONTENT PACKAGE(FOR GENERAL COUNTRY)&HEADLAMP-LED

9016750063

main90167-50063

7 parts on this diagram · 3 diagrams in section

FOG LAMP for Toyota PRIUS C

This section contains 9 genuine Toyota parts for the FOG LAMP system of the Toyota PRIUS C. Key components include: FRONT BUMPER & BUMPER STAY, LAMP ASSY, FOG, RH, BULB, FOG LAMP, LAMP UNIT, FOG LAMP, RH, BRACKET, FOG LAMP, RH.
