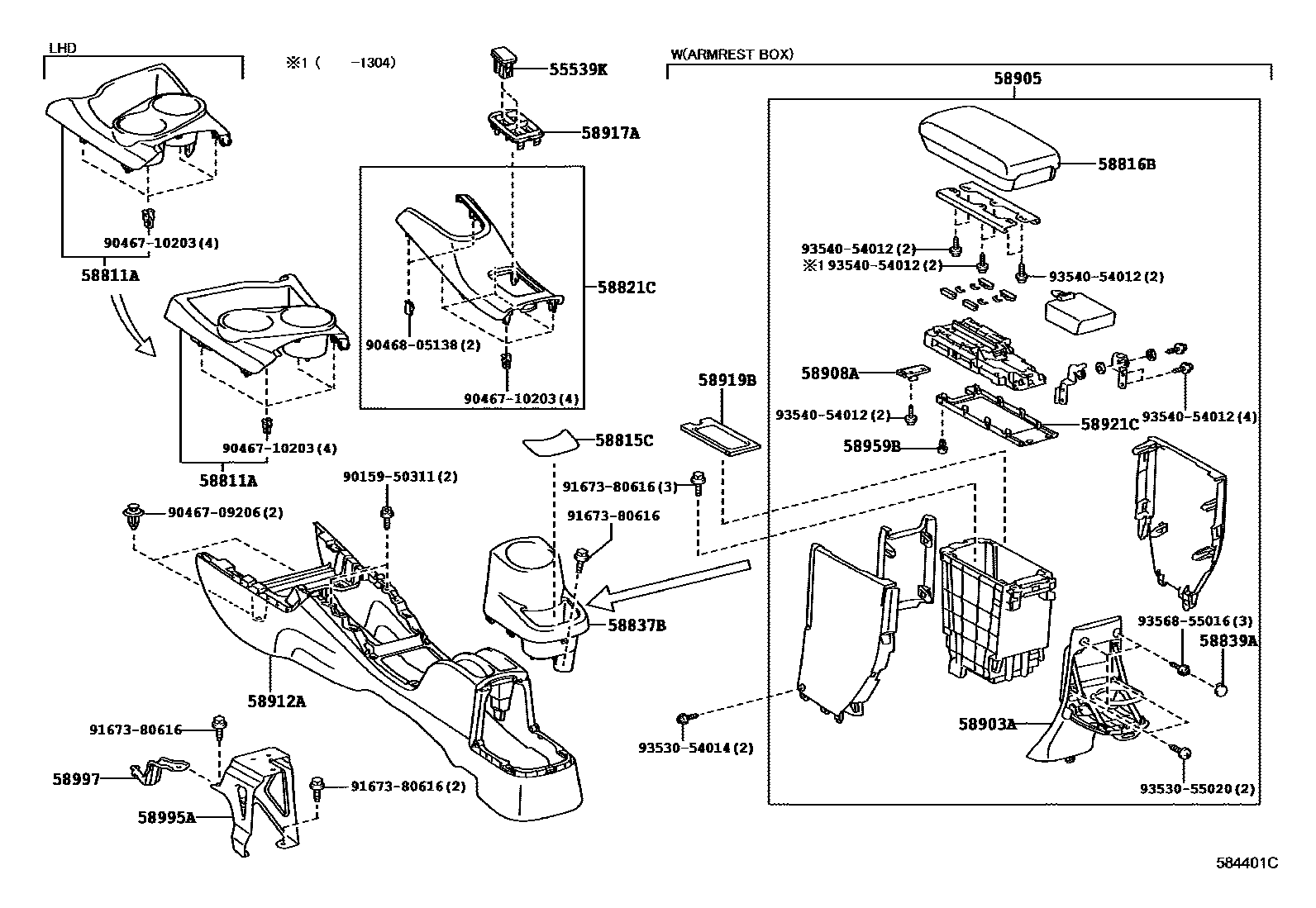

Toyota PRIUS C — CONSOLE BOX & BRACKET

55539KCOVER, SPARE SWITCH HOLE

main55539-26140-C0iNHP10201706

TAIWAN SPEC,BLACK,TRIM2#,8#

main55539-28160-B3iNHP10201306-201412

LT.BLUE GRAY,TRIM21,28

main55539-28160-C0iNHP10201412-201510

TAIWAN SPEC,BLACK,TRIM2#

58811ABOX, CONSOLE, FRONT

main58811-52040-C0iNHP10..LHD201412-201504

BLACK,TRIM2#

main58811-52041-C0iNHP10..LHD201505-201706

BLACK,TRIM2#

main58811-52050-C0iNHP10..RHD201412-201501

BLACK,TRIM2#

main58811-52051-C0iNHP10..RHD201501-201706

BLACK,TRIM2#

58815CCARPET, CONSOLE BOX

main58815-52120iNHP10..GEN201412-201706

REAR CONSOLE BOX-WITHOUT

58816BINSERT, CONSOLE BOX

main58914-52020-C0iNHP10201112-201412

BLACK,TRIM2#

main58914-52040-C0iNHP10201412-201706

BLACK,TRIM2#

main58914-52040-C1iNHP10201706

BLACK,TRIM2#,8#

58821CPANEL, CONSOLE, UPPER

main58821-52120-B0iNHP10201112-201306

LT.BLUE GRAY,TRIM2#

main58821-52120-C0iNHP10201706

BLACK,TRIM2#,8#

58837BBOX, CONSOLE CUP HOLDER

main58837-52040-C0iNHP10..GEN201412-201706

REAR CONSOLE BOX-WITHOUT,BLACK,TRIM2#

58839ACOVER, CONSOLE BOX HOLE

main58839-52030-C0×2iNHP10201112-201412

BLACK,TRIM2#

58903APANEL SUB-ASSY, CONSOLE REAR END

main58903-52020-C0iNHP10201112-201412

BLACK,TRIM2#

58905DOOR SUB-ASSY, CONSOLE COMPARTMENT

main58905-52020-C0iNHP10201112-201412

BLACK,TRIM2#

main58905-52060-C0iNHP10201412-201706

BLACK,TRIM2#

main58905-52060-C1iNHP10201706

BLACK,TRIM2#,8#

58908ALOCK SUB-ASSY, CONSOLE COMPARTMENT DOOR

main58908-12080iNHP10201112-201412

58912ABOX, REAR CONSOLE

main58911-52210-C0iNHP10201112-201412

BLACK,TRIM2#

main58911-52211-C0iNHP10201501-201706

BLACK,TRIM2#

58917ACOVER, CONSOLE BOX, REAR

main58917-52130-B0iNHP10201112-201303

LT.BLUE GRAY,TRIM2#

main58917-52131-B0iNHP10201304-201412

LT.BLUE GRAY,TRIM2#

main58917-52140-C0iNHP10201412-201506

BLACK,TRIM2#

main58917-52141-C0iNHP10201507-201706

BLACK,TRIM2#

58919BPLATE, CONSOLE BOX

main58919-52010iNHP10201112-201412

58921CPLATE, BOX, UPPER NO.1

main58921-52020iNHP10201112-201412

58959BCUSHION, CONSOLE COMPARTMENT DOOR

main58959-60060×2iNHP10201112-201412

58995ABRACKET, CONSOLE BOX MOUNTING, NO.1

main58995-52050iNHP10201112-201412

58997BRACKET, CONSOLE BOX MOUNTING, NO.3

main58997-52020iNHP10201112-201412

9015950311

main90159-50311

9046709206

main90467-09206

9046710203

main90467-10203

9046805138

main90468-05138

9167380616

main91673-80616

9353054014

main93530-54014

9353055020

main93530-55020

9354054012

main93540-54012

9356855016

main93568-55016

26 parts on this diagram · 1 diagram in section
