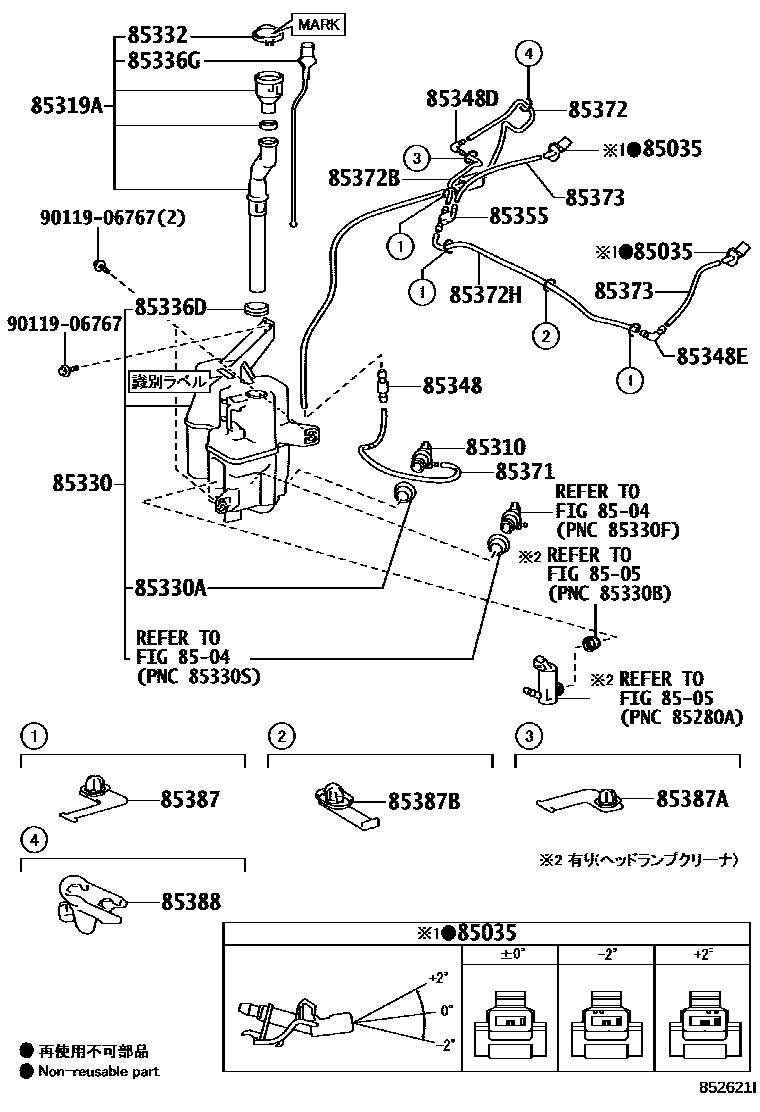

Toyota PRIUS A(ALPHA) — WINDSHIELD WASHER

85035NOZZLE SUB-ASSY, WASHER

main85381-12330×2i201411-202103

main85381-12340×2i201411-202103

main85381-12350×2i201104-201411

8504REAR WASHER

→ Go to FIG 85-04

8505HEADLAMP CLEANER

→ Go to FIG 85-05

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

main85330-47010i201411-202103

85319AHOSE, INLET

main85319-47120i201104-201111

main85319-47121i201308-201411

main85319-47220i201411-202010

main85319-47221i202010-202103

85330JAR ASSY, WINDSHIELD WASHER

main85315-47220i201411-202010

main85315-47221i202010-202103

main85355-47020i201104-201111

main85355-47021supersedes 85315-47140i201111-201308

85330ABUSH, WINDSHIELD WASHER JAR

main85336-60300i201104-201411

85332CAP, WINDSHIELD WASHER JAR

main85316-47120i201308-201411

main85316-47220i201411-202010

main85316-47221i202010-202103

main85386-60060i201104-201308

85336DPACKING, WINDSHIELD WASHER JAR

main85336-30160i201104-201411

85336GGAGE, WATER LEVEL

main85318-47110i201104-201411

85348JOINT, WINDSHIELD WASHER HOSE, NO.1

main85349-89122i201104-201411

85348DJOINT, WINDSHIELD WASHER ELBOW, NO.1

main85355-20200i201104-201411

85348EJOINT, WINDSHIELD WASHER ELBOW, NO.2

main85355-20200i201104-201411

85355VALVE, WINDSHIELD WASHER HOSE

main85321-28020i201104-201411

85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main90099-33080i201104-201111

main90099-62091i201111-201411

main90099-62096i201411-202103

85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

main90099-33080i201104-201411

85372BHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2

main90099-33080i201104-201411

85372HHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.3

main90099-33080i201104-201411

85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)

main90099-33080×2i201104-201411

85387CLAMP NO.1 (FOR WINDSEIELD WASHER)

main82711-2C160×3i201104-201411

85387ACLAMP, WASHER, NO.2

main82711-2C170i201104-201411

85387BCLAMP, WASHER, NO.3

main82711-52090i201104-201411

85388CLAMP NO.2 (FOR WINDSEIELD WASHER)

main85387-47180i201104-201411

9011906767

main90119-06767

24 parts on this diagram · 1 diagram in section

WINDSHIELD WASHER for Toyota PRIUS A(ALPHA)

This section contains 24 genuine Toyota parts for the WINDSHIELD WASHER system of the Toyota PRIUS A(ALPHA). Key components include: NOZZLE SUB-ASSY, WASHER, REAR WASHER, HEADLAMP CLEANER, MOTOR AND PUMP ASSY, WINDSHIELD WASHER, HOSE, INLET.
