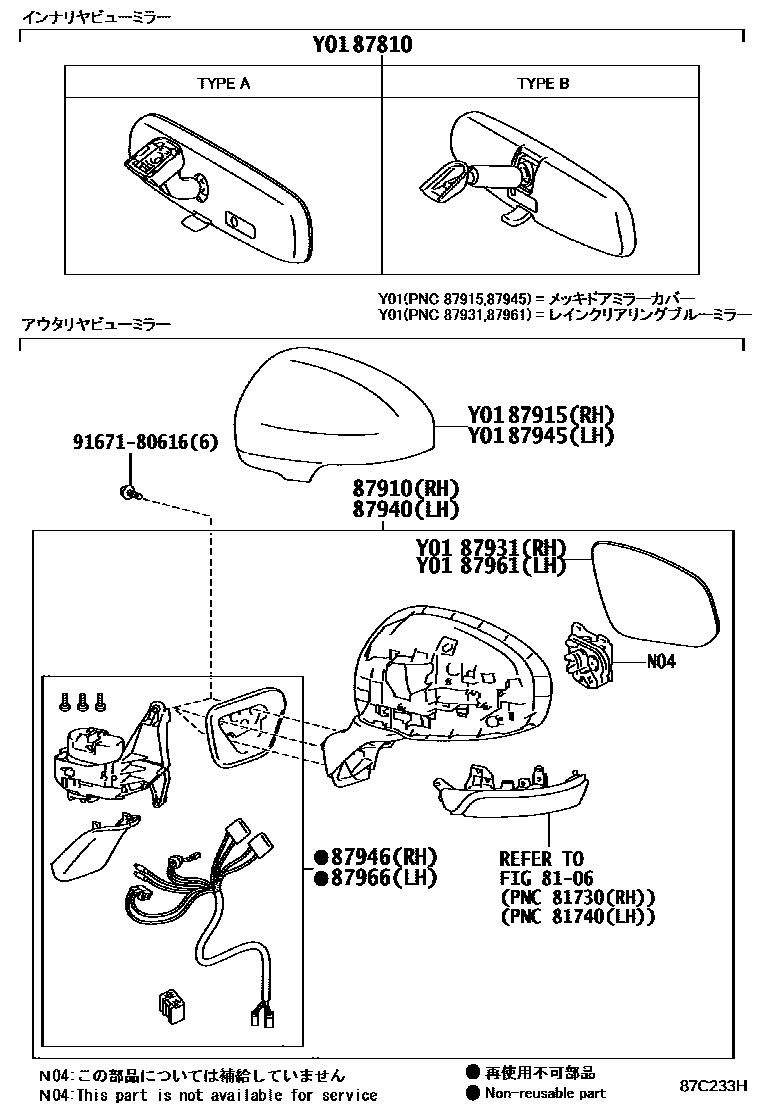

Toyota PRIUS A(ALPHA) — MIRROR
8106SIDE TURN SIGNAL LAMP & OUTER MIRROR LAMP
87810MIRROR ASSY, INNER REAR VIEW
87910MIRROR ASSY, OUTER REAR VIEW, RH
87915COVER, OUTER MIRROR, RH
SUPER WHITE 2,040
WHITE PEARL CS.,070
SILVER ME.,1F7
GRAY ME.,1G3
BLACK,202
ATTITUDE BLACK MC.,218
BLACKISH AGEHA GF.,221
RED M.M.,3R3
SUPER RED 5,3P0
BLACKISH RED MC.,3R0
DK. RED M.M.,3Q3
RED MC.,3T3
ORANGE ME.,4R8
DARK SHERRY M.M.,4W4
STEEL BLONDE ME.,4X1
CLEAR STREAM ME.,787
DK.BLUE MC.,8T5
SILVER ME.,1D6
DK. BLUE MC.,8X8
87931OUTER MIRROR, RH
87940MIRROR ASSY, OUTER REAR VIEW, LH
87945COVER, OUTER MIRROR, LH
SUPER WHITE 2,040
WHITE PEARL CS.,070
SILVER ME.,1F7
GRAY ME.,1G3
BLACK,202
ATTITUDE BLACK MC.,218
BLACKISH AGEHA GF.,221
RED M.M.,3R3
SUPER RED 5,3P0
BLACKISH RED MC.,3R0
DK. RED M.M.,3Q3
RED MC.,3T3
ORANGE ME.,4R8
DARK SHERRY M.M.,4W4
STEEL BLONDE ME.,4X1
CLEAR STREAM ME.,787
DK.BLUE MC.,8T5
SILVER ME.,1D6
DK. BLUE MC.,8X8
87946RETRACTOR, OUTER MIRROR, RH
87961MIRROR OUTER, LH
87966RETRACTOR, OUTER MIRROR, LH
9167180616
main91671-80616
11 parts on this diagram · 1 diagram in section
MIRROR for Toyota PRIUS A(ALPHA)
This section contains 11 genuine Toyota parts for the MIRROR system of the Toyota PRIUS A(ALPHA). Key components include: SIDE TURN SIGNAL LAMP & OUTER MIRROR LAMP, MIRROR ASSY, INNER REAR VIEW, MIRROR ASSY, OUTER REAR VIEW, RH, COVER, OUTER MIRROR, RH, OUTER MIRROR, RH.
