Toyota PRIUS A(ALPHA) — FUEL INJECTION SYSTEM

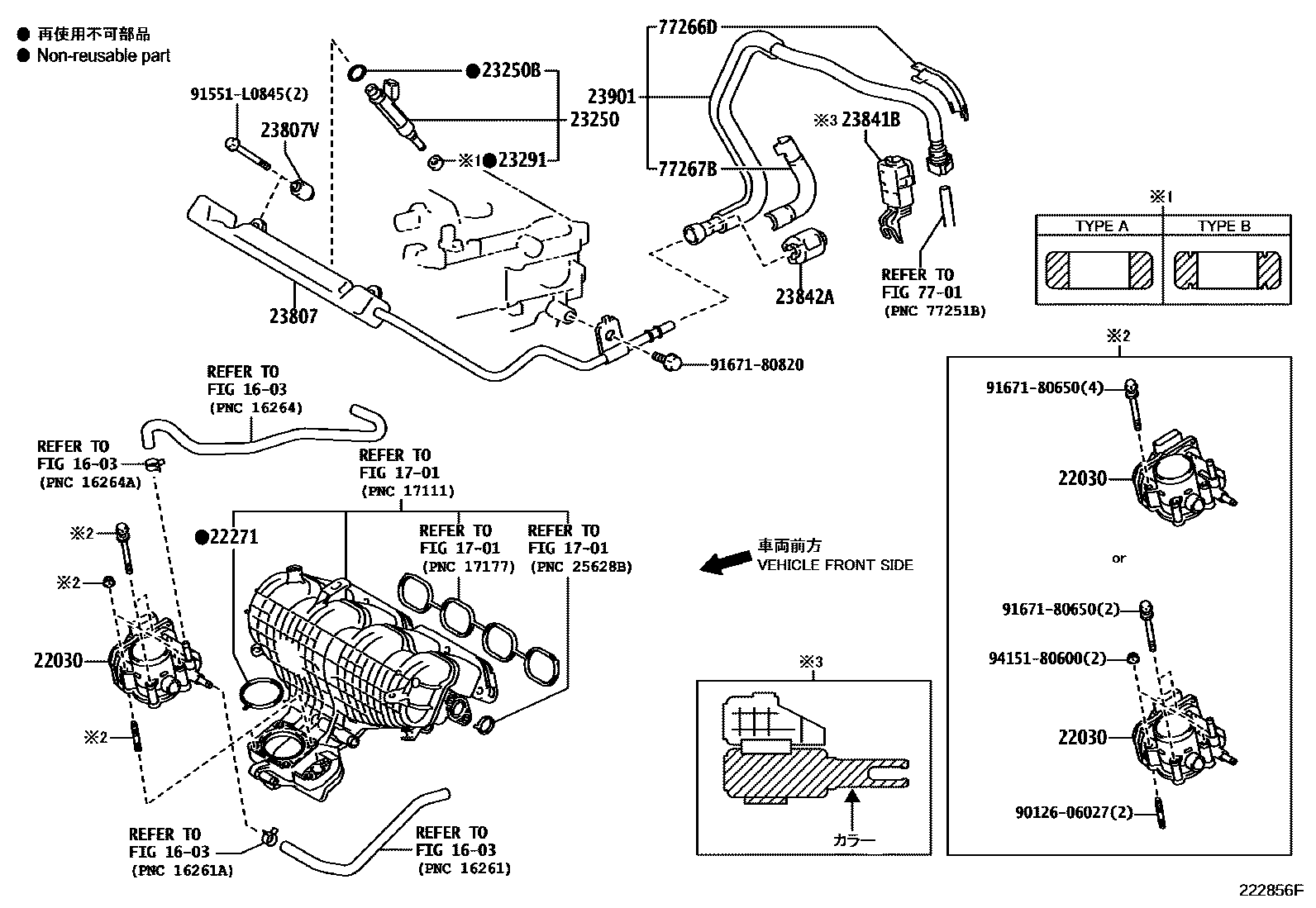

Parts diagram

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

1701MANIFOLD

→ Go to FIG 17-01

22030BODY ASSY, THROTTLE W/THROTTLE POSITION SENSOR

main22030-37060i201411-202103

22271GASKET, THROTTLE BODY

main22271-37010i201104-201210

23250INJECTOR ASSY, FUEL

main23209-39146×4i201104-201411

23250BRING, O(FOR FUEL INJECTOR)

main90301-07037×4i201104-201411

23291INSULATOR, INJECTOR VIBRATION

main23291-23010×4i201104-201411

main23291-28020×4i201104-201411

23807PIPE SUB-ASSY, FUEL DELIVERY

main23814-37060i201104-201108

main23814-37061i201411-202103

23807VSPACER, NO.1(FOR DELIVERY PIPE)

main23891-37010×2i201104-201411

23841BCLAMP, FUEL PIPE, NO.1(FOR EFI)

main23841-21040i201104-201208

main23841-37090i201208-201411

23842ACLAMP, FUEL PIPE, NO.2(FOR EFI)

main23842-28010i201104-201411

23901TUBE SUB-ASSY, FUEL

main23901-37180i201104-201411

7701FUEL TANK & TUBE

→ Go to FIG 77-01

77266DPROTECTOR, FUEL TUBE

main77266-47020i201104-201411

77267BPROTECTOR, FUEL TUBE, NO.2

main77267-47030i201104-201411

9012606027

main90126-06027

91551L0845

main91551-L0845

9167180650

main91671-80650

9167180820

main91671-80820

9415180600

main94151-80600

20 parts on this diagram · 1 diagram in section

FUEL INJECTION SYSTEM for Toyota PRIUS A(ALPHA)

This section contains 20 genuine Toyota parts for the FUEL INJECTION SYSTEM system of the Toyota PRIUS A(ALPHA). Key components include: RADIATOR & WATER OUTLET, MANIFOLD, BODY ASSY, THROTTLE W/THROTTLE POSITION SENSOR, GASKET, THROTTLE BODY, INJECTOR ASSY, FUEL.
