Toyota PRIUS A(ALPHA) — CONSOLE BOX & BRACKET

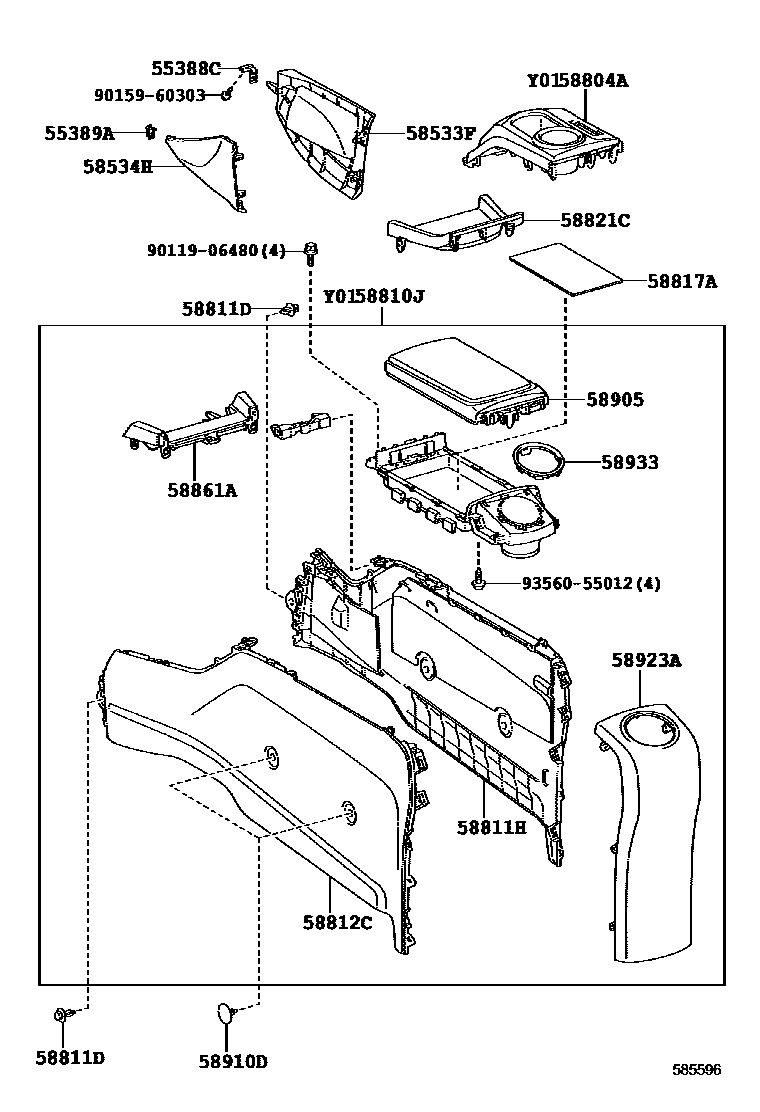

Parts diagram
55388CBRACKET, CONSOLE MOUNTING, RH
main55389-42020i201104-202103
55389ABRACKET, CONSOLE MOUNTING, LH
main55388-42020i201104-202103
58533FCOVER, FLOOR CARPET, CENTER RH
main58533-47010-B0i201104-201411
MD.GRAY,TRIM1#,2#
main58533-47010-C0i201411-202103
BLACK,TRIM2#
main58533-47010-E0i201411-202103
GREGE,TRIM4#
main58533-47010-G0i201104-201411
AQUA,TRIM6#
58534HCOVER, FLOOR CARPET, CENTER LH
main58534-47010-B0i201104-201411
MD.GRAY,TRIM1#,2#
main58534-47010-C0i201411-202103
BLACK,TRIM2#
main58534-47010-E0i201411-202103
GREGE,TRIM4#
main58534-47010-G0i201104-201411
AQUA,TRIM6#
58804APANEL SUB-ASSY, CONSOLE, UPPER
main58804-47020-B0i201104-201411
MD.GRAY,TRIM1#
main58804-47020-G0i201104-201411
AQUA,TRIM6#
main58804-47030-B0i201104-201411
MD.GRAY,TRIM1#
main58804-47030-G0i201104-201411
AQUA,TRIM6#
main58804-47080-C0i201411-202103
BLACK,TRIM2#
main58804-47080-E0i201411-202103
GREGE,TRIM4#
main58804-47090-C0i201411-202103
BLACK,TRIM2#
main58804-47090-E0i201411-202103
GREGE,TRIM4#
58810JBOX ASSY, CONSOLE
main58810-47030-B0i201104-201411
GRAY,TRIM1#,2#
main58810-47030-G0i201104-201411
AQUA/GRAY,TRIM6#
main58810-47040-B0i201104-201411
GRAY,TRIM1#,2#
main58810-47040-G0i201104-201411
AQUA/GRAY,TRIM6#
main58810-47080-C1i201411-202103
BLACK,TRIM2#
main58810-47080-E1i201411-202103
GREGE,TRIM4#
main58810-47090-C1i201411-202103
BLACK,TRIM2#
main58810-47090-E1i201411-202103
GREGE,TRIM4#
58811DCLIP(FOR CONSOLE BOX)
main90467-07164i201104-202103
58811HBOX, CONSOLE, RH
main58811-47030-B0i201104-201411
MD.GRAY,TRIM1#,2#
main58811-47030-C0i201411-202103
BLACK,TRIM2#
main58811-47030-E0i201411-202103
GREGE,TRIM4#
main58811-47030-G0i201104-201411
AQUA,TRIM6#
58812CBOX, CONSOLE, LH
main58812-47030-B0i201104-201411
MD.GRAY,TRIM1#,2#
main58812-47030-C0i201411-202103
BLACK,TRIM2#
main58812-47030-E0i201411-202103
GREGE,TRIM4#
main58812-47030-G0i201104-201411
AQUA,TRIM6#
58817AINSERT, CONSOLE BOX, FRONT NO.2
main58817-47030-C0i201104-201411
BLACK,TRIM1#,2#,6#
main58817-47030-C0i201411-202103
BLACK,TRIM2#,4#
main58817-47040-C0i201104-201411
BLACK,TRIM1#,2#,6#
main58817-47040-C0i201411-202103
BLACK,TRIM2#,4#
58821CPANEL, CONSOLE, UPPER
main58821-47030-B0i201104-201411
MD.GRAY,TRIM1#
main58821-47030-C0i201411-202103
BLACK,TRIM2#
main58821-47030-E0i201411-202103
GREGE,TRIM4#
main58821-47030-G0i201104-201411
AQUA,TRIM6#
58861ASUPPORT, CONSOLE BOX, NO.1
main58861-47020-B0i201104-201411
MD.GRAY,TRIM1#,2#
main58861-47020-C0i201411-202103
BLACK,TRIM2#
main58861-47020-E0i201411-202103
GREGE,TRIM4#
main58861-47020-G0i201104-201411
AQUA,TRIM6#
58905DOOR SUB-ASSY, CONSOLE COMPARTMENT
main58905-47081-B2i201104-201411
MD.GRAY/GRAY,TRIM1#,2#
main58905-47081-G0i201104-201411
AQUA/GRAY,TRIM6#
main58905-47091-B0i201104-201108
MD.GRAY/GRAY,TRIM1#
sub58905-47091
main58905-47091-B2i201104-201108
AQUA/GRAY,TRIM6#
sub58905-47091
main58905-47091-B3i201108-201411
MD.GRAY,TRIM1#,2#
sub58905-47091
main58905-47091-G0i201108-201411
AQUA,TRIM6#
sub58905-47091
main58905-47200-E1i201411-202103
GREGE,TRIM4#
sub58905-47210
main58905-47210-C1i201411-202103
BLACK,TRIM2#
main58905-47210-E1i201411-202103
GREGE,TRIM4#
58910DCLIP(FOR CONSOLE BOX)
main90467-07212-B0i201104-201411
MD.GRAY,TRIM1#,2#
main90467-07212-C0i201411-202103
BLACK,TRIM2#
main90467-07212-E0i201411-202103
GREGE,TRIM4#
main90467-07212-G0i201104-201411
AQUA,TRIM6#
58923APANEL, CONSOLE REAR END
main58923-47050-B0i201104-201411
MD.GRAY,TRIM1#,2#
main58923-47050-C0i201411-202103
BLACK,TRIM2#
main58923-47050-E0i201411-202103
GREGE,TRIM4#
main58923-47050-G0i201104-201411
AQUA,TRIM6#
main58923-47060-B0i201104-201411
MD.GRAY,TRIM1#,2#
main58923-47060-C0i201411-202103
BLACK,TRIM2#
main58923-47060-E0i201411-202103
GREGE,TRIM4#
main58923-47060-G0i201104-201411
AQUA,TRIM6#
58933GARNISH, CONSOLE REAR END PANEL
main58933-47010i201104-202103
9011906480
main90119-06480
9015960303
main90159-60303
9356055012
main93560-55012

19 parts on this diagram · 2 diagrams in section
