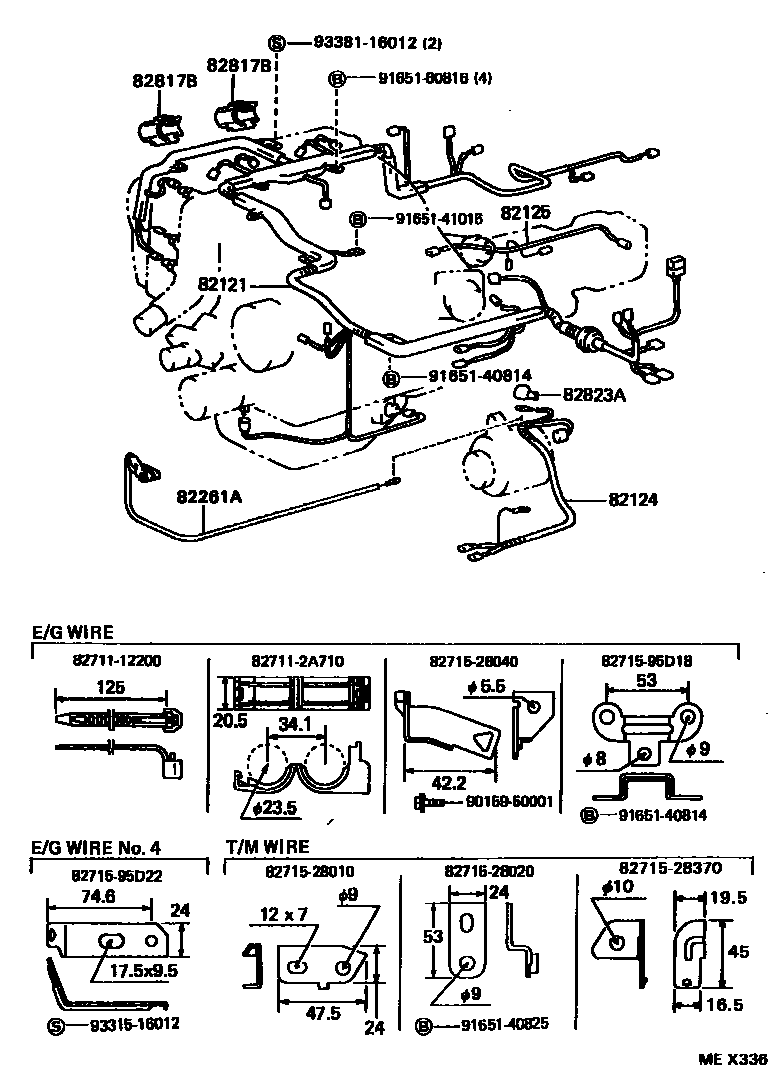

Toyota PREVIA — WIRING & CLAMP

0001 1ENGINE WIRE 0002 1ENGINE WIRE 0003 1ENGINE WIRE 0004 1COWL WIRE 0005 1COWL WIRE (PNC 82131) SPEC LI0006 1COWL WIRE (PNC 82131) SPEC LI0007 1COWL WIRE (PNC 82131) SPEC LI0008 1COWL WIRE (PNC 82131) SPEC LI0009 1COWL WIRE (PNC 82131) SPEC LI0010 1COWL WIRE (PNC 82131) SPEC LI0011 1CLAMP 0012 1CABLE BOND 0013 1DOOR,FLOOR & ROOF WIRE 0014 1DIODE

82121WIRE, ENGINE

main82121-28050iTCR10,20..USA199011-199108

CALIFORNIA SPEC

main82121-28060iTCR10,20199011-199108

main82121-28110iTCR10,20..USA199108-199111

CALIFORNIA SPEC

main82121-28111iTCR10,20..USA199111-199205

CALIFORNIA SPEC

main82121-28112iTCR10,20..USA199205-199308

CALIFORNIA SPEC

main82121-28113iTCR10,20..EFI199308-199608

main82121-28120iTCR10,20199108-199111

main82121-28121iTCR10,20199111-199205

main82121-28122iTCR10,20199205-199308

main82121-28260iTCR10..07S..USA199302-199308

CHINA SPEC

main82121-28270iTCR10,20..SPC199401-199608

main82121-28271iTCR10,20199608-199707

main82121-95D00iTCR10,20..USA199001-199005

W(*AEOF) & CALIFORNIA SPEC

main82121-95D00iTCR10,20..USA199005-199011

CALIFORNIA SPEC

main82121-95D01iTCR10,20..USA199001-199005

CALIFORNIA SPEC

main82121-95D02iTCR10,20199001-199005

W(*AEOF)

main82121-95D02iTCR10,20199005-199011

main82121-95D03iTCR10,20199001-199005

82124WIRE, ENGINE, NO.4

main82124-28140iTCR10,20199108-199308

main82124-28141iTCR10,20..EFI199308-199608

main82124-28240iTCR10,20..SPC199401-199608

main82124-28241iTCR10,20199608-199707

main82124-95D00iTCR10,20199001-199104

82125WIRE, TRANSMISSION

main82125-28020iTCR10..MTM199001-199308

main82125-28030iTCR20..MTM199001-199208

main82125-28040iTCR10..ATM199001-199308

main82125-28050iTCR20..ATM199001-199308

main82125-28051iTCR20..EFI199308-199508

main82125-28080iTCR10..EFI199308-199608

main82125-28130iTCR10..SPC199401-199412

main82125-28131iTCR10..SPC199412-199707

main82125-28140iTCR20..SPC199401-199412

main82125-28141iTCR20..SPC199412-199707

82261AWIRE, ALTERNATOR

main82261-28010iTCR10,20199108-199401

sub82261-28011

main82261-28011iTCR10,20..EFI199401-199608

82817PROTECTOR, WIRING HARNESS, NO.1

main82817-87013iTCR10,20199001-199707

82817BPROTECTOR, WIRING HARNESS, NO.3

main82817-28230iTCR10..07S..USA199302-199707

82823CAP, TERMINAL, NO.1

main82823-95D00iTCR10,20..USA..EFI199001-199608

COLD SPEC

main82823-95D00iTCR10,20..CND..EFI199001-199508

82823ACAP, TERMINAL, NO.2

main82823-22050iTCR10,20199001-199707

8271112200WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-12200

827112A710WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-2A710

8271528010BRACKET,WIRING HARNESS CLAMP

main82715-28010

8271528020BRACKET,WIRING HARNESS CLAMP

main82715-28020

8271528040BRACKET,WIRING HARNESS CLAMP

main82715-28040

8271528370BRACKET,WIRING HARNESS CLAMP

main82715-28370

8271595D18BRACKET,WIRING HARNESS CLAMP

main82715-95D18

8271595D22BRACKET,WIRING HARNESS CLAMP

main82715-95D22

9015950001

main90159-50001

9165140814

main91651-40814

9165140825

main91651-40825

9165141016

main91651-41016

9165160816

main91651-60816

9331516012

main93315-16012

9338116012

main93381-16012

23 parts on this diagram · 14 diagrams in section
