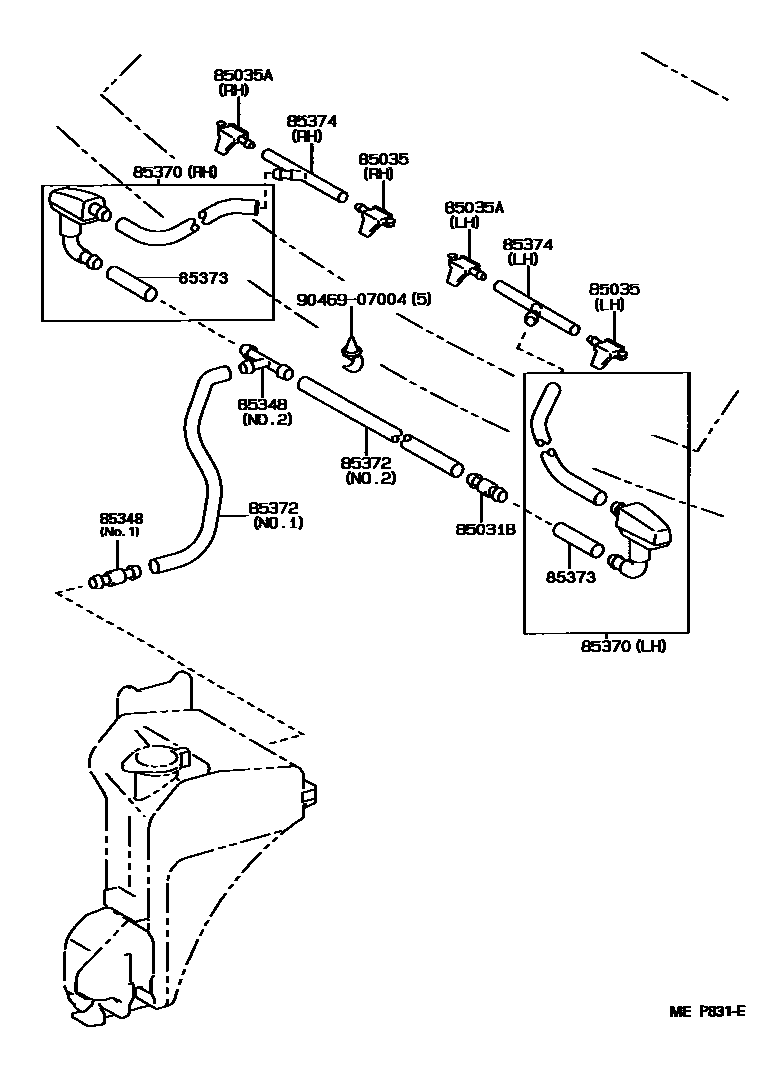

Toyota PREVIA — WINDSHIELD WASHER
85031BVALVE SUB-ASSY, WASHER
NO.2
NO.1
85035NOZZLE SUB-ASSY, WASHER
RH
LH
85035ANOZZLE, FR WASHER, RH
RH
LH
RH
LH
85348JOINT, WINDSHIELD WASHER HOSE, NO.1
NO.1
NO.2
NO.1
W(*RW),NO.3
NO.3
NO.3
85370HOSE ASSY, WINDSHIELD WASHER
RH
LH
RH
LH
RH
LH
85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1
L=1450(*H,L=40),NO.1
L=1450(*H,L=920),NO.1,NO.2
L=1000(*H,L=370),NO.2
L=1080,NO.3
85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
L=1450
85374HOSE, WINDSHIELD WASHER (FROM NOZZLE TO NOZZLE)
RH
LH
9046907004
main90469-07004
9 parts on this diagram · 4 diagrams in section
