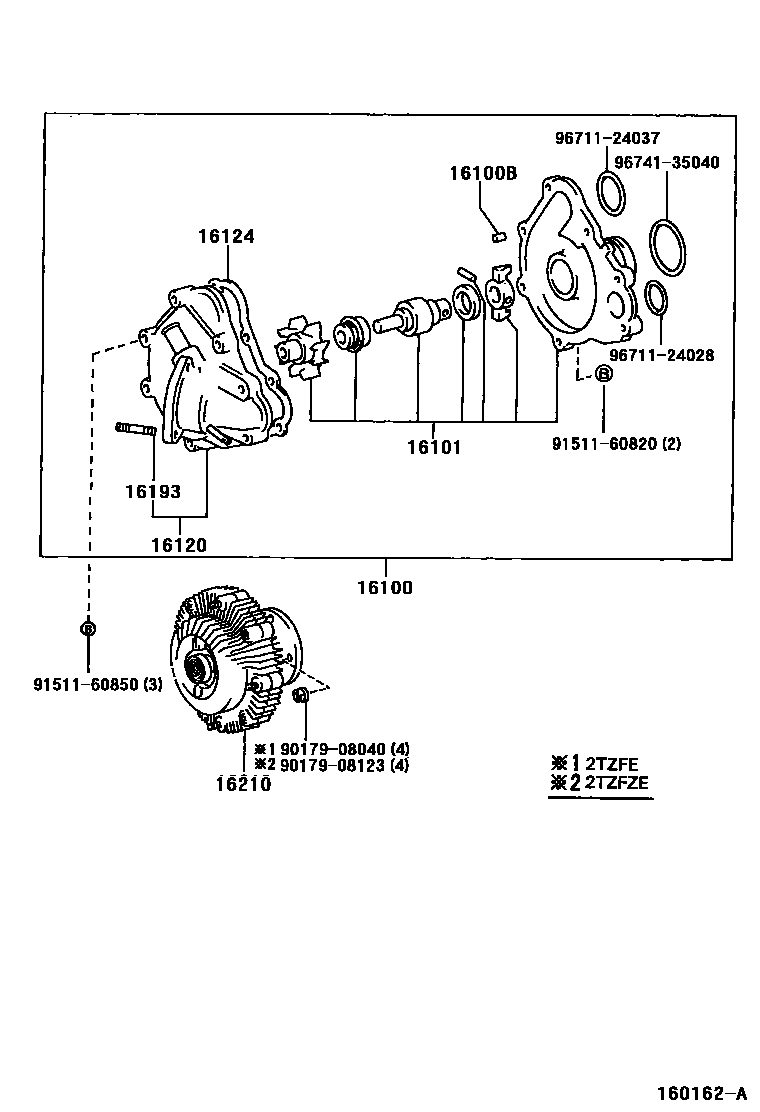

Toyota PREVIA — WATER PUMP

16100PUMP ASSY, ENGINE WATER

main16100-79165i2TZ#..TCR10,20199001-199707

16100BPIN, RING(FOR WATER PUMP SET)

main16159-71010i2TZ#..TCR10,20199001-199707

16101BODY SUB-ASSY, WATER PUMP

main16101-76030i2TZ#..TCR10,20199001-199707

16120COVER ASSY, WATER PUMP

main16120-76030i2TZ#..TCR10,20199001-199707

16124GASKET, WATER PUMP COVER

main16124-76030i2TZFE..TCR10,20199001-199707

sub16124-76040

main16124-76040i2TZFE..TCR10,20199401-199608

16193BOLT, STUD(FOR WATER PUMP COVER)

main16193-76010i2TZ#..TCR10,20199001-199707

16210COUPLING ASSY, FLUID

main16210-76010i2TZ#..TCR10,20199001-199707

9017908040

main90179-08040

9017908123

main90179-08123

9151160820

main91511-60820

9151160850

main91511-60850

9671124028

main96711-24028

9671124037

main96711-24037

9674135040

main96741-35040

14 parts on this diagram · 1 diagram in section
