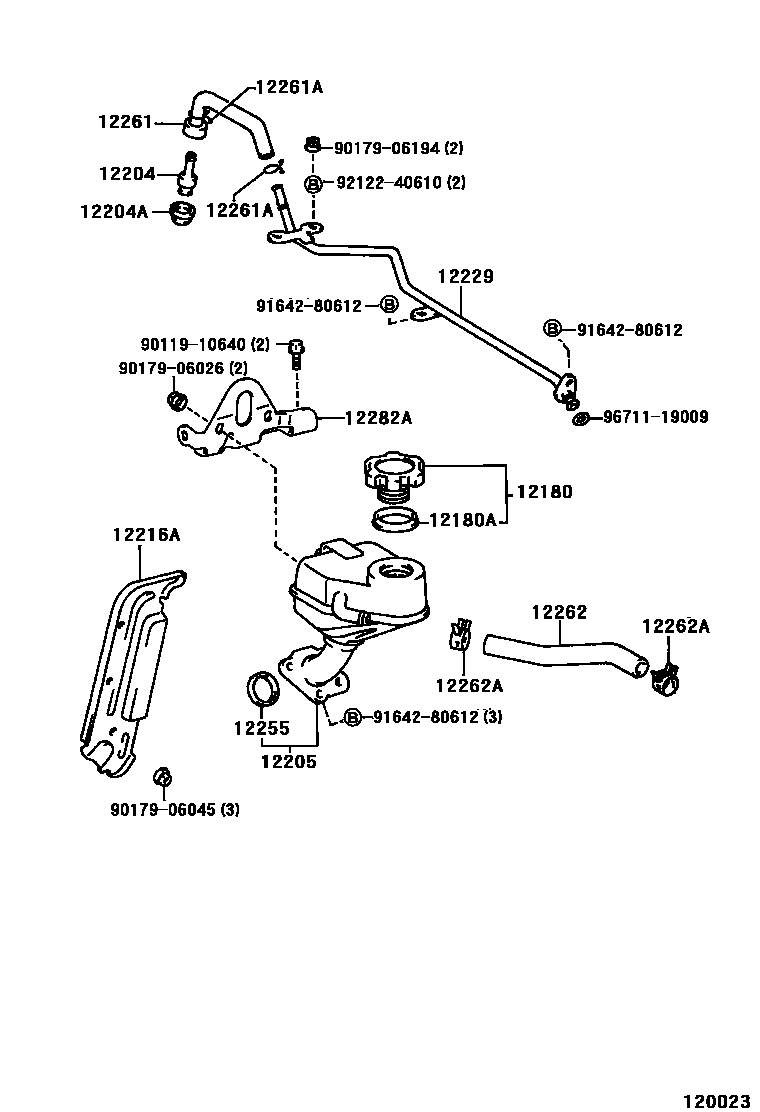

Toyota PREVIA — VENTILATION HOSE

0001 1 0002 1 0003 1

12180CAP ASSY, OIL FILLER

main12180-73011i2TZFE..TCR10,20199103-199208

main12180-75010i2TZFE..TCR10,20199001-199103

sub12180-73011

main12180-76010i2TZFE..TCR10,20199208-199403

sub12180-76011

main12180-76011i2TZFE..TCR10,20199403-199608

main12180-76020i2TZFZE..TCR10,20199401-199707

12180AGASKET, OIL FILLER CAP

main12195-70010i2TZFE..TCR10,20199001-199103

main12195-73010i2TZ#..TCR10,20199103-199707

12204VALVE SUB-ASSY, VENTILATION

main12204-15022i2TZ#..TCR10,20199001-199608

main12204-75010i2TZFZE..TCR10,20199608-199707

12204AGROMMET(FOR VENTILATION SYSTEM)

main90480-18001i2TZ#..TCR10,20199001-199707

12205CASE SUB-ASSY, VENTILATION

main12205-76010i2TZFE..TCR10,20199001-199312

main12205-76020i2TZ#..TCR10,20199312-199707

12216APLATE, OIL BAFFLE

main12216-76010i2TZFE..TCR10,20199001-199401

main12216-76020i2TZ#..TCR10,20199401-199707

12229PIPE, VENTILATION

main12229-76010i2TZ#..TCR10,20199001-199707

12255GASKET, VENTILATION

main12255-76010i2TZ#..TCR10,20199001-199707

12261HOSE, VENTILATION

main12261-76010i2TZ#..TCR10,20199001-199707

12261ACLIP OR CLAMP(FOR VENTILATION HOSE)

main90467-14001i2TZ#..TCR10,20199001-199707

12262HOSE, VENTILATION, NO.2

main12262-76010i2TZFE..TCR10,20199001-199108

main12262-76011i2TZFE..TCR10,20199108-199312

main12262-76012i2TZFE..TCR10,20199312-199608

main12262-76020i2TZFZE..TCR10,20199401-199706

12262ACLIP(FOR VENTILATION HOSE NO.2)

main90467-17011i2TZFZE..TCR10,20199401-199706

TUBE SIDE

sub96134-51700

main90467-17011i2TZFE..TCR10,20199403-199608

AIR CLEANER SIDE

sub96134-51700

main90467-17011i2TZFE..TCR10,20199001-199403

sub96134-51700

main90467-17018i2TZFZE..TCR10,20199401-199706

CASE SIDE

main90467-17018i2TZFE..TCR10,20199403-199608

ENGINE SIDE

12282AHANGER, ENGINE, NO.2

main12282-76020i2TZFE..TCR10,20199001-199312

main12282-76030i2TZ#..TCR10,20199312-199707

9011910640

main90119-10640

9017906026

main90179-06026

9017906045

main90179-06045

9017906194

main90179-06194

9164280612

main91642-80612

9212240610

main92122-40610

9671119009

main96711-19009

20 parts on this diagram · 3 diagrams in section
