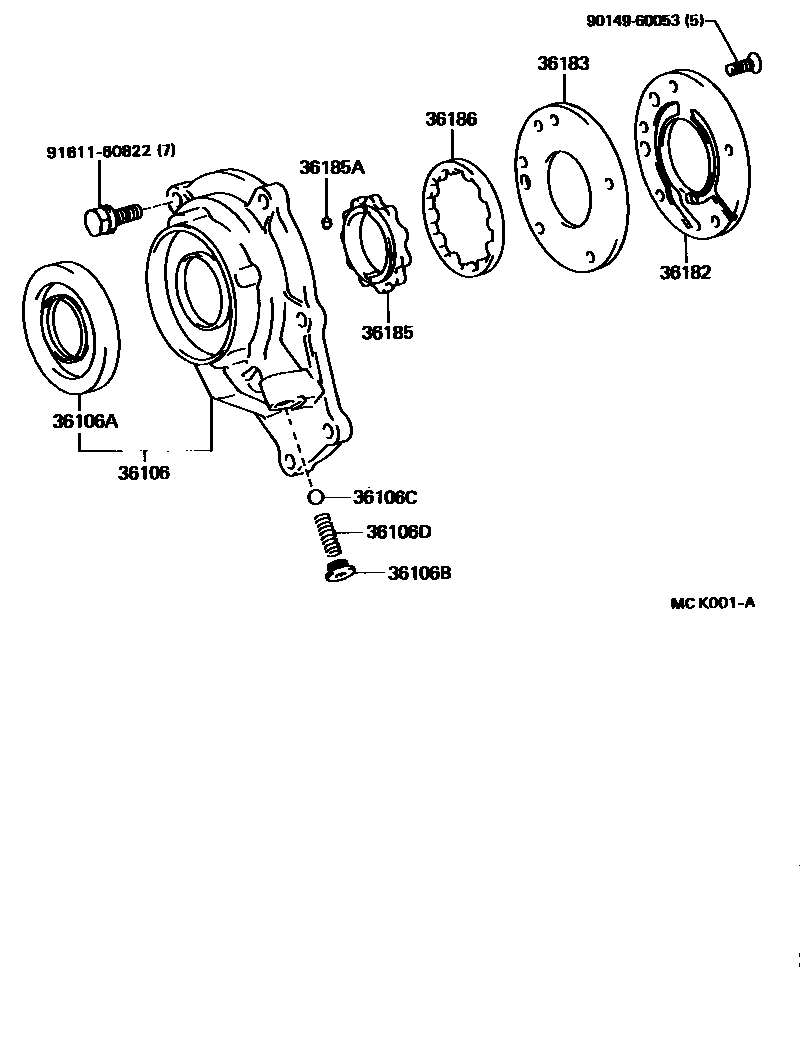

Toyota PREVIA — TRANSFER OIL PUMP

36106BODY SUB-ASSY, TRANSFER OIL PUMP

main36106-25010iTCR20199610-199707

main36106-28030iTCR20..MTM199001-199208

sub36106-28050

sub36185-25010

sub36186-25010

main36106-28040iTCR20..ATM199001-199610

sub36106-25010

sub36185-25010

sub36186-25010

36106ASEAL, OIL (FOR TRANSFER OIL PUMP BODY)

main90310-40002iTCR20..ATM199001-199705

sub90310-40005

main90310-40005iTCR20199705-199707

main90316-40002iTCR20..MTM199001-199208

sub90316-40004

36106BPLUG (FOR TRANSFER OIL PUMP BODY)

main90341-12014iTCR20199001-199707

36106CBALL (FOR TRANSFER OIL PUMP BODY)

main90360-10003iTCR20199001-199707

36106DSPRING, COMPRESSION (FOR TRANSFER OIL PUMP BODY)

main90501-09068iTCR20199001-199707

36182COVER, TRANSFER OIL PUMP

main36182-28020iTCR20199001-199707

36183PLATE, TRANSFER OIL PUMP

main36183-28020iTCR20199001-199707

36185ROTOR, TRANSFER OIL PUMP DRIVE

main36185-25010iTCR20199610-199707

main36185-28020iTCR20199001-199610

36185APIN, STRAIGHT(FOR TRANSFER OIL PUMP DRIVE ROTOR)

main90250-05025iTCR20199001-199707

36186ROTOR, TRANSFER OIL PUMP DRIVEN

main36186-25010iTCR20199610-199707

main36186-28010iTCR20199001-199610

9014960053

main90149-60053

9161160822

main91611-60822

12 parts on this diagram · 1 diagram in section
