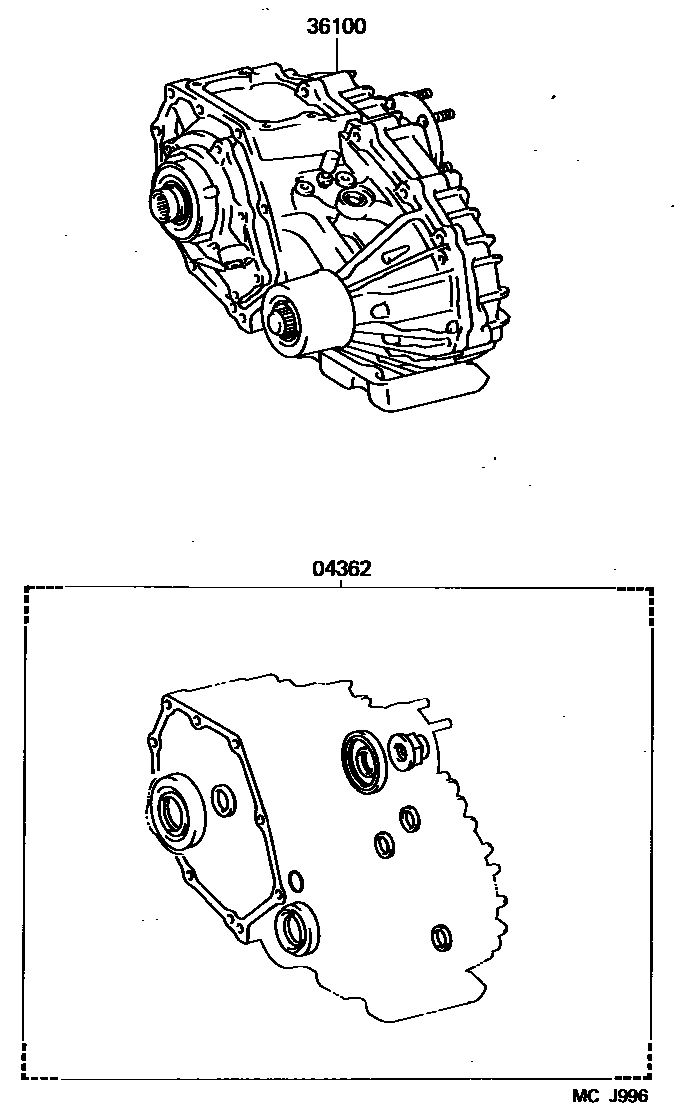

Toyota PREVIA — TRANSFER ASSEMBLY & GASKET KIT

04362GASKET KIT, TRANSFER OVERHAUL

main04362-28040iTCR20..ATM199001-199503

sub04362-28041

main04362-28041iTCR20199503-199707

main04362-28050iTCR20..MTM199001-199208

sub04362-28051

36100TRANSFER ASSY

main36100-26110iTCR20..SPC199401-199508

sub36100-26111

main36100-26111iTCR20199508-199609

sub36100-26160

main36100-28121iTCR20..ATM199001-199308

sub36100-28150

main36100-28131iTCR20..MTM199001-199208

main36100-28210iTCR20..EFI199308-199508

sub36100-28211

main36100-28340iTCR20199609-199707

2 parts on this diagram · 1 diagram in section
