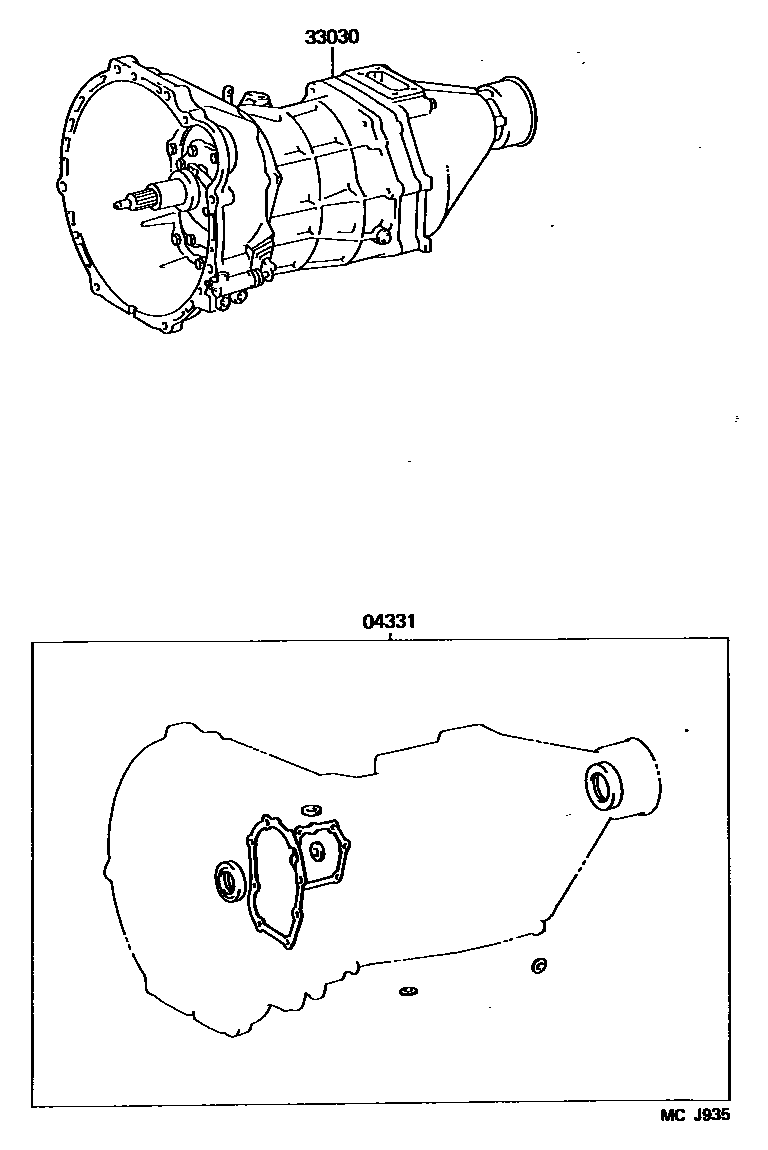

Toyota PREVIA — TRANSAXLE OR TRANSMISSION ASSY & GASKET KIT (MTM)

04331GASKET KIT, MANUAL TRANSMISSION OVERHAUL

main04331-35170iTCR10,20..MTM199001-199308

sub04331-35171

33030TRANSMISSION UNIT ASSY, MANUAL

main33030-28450iTCR10..MTM199001-199008

sub33030-28451

main33030-28451iTCR10..MTM199008-199108

main33030-28452iTCR10..MTM199108-199308

sub33030-28453

main33030-28480iTCR20..MTM199001-199008

sub33030-28481

main33030-28481iTCR20..MTM199008-199108

main33030-28482iTCR20..MTM199108-199208

sub33030-28483

2 parts on this diagram · 1 diagram in section
