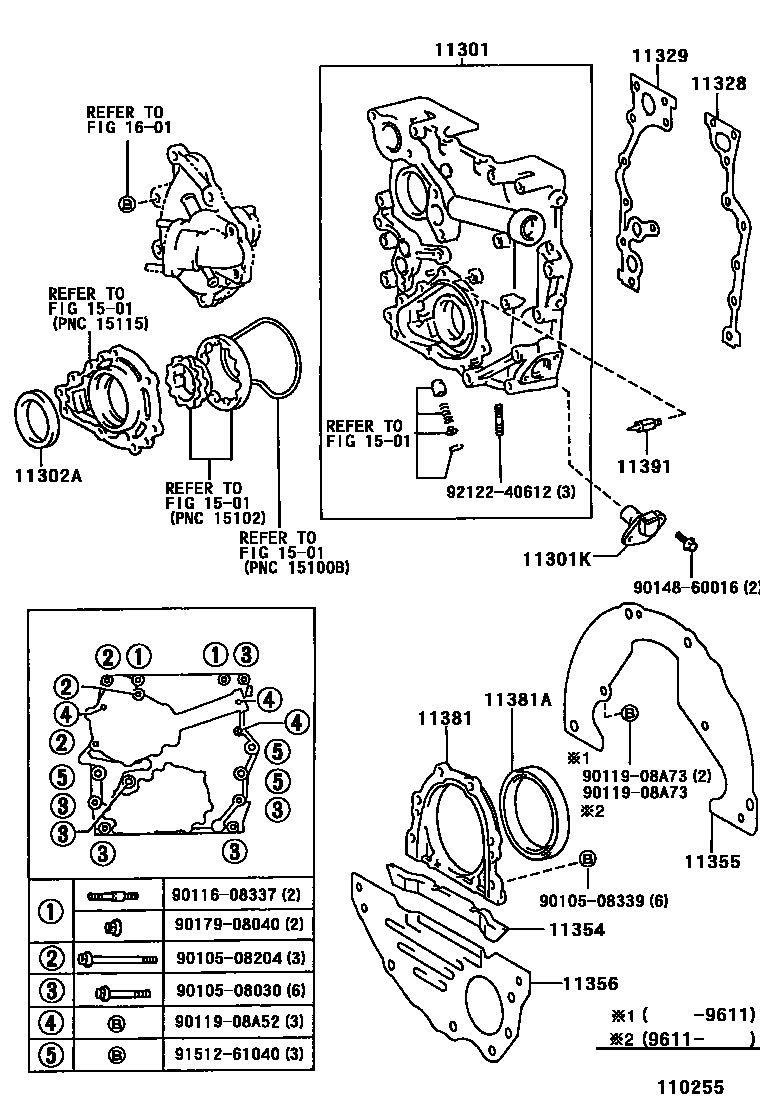

Toyota PREVIA — TIMING GEAR COVER & REAR END PLATE

11301CASE SUB-ASSY, TIMING GEAR

main11301-76010i2TZFE..TCR10,20199001-199401

sub11301-76011

main11301-76011i2TZFE..TCR10,20199401-199608

main11301-76020i2TZFZE..TCR10,20199401-199707

11301KSENSOR, CRANK POSITION

main90919-05015i2TZFZE..TCR10,20199401-199707

11302ASEAL, OIL(FOR TIMING CHAIN OR BELT COVER)

main90311-48014i2TZ#..TCR10,20199001-199707

11328GASKET, TIMING GEAR OR CHAIN COVER

main11328-75010i2TZ#..TCR10,20199001-199707

11329GASKET, TIMING GEAR REAR COVER

main11329-75010i2TZ#..TCR10,20199001-199707

11354SEAL, FLYWHEEL HOUSING DUST

main11354-76020i2TZ#..TCR10,20199001-199707

11355PLATE, REAR END

main11355-76010i2TZ#..TCR10,20199001-199707

11356PLATE, REAR END, NO.2

main11356-76020i2TZ#..TCR10,20199001-199707

11381RETAINER, ENGINE REAR OIL SEAL

main11381-75010i2TZ#..TCR10,20199001-199707

sub11381-75011

11381ASEAL, ENGINE REAR OIL

main90311-88001i2TZFE..TCR10,20199001-199308

sub90311-88003

main90311-88003i2TZ#..TCR10,20199308-199707

11391POINTER, TIMING

main11391-76010i2TZ#..TCR10,20199001-199707

1501

1601

9010508030

main90105-08030

9010508204

main90105-08204

9010508339

main90105-08339

9011608337

main90116-08337

9011908A52

main90119-08A52

9011908A73

main90119-08A73

9014860016

main90148-60016

9017908040

main90179-08040

9151261040

main91512-61040

9212240612

main92122-40612

23 parts on this diagram · 1 diagram in section
