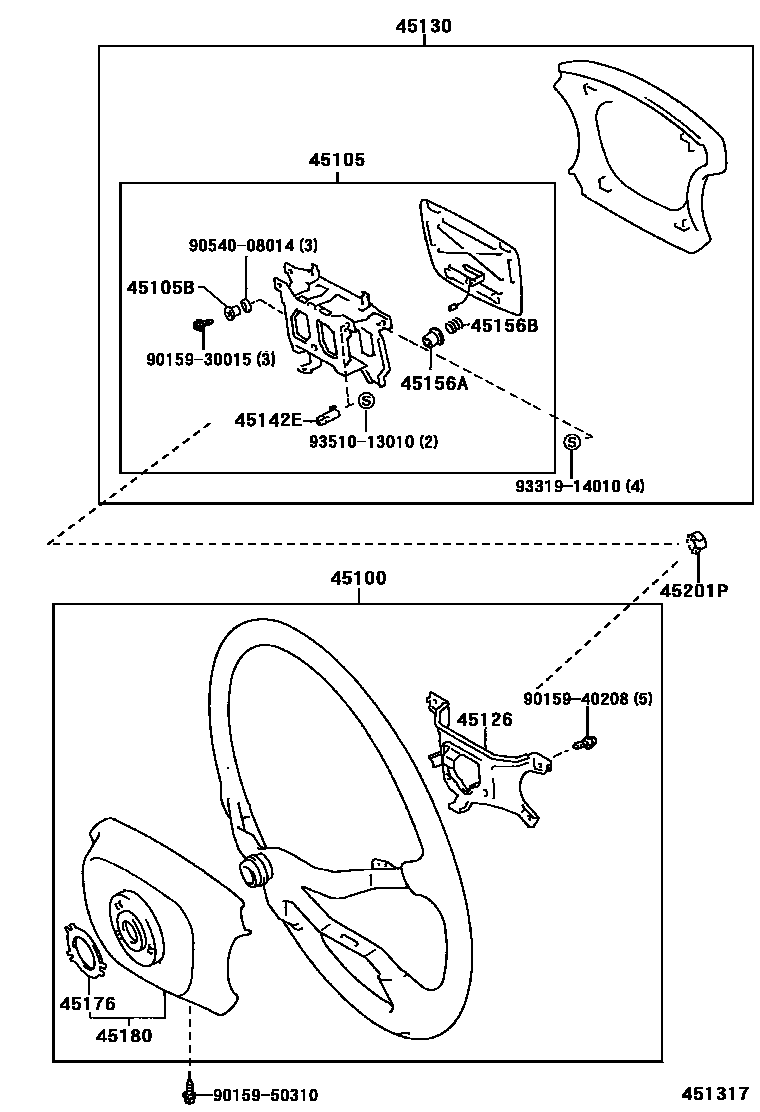

Toyota PREVIA — STEERING WHEEL

0001 1 0002 1 0003 1CHINA SPEC 0004 1W(CRUISE CONTROL) 0005 1

45100WHEEL ASSY, STEERING

main45100-28050-03iTCR10..07S..USA199302-199308

4-SPOKE,URETHANE,CHINA SPEC,GRAY,TRIM1#

sub45100-28050

main45100-28050-03iTCR10,20199001-199108

4-SPOKE,URETHANE,GRAY,TRIM1#

sub45100-28050

main45100-28050-04iTCR10,20199001-199108

4-SPOKE,URETHANE,BLUE,TRIM8#

sub45100-28050

main45100-28050-04iTCR10..07S..USA199302-199308

4-SPOKE,URETHANE,CHINA SPEC,BLUE,TRIM8#

sub45100-28050

main45100-28050-05iTCR10..07S..USA199302-199308

4-SPOKE,URETHANE,CHINA SPEC,GREIGE,TRIM4#

sub45100-28050

main45100-28050-06iTCR10,20199001-199108

4-SPOKE,URETHANE,TAN,TRIM4#

sub45100-28050

main45100-28070-B0iTCR10,20..05S199108-199308

4-SPOKE,URETHANE,GRAY,TRIM1#

sub45100-28070

main45100-28070-E1iTCR10,20..05S199108-199308

4-SPOKE,URETHANE,GREIGE,TRIM4#

sub45100-28070

main45100-28070-J0iTCR10,20..05S199108-199308

4-SPOKE,URETHANE,BLUE,TRIM8#

sub45100-28070

main45100-28080-B0iTCR10,20..05S199108-199308

4-SPOKE,URETHANE,W(CRUISE CONTROL),GRAY,TRIM1#

sub45100-28080

main45100-28080-B0iTCR10,20..07S199108-199308

4-SPOKE,URETHANE,GRAY,TRIM1#

sub45100-28080

main45100-28080-E1iTCR10,20..05S199108-199308

4-SPOKE,URETHANE,W(CRUISE CONTROL),GREIGE,TRIM4#

sub45100-28080

main45100-28080-E1iTCR10,20..07S199108-199308

4-SPOKE,URETHANE,GREIGE,TRIM4#

sub45100-28080

main45100-28080-J0iTCR10,20..05S199108-199308

4-SPOKE,URETHANE,W(CRUISE CONTROL),BLUE,TRIM8#

sub45100-28080

main45100-28080-J0iTCR10,20..07S199108-199308

4-SPOKE,URETHANE,BLUE,TRIM8#

sub45100-28080

main45100-28130-B0iTCR10,20..05S199308-199508

4-SPOKE,URETHANE,BLUISH GRAY,TRIM1#

sub45100-28131

main45100-28130-E0iTCR10,20..05S199308-199508

4-SPOKE,URETHANE,MI.GRAIGE,TRIM4#

sub45100-28131

main45100-28130-J0iTCR10,20..05S199308-199408

4-SPOKE,URETHANE,MI.BLUE,TRIM8#

sub45100-28131

main45100-28131-B0iTCR10,20..05S199508-199707

4-SPOKE,URETHANE,BLUISH GRAY,TRIM1#

sub45100-28131

main45100-28131-E0iTCR10,20..05S199508-199707

4-SPOKE,URETHANE,MD.GREIGE,TRIM4#

sub45100-28131

main45100-28140-B0iTCR10,20..07S199308-199508

4-SPOKE,URETHANE,W(CRUISE CONTROL),BLUISH GRAY,TRIM1#

sub45100-28141

main45100-28140-B0iTCR10,20..07S199308-199508

4-SPOKE,URETHANE,BLUISH GRAY,TRIM1#

sub45100-28141

main45100-28140-E0iTCR10,20..05S199308-199508

4-SPOKE,URETHANE,MI.GRAIGE,TRIM4#

sub45100-28141

main45100-28140-E0iTCR10,20..05S199308-199508

4-SPOKE,URETHANE,W(CRUISE CONTROL),MI.GRAIGE,TRIM4#

sub45100-28141

main45100-28140-J0iTCR10,20..05S199308-199408

4-SPOKE,URETHANE,W(CRUISE CONTROL),MI.BLUE,TRIM8#

sub45100-28141

main45100-28140-J0iTCR10,20..07S199308-199408

4-SPOKE,URETHANE,MI.BLUE,TRIM8#

sub45100-28141

main45100-28141-B0iTCR10,20..07S199508-199707

4-SPOKE,URETHANE,BLUISH GRAY,TRIM1#

sub45100-28141

main45100-28141-B0iTCR10,20..07S199508-199707

4-SPOKE,URETHANE,W(CRUISE CONTROL),BLUISH GRAY,TRIM1#

sub45100-28141

main45100-28141-E0iTCR10,20..05S199508-199707

4-SPOKE,URETHANE,MD.GREIGE,TRIM4#

sub45100-28141

main45100-28141-E0iTCR10,20..07S199508-199707

4-SPOKE,URETHANE,W(CRUISE CONTROL),MD.GREIGE,TRIM4#

sub45100-28141

45105PLATE SUB-ASSY, HORN BUTTON CONTACT, NO.1

main45105-28030iTCR10,20199001-199308

main45105-28100iTCR10,20199308-199707

45105BSPACER(FOR HORN BUTTON CONTACT PLATE)

main90561-02001iTCR10,20199001-199108

main90561-03001iTCR10..07S..USA199302-199308

CHINA SPEC

45126PLATE, STEERING WHEEL PAD SET

main45126-28010iTCR10,20199001-199308

45130BUTTON ASSY, HORN

main45130-28140-03iTCR10,20199001-199108

GRAY,TRIM1#

sub45130-28140

main45130-28140-04iTCR10,20199001-199108

BLUE,TRIM8#

sub45130-28140

main45130-28140-06iTCR10,20199001-199108

TAN,TRIM4#

sub45130-28140

main45130-28160-B0iTCR10..07S..USA199302-199308

LIGHT GRAY,TRIM1#

sub45130-28140

main45130-28160-E2iTCR10..07S..USA199302-199308

CHINA SPEC,GREIGE,TRIM4#

sub45130-28140

main45130-28160-J0iTCR10..07S..USA199302-199308

CHINA SPEC,BLUE,TRIM8#

sub45130-28140

main45130-28170-B0iTCR10,20199108-199308

GRAY,TRIM1#

sub45130-28170

main45130-28170-E1iTCR10,20199108-199308

GREIGE,TRIM4#

sub45130-28170

main45130-28170-J0iTCR10,20199108-199308

BLUE,TRIM8#

sub45130-28170

main45130-28300-B0iTCR10,20199308-199508

BLUISH GRAY,TRIM1#

sub45130-28301

main45130-28300-E0iTCR10,20199308-199508

MI.GRAIGE,TRIM4#

sub45130-28301

main45130-28300-J0iTCR10,20199308-199408

MI.BLUE,TRIM8#

sub45130-28301

main45130-28301-B0iTCR10,20199508-199608

BLUISH GRAY,TRIM1#

sub45130-28340

main45130-28301-E0iTCR10,20199508-199608

MD.GREIGE,TRIM4#

sub45130-28340

main45130-28340-B0iTCR10,20199608-199707

BLUISH GRAY,TRIM1#

sub45130-28340

main45130-28340-E0iTCR10,20199608-199707

MD.GREIGE,TRIM4#

sub45130-28340

45142EPIECE, HORN CONTACT

main45142-20060iTCR10,20199001-199308

45156ASEAT, HORN CONTACT SPRING SET

main45156-16010iTCR10..07S..USA199001-199308

45156BSPRING(FOR HORN CONTACT SPRING SET SEAT)

main90501-07092iTCR10,20199001-199308

45176RING, HORN CONTACT

main45176-24020iTCR10,20199001-199308

45180COVER SUB-ASSY, STEERING WHEEL

main45180-28030-03iTCR10..07S..USA199001-199308

GRAY,TRIM1#

sub45180-28030

main45180-28030-04iTCR10,20199001-199308

BLUE,TRIM8#

sub45180-28030

main45180-28030-05iTCR10..07S..USA199302-199308

GREIGE,TRIM4#

sub45180-28030

main45180-28030-06iTCR10,20199001-199108

TAN,TRIM4#

sub45180-28030

45201PNUT, STEERING WHEEL SET

main90179-12071iTCR10,20199306-199707

main90179-12086iTCR10,20199001-199306

9015930015

main90159-30015

9015940208

main90159-40208

9015950310

main90159-50310

9054008014

main90540-08014

9331914010

main93319-14010

9351013010

main93510-13010

17 parts on this diagram · 5 diagrams in section
