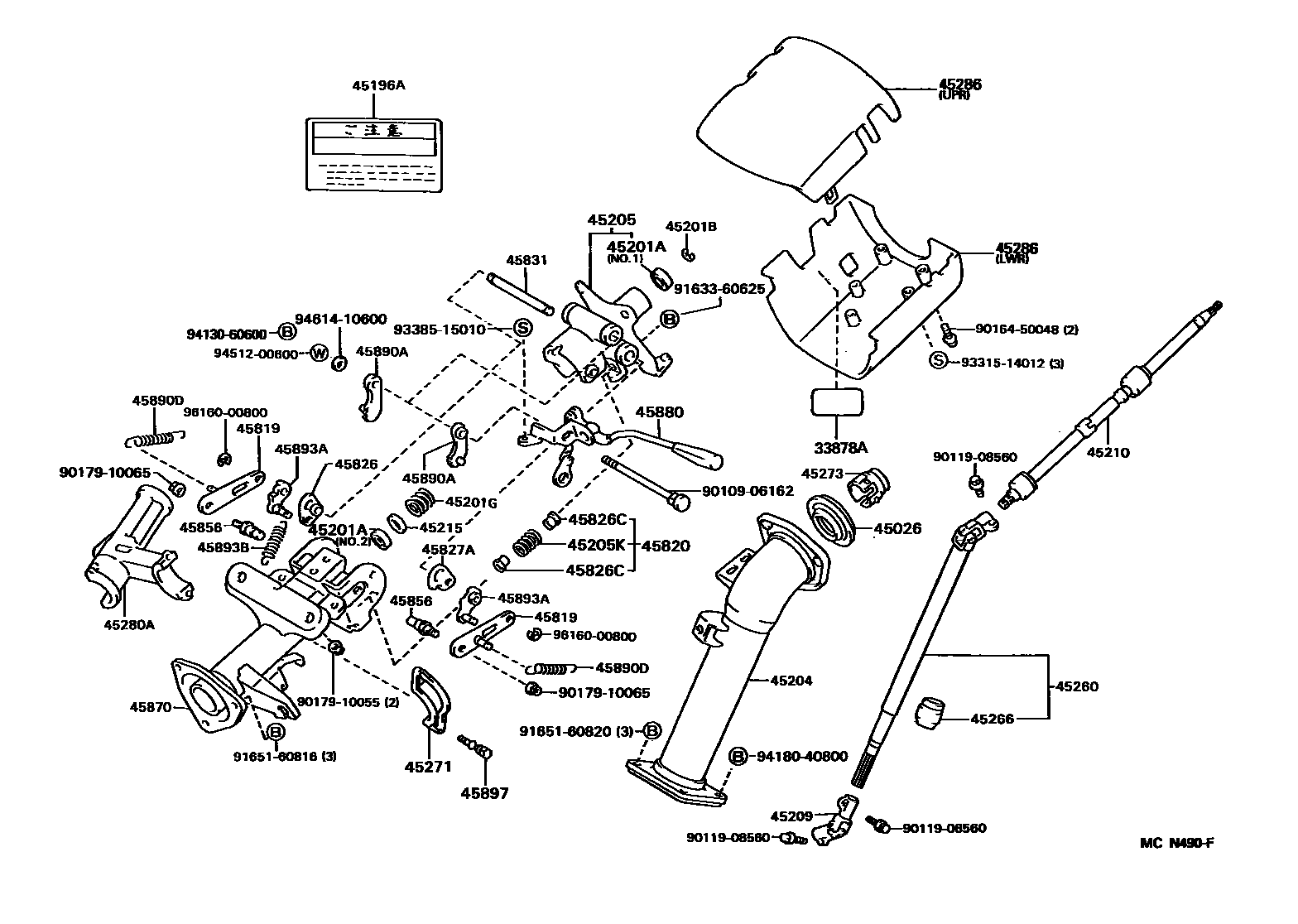

Toyota PREVIA — STEERING COLUMN & SHAFT
33878ALABEL, SHIFT LOCK INFORMATION, NO.2
45026COVER SUB-ASSY, STEERING COLUMN HOLE, NO.2
45196ALABEL, STEERING SHAFT INSTAL CAUTION
45201ABEARING(FOR STEERING MAIN SHAFT)
NO.1
45201BRING, SHAFT SNAP(FOR STEERING MAIN SHAFT)
T=1.20,W(TILT STEERING)
T=1.20
45201GSPRING, COMPRESSION(FOR STEERING MAIN SHAFT)
45204TUBE ASSY, STEERING COLUMN, LOWER
CHINA SPEC
45205TUBE SUB-ASSY, STEERING COLUMN
CHINA SPEC
45205KSPRING(FOR STEERING COLUMN TUBE)
45209YOKE SUB-ASSY, STEERING SLIDING
45210SHAFT ASSY, STEERING MAIN
W(TILT STEERING)
45215COLLAR, MAIN SHAFT BEARING THRUST
45260SHAFT ASSY, STEERING INTERMEDIATE, NO.2
45266COVER, STEERING INTERMEDIATE SHAFT DUST
45271CLAMP, STEERING COLUMN, UPPER
45273BUSH, STEERING MAIN SHAFT
45286COVER, STEERING COLUMN
W(CRUISE CONTROL),GRAY,TRIM1#,LOWER
W(CRUISE CONTROL),BLUE,TRIM8#,LOWER
W(CRUISE CONTROL),TAN,TRIM4#,LOWER
GRAY,TRIM1#,LOWER
BLUE,TRIM8#,LOWER
TAN,TRIM4#,LOWER
W(CRUISE CONTROL),GRAY,TRIM1#,LOWER
W(CRUISE CONTROL),BLUE,TRIM8#,LOWER
W(CRUISE CONTROL),TAN,TRIM4#,LOWER
W(TILT STEERING & *CRC),GRAY,TRIM1#,LOWER
sub45287-28250
W(TILT STEERING & *CRC),BLUE,TRIM8#,LOWER
sub45287-28250
45820SPRING ASSY, TILT STEERING SUPPORT
45826LEVER, STEERING TILT
45826CBUSH(FOR STEERING TILT LEVER)
45827ALEVER, STEERING TILT SUB
45831BOLT, TILT LEVER LOCK, NO.1
45856BOLT, TILT STEERING, NO.2
OD=9.989-9.998
45870TUBE ASSY, STEERING COLUMN
W(TILT STEERING)
W(TILT STEERING)
45890APAWL ASSY, TILT STEERING
RH
LH
45890DSPRING, TENSION(FOR TILT STEERING PAWL ASSY)
LH
RH
45893ASTOPPER, TILT STEERING PAWL
MARK 1,RH
MARK 2,RH
MARK 3,RH
MARK 4,RH
MARK 5,RH
MARK A,LH
MARK B,LH
MARK C,LH
MARK D,LH
MARK E,LH
45893BSPRING, TENSION(FOR TILT STEERING PAWL STOPPER)
45897BOLT, STEERING LOCK SET
9010906162
main90109-06162
9011908560
main90119-08560
9016450048
main90164-50048
9017910055
main90179-10055
9017910065
main90179-10065
9163360625
main91633-60625
9165160816
main91651-60816
9165160820
main91651-60820
9331514012
main93315-14012
9338515010
main93385-15010
9413060600
main94130-60600
9418040800
main94180-40800
9451200600
main94512-00600
9461410600
main94614-10600
9616000800
main96160-00800
47 parts on this diagram · 2 diagrams in section
