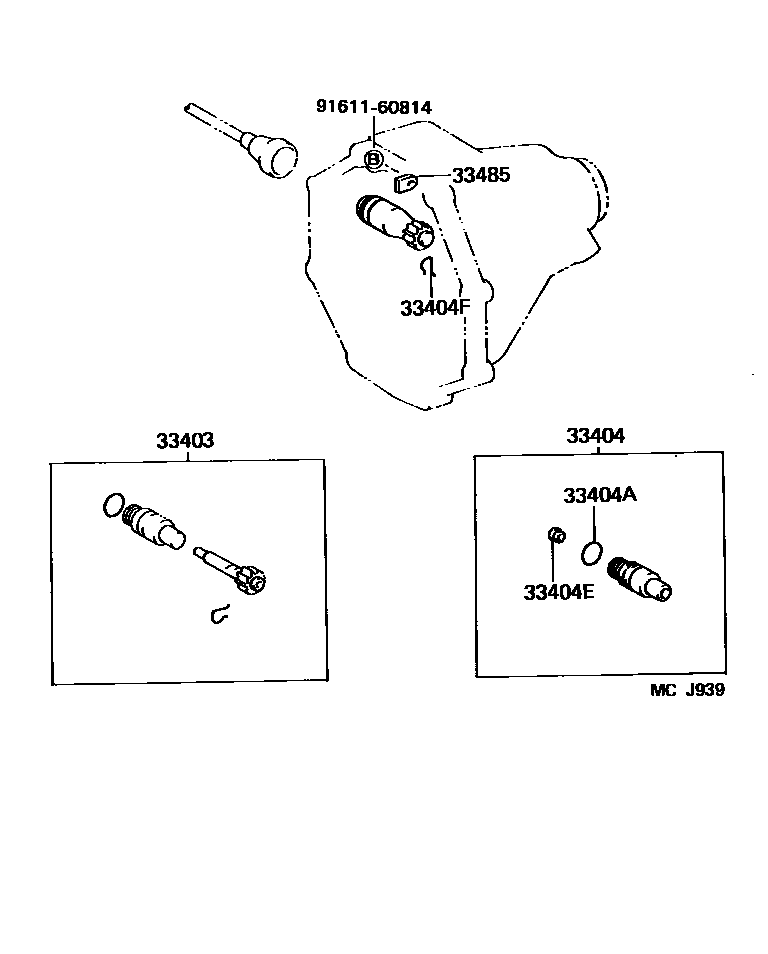

Toyota PREVIA — SPEEDOMETER DRIVEN GEAR (MTM)

0001 1G59 0002 1G57

33403GEAR SUB-ASSY, SPEEDOMETER DRIVEN (MTM)

main33482-29186iTCR20199001-199308

N=20,MARK 20:6

main33482-39045iTCR10..MTM199001-199308

N=20,MARK 20:6

33404SLEEVE SUB-ASSY, SPEEDOMETER SHAFT (MTM)

main33404-35010iTCR10,20..MTM199001-199308

33404ARING, O (FOR MTM SPEEDOMETER SHAFT SLEEVE)

main90301-18018iTCR10,20..MTM199001-199308

33404ESEAL, OIL (FOR MTM SPEEDOMETER SHAFT SLEEVE)

main90310-09001iTCR10,20..MTM199001-199308

33404FCLIP (FOR MTM SPEEDOMETER SHAFT SLEEVE)

main90468-12005iTCR10,20..MTM199001-199308

33485PLATE, SPEEDOMETER SLEEVE LOCK (MTM)

main33485-30020iTCR10,20..MTM199001-199308

9161160814

main91611-60814

7 parts on this diagram · 2 diagrams in section
