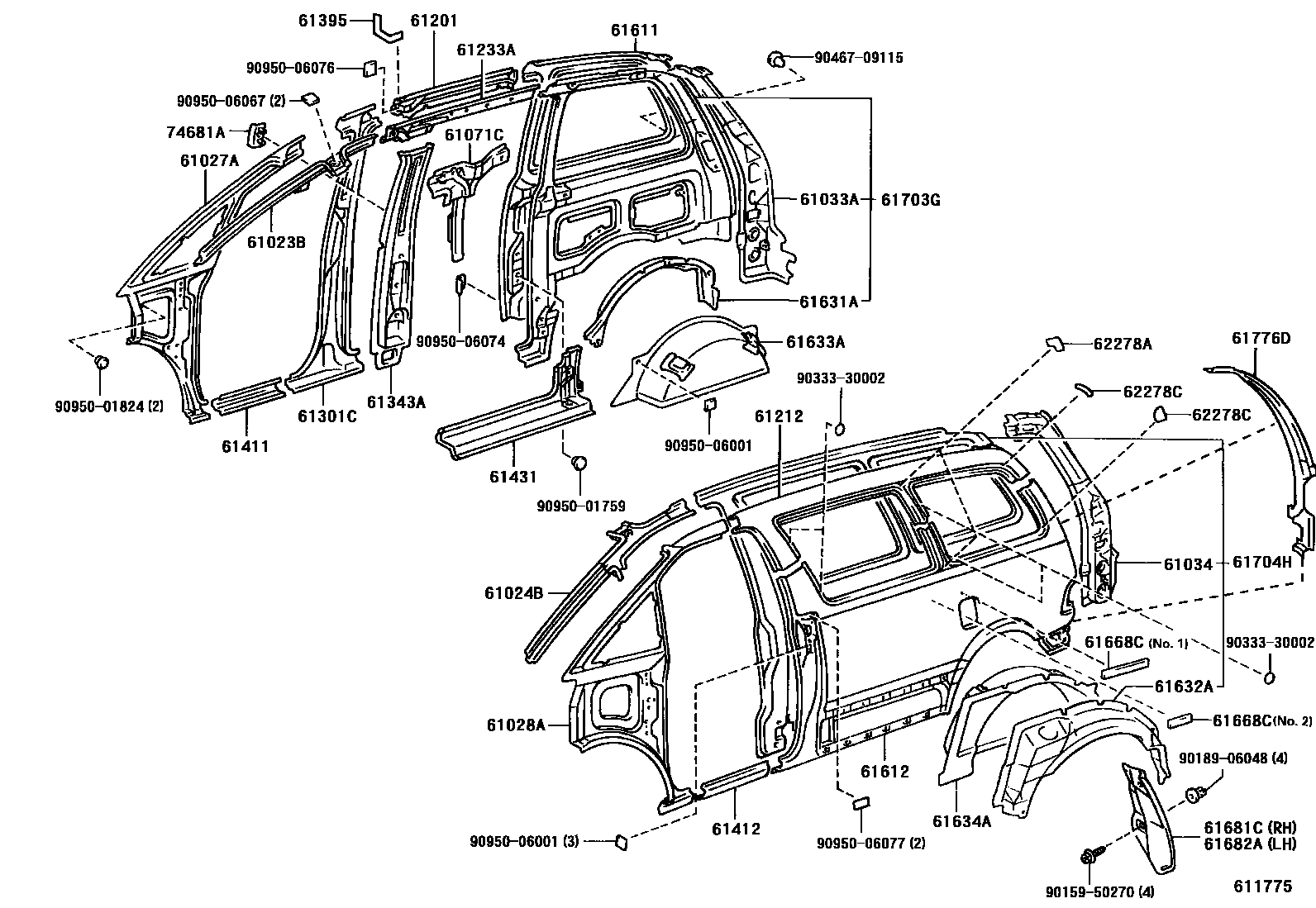

Toyota PREVIA — SIDE MEMBER
61027APILLAR SUB-ASSY, FRONT BODY, OUTER RH
61028APILLAR SUB-ASSY, FRONT BODY, OUTER LH
61033AREINFORCE SUB-ASSY, BACK DOOR OPENING SIDE
61034REINFORCE SUB-ASSY, BACK DOOR OPENING SIDE, LH
61071CREINFORCEMENT SUB-ASSY, SEAT BELT ANCER, UPPER RH
61201RAIL SUB-ASSY, ROOF SIDE, RH
61212RAIL, ROOF SIDE, OUTER LH
61233ARAIL, ROOF SIDE, INNER NO.2 RH
61301CPILLAR SUB-ASSY, CENTER BODY, OUTER RH
W(SECURITY SYSTEM)
61343APILLAR, CENTER BODY, INNER RH
61395SEAL, CENTER BODY PILLAR, RH
61411PANEL, ROCKER, OUTER RH
61412PANEL, ROCKER, OUTER LH
61431PANEL, ROCKER, OUTER REAR RH
61631APANEL, QUARTER WHEEL HOUSE, OUTER RH
61632APANEL, QUARTER WHEEL HOUSE, OUTER LH
61633APANEL, QUARTER WHEEL HOUSE, INNER RH
W(BENCH 2-PASSENGER SEAT)
61634APANEL, QUARTER WHEEL HOUSE, INNER LH
W(BENCH 2-PASSENGER SEAT)
61668CSEAL, QUARTER PANEL, NO.2
280 X 60
280X 60
95 X 40
61681CEXTENSION, REAR WHEEL OPENING, RH
61682AEXTENSION, REAR WHEEL OPENING, LH
61703GPANEL SUB-ASSY, QUARTER, INNER RH
W(CAPTAIN SEAT OR LEATHER SEAT)
W(CAPTAIN SEAT)
W(CAPTAIN SEAT & RETRCTOR)
sub61703-95D11
W(BENCH 2-PASSENGER SEAT)
61704HPANEL SUB-ASSY, QUARTER, INNER LH
sub61704-28220
W(TONNEAU COVER & BENCH2-PASSENGER SEAT)
W(TONNEAU COVER)
sub61704-28210
61776DFRAME, BACK DOOR OPENING SIDE, LH
62278APROTECTOR, SIDE WINDOW
UPPER
LOWER
62278CPROTECTOR, SIDE WINDOW
LOWER
UPPER-RH
UPPER-LH
74681ARETAINER, ASSIST GRIP
9015950270
main90159-50270
9018906048
main90189-06048
9033330002
main90333-30002
9046709115
main90467-09115
9095001759
main90950-01759
9095001824
main90950-01824
9095006001
main90950-06001
9095006067
main90950-06067
9095006074
main90950-06074
9095006076
main90950-06076
9095006077
main90950-06077
42 parts on this diagram · 1 diagram in section
