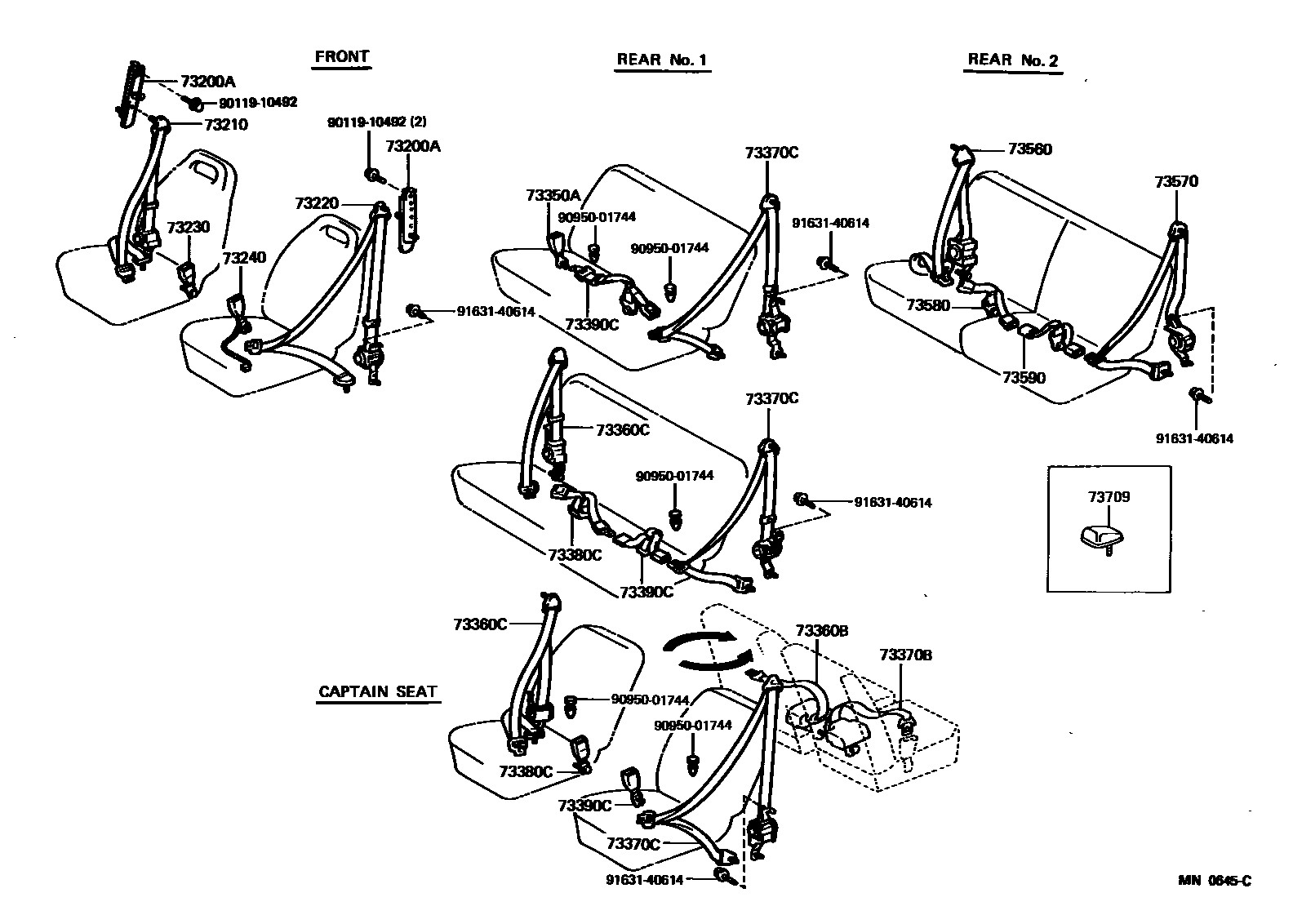

Toyota PREVIA — SEAT BELT
73200AADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR
73210BELT ASSY, FRONT SEAT OUTER, RH
BLUISH GRAY,TRIM1#
OAK,TRIM4#
73220BELT ASSY, FRONT SEAT OUTER, LH
BLUISH GRAY,TRIM1#
OAK,TRIM4#
73230BELT ASSY, FRONT SEAT INNER, RH
73240BELT ASSY, FRONT SEAT INNER, LH
73350ABELT ASSY, REAR NO.1 SEAT LAP TYPE, CENTER
BLUISH GRAY,TRIM1#
MD.GREIGE,TRIM4#
73360BBELT ASSY, REAR SEAT, OUTER
BLUISH GRAY,TRIM1#
OAK,TRIM4#
73360CBELT ASSY, REAR NO.1 SEAT, OUTER RH
CHINA SPEC & W(CAPTAIN SEAT),LIGHT GRAY,TRIM1#
sub73360-28330
CHINA SPEC & W(CAPTAIN SEAT),LIGHT GREIGE,TRIM4#
sub73360-28330
BLUISH GRAY,TRIM1#
OAK,TRIM4#
73370BBELT ASSY, REAR SEAT, OUTER
BLUISH GRAY,TRIM1#
OAK,TRIM4#
73370CBELT ASSY, REAR NO.1 SEAT, OUTER LH
CHINA SPEC & W(CAPTAIN SEAT),LIGHT GRAY,TRIM1#
sub73370-28240
CHINA SPEC & W(CAPTAIN SEAT),LIGHT GREIGE,TRIM4#
sub73370-28240
BLUISH GRAY,TRIM1#
OAK,TRIM4#
73380CBELT ASSY, REAR NO.1 SEAT, INNER RH
73390CBELT ASSY, REAR NO.1 SEAT, INNER LH
BLUISH GRAY,TRIM1#
OAK,TRIM4#
W(BENCH 2-PASSENGER SEAT),LIGHT GRAY,TRIM1#
sub73390-95D00
W(BENCH 2-PASSENGER SEAT),LIGHT BLUE,TRIM8#
sub73390-95D00
W(BENCH 2-PASSENGER SEAT),LIGHT TAN,TRIM4#
sub73390-95D00
W(BENCH 2-PASSENGER SEAT),LIGHT GREIGE,TRIM4#
sub73390-95D00
W(BENCH 2-PASSENGER SEAT),GREIGE,TRIM8#
sub73390-95D00
73560BELT ASSY, REAR NO.2 SEAT, OUTER RH
BLUISH GRAY,TRIM1#
OAK,TRIM4#
73570BELT ASSY, REAR NO.2 SEAT, OUTER LH
BLUISH GRAY,TRIM1#
OAK,TRIM4#
73580BELT ASSY, REAR NO.2 SEAT, INNER RH
CHINA SPEC,LIGHT GRAY,TRIM1#
CHINA SPEC,LIGHT GREIGE,TRIM4#
BLUISH GRAY,TRIM1#
OAK,TRIM4#
73590BELT ASSY, REAR NO.2 SEAT, INNER LH
BLUISH GRAY,TRIM1#
OAK,TRIM4#
73709BRACKET SUB-ASSY, TETHER ANCHOR
9011910492
main90119-10492
9095001744
main90950-01744
9163140614
main91631-40614
20 parts on this diagram · 1 diagram in section
