Toyota PREVIA — ROOF PANEL & BACK PANEL

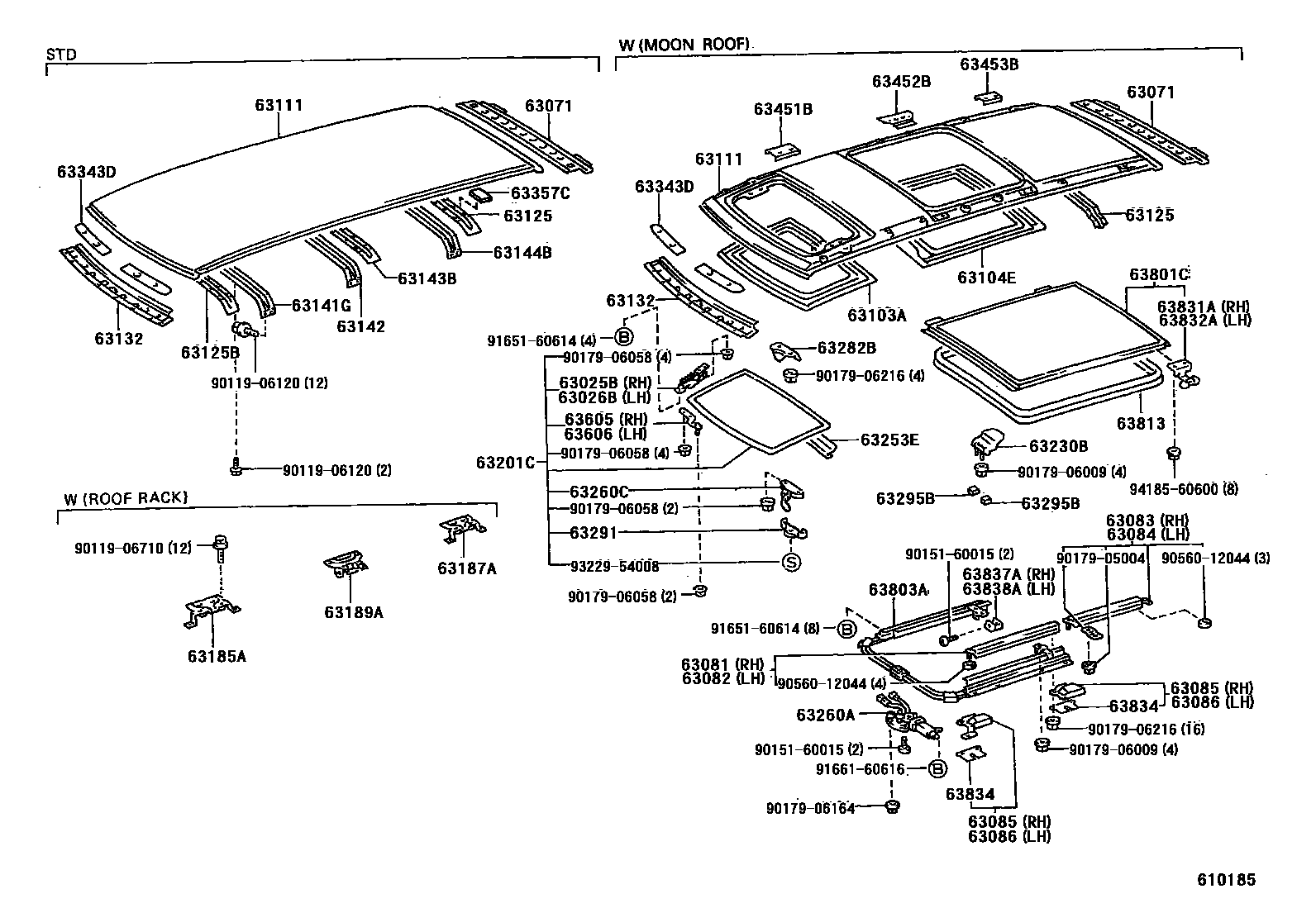

Parts diagram
63025BLINK SUB-ASSY, TILT ROOF, RH
main63025-95D00i199001-199707
63026BLINK SUB-ASSY, TILT ROOF, LH
main63026-95D00i199001-199707
63071FRAME SUB-ASSY, BACK DOOR OPENING, UPPER
main63071-95D00i199001-199707
63081RAIL SUB-ASSY, REAR SLIDE ROOF, FRONT RH
main63081-28020i199608-199707
main63081-95D00i199001-199608
63082RAIL SUB-ASSY, REAR SLIDE ROOF, FRONT LH
main63082-28020i199608-199707
main63082-95D00i199001-199608
63083RAIL SUB-ASSY, REAR SLIDE ROOF, REAR RH
main63083-28030i199608-199707
main63083-95D00i199001-199608
63084RAIL SUB-ASSY, REAR SLIDE ROOF, REAR LH
main63084-28030i199608-199707
main63084-95D00i199001-199608
63085GUIDE SUB-ASSY, REAR SLIDE ROOF LIFT, RH
main63085-28020i199608-199707
FRONT
main63085-95D00i199001-199608
FRONT
main63085-95D01i199001-199707
REAR
63086GUIDE SUB-ASSY, REAR SLIDE ROOF LIFT, LH
main63086-28020i199608-199707
FRONT
main63086-95D00i199001-199608
FRONT
main63086-95D01i199001-199707
REAR
63103AREINFORCEMENT SUB-ASSY, ROOF PANEL
main63103-95D00i199001-199707
63104EREINFORCEMENT SUB-ASSY, ROOF PANEL, REAR
main63104-28030i199608-199707
main63104-95D00i199001-199608
sub63104-28030
63111PANEL, ROOF
main63111-28050i199207-199707
sub63111-28051
sub63132-28050
sub63132-28060
main63111-28150i199608-199707
W(MOON ROOF)
main63111-95D01i199001-199207
sub63111-28050
sub75555-28010
sub75556-28010
sub90179-05020
main63111-95D02i199001-199608
W(SUNROOF)
sub63111-28150
sub90333-25003
63125REINFORCEMENT, ROOF PANEL, NO.2
main63125-95D00i199001-199707
main63125-95D01i199001-199707
W(TWIN SUN ROOF)
63125BREINFORCEMENT, ROOF PANEL, FRONT
main63122-95D00i199001-199707
63132PANEL, WINDSHIELD HEADER, INNER
main63132-95D00i199001-199707
sub63132-28050
63141GREINFORCEMENT, ROOF PANEL, NO.1
main63141-95D01i199001-199707
63142REINFORCEMENT, ROOF PANEL, NO.2
main63142-95D00i199001-199707
63143BREINFORCEMENT, ROOF PANEL, NO.3
main63143-95D00i199001-199707
63144BREINFORCEMENT, ROOF PANEL, NO.4
main63144-95D00i199001-199707
63185ABRACKET, ROOF RACK, FRONT RH
main63185-28010i199001-199707
63187ABRACKET, ROOF RACK, REAR
main63187-28010i199001-199707
63189ABRACKET, ROOF RACK, CENTER
main63189-28010i199001-199707
63201CGLASS SUB-ASSY, TILT ROOF
main63201-28180i199308-199707
*LAM,T=4.7,CLEAR
main63201-95D00i199001-199308
*TL,T=4.7
63230BPANEL ASSY, ROOF WIND DEFLECTOR
main63230-28010i199001-199707
63253EDAM, ROOF WINDOW, NO.3
main63253-28010i199001-199305
sub63253-28011
main63253-28011i199305-199707
63260AGEAR SUB-ASSY, SLIDING ROOF DRIVE
main63260-28050i199104-199608
main63260-28080i199608-199707
main63260-95D00i199001-199104
sub63260-28050
63260CHANDLE ASSY, TILT ROOF LOCK
main63260-95D01i199001-199707
63282BSTRIKER, TILT ROOF LOCK
main63282-95D00i199001-199707
63291GARNISH, ROOF WINDOW LOCK, OUTER
main63291-95D00i199001-199707
63295BPAD, ROOF WIND DEFLECTOR PANEL
main63295-28020i199001-199707
63343DPAD, ROOF SILENCER, NO.3
main63343-95D00i199001-199707
63357CSILENCER, ROOF
main63357-28010i199308-199707
63451BREINFORCEMENT, ROOF RACK, NO.1
main63451-28020i199001-199707
63452BREINFORCEMENT, ROOF RACK, NO.2
main63452-28010i199001-199707
63453BREINFORCEMENT, ROOF RACK, NO.3
main63453-28010i199001-199707
63605HINGE SUB-ASSY, TILT ROOF, RH
main63605-95D00i199001-199707
63606HINGE SUB-ASSY, TILT ROOF, LH
main63606-95D00i199001-199707
63801CGLASS SUB-ASSY, REAR SLIDE ROOF
main63801-28060i199308-199707
*LAM,T=4.7,CLEAR
main63801-95D00i199001-199308
*TL,T=4.7,BLUE
63803ACABLE SUB-ASSY, REAR SLIDE ROOF DRIVE
main63803-95D00i199001-199707
63813WEATHERSTRIP, REAR SLIDE ROOF
main63813-28020i199205-199707
main63813-95D00i199001-199205
sub63813-28020
63831ASHOE, REAR SLIDE ROOF, RH
main60383-28020i199001-199707
63832ASHOE, REAR SLIDE ROOF, LH
main60384-28020i199001-199707
63834PACKING, REAR SLIDE ROOF GUIDE
main63834-28010i199608-199707
W(SUN ROOF & ROOF RAIL)
main63834-95D00i199004-199707
63837AGARNISH, REAR SLIDE ROOF, RH
main63837-95D00i199001-199707
63838AGARNISH, REAR SLIDE ROOF, LH
main63838-95D00i199001-199707
9011906120
main90119-06120
9011906710
main90119-06710
9015160015
main90151-60015
9017905004
main90179-05004
9017906009
main90179-06009
9017906058
main90179-06058
9017906164
main90179-06164
9017906216
main90179-06216
9056012044
main90560-12044
9165160614
main91651-60614
9166160616
main91661-60616
9322954008
main93229-54008
9418560600
main94185-60600

58 parts on this diagram · 1 diagram in section
