Toyota PREVIA — ROOF HEADLINING & SILENCER PAD

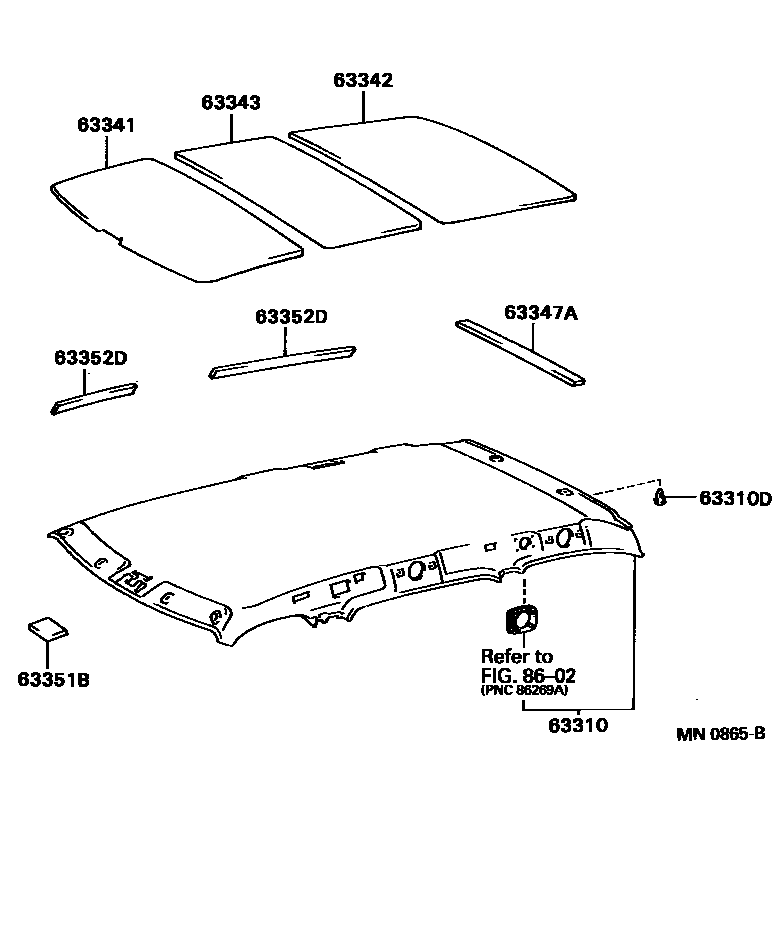

Parts diagram
63310HEADLINING ASSY, ROOF
main63310-28040-03i199003-199005
W(DUAL MOON ROOF),LIGHT GRAY,TRIM1#
sub63310-28120
main63310-28040-04i199003-199005
W(DUAL MOON ROOF),LIGHT BLUE,TRIM8#
sub63310-28120
main63310-28040-06i199003-199005
W(DUAL MOON ROOF),LIGHT TAN,TRIM4#
sub63310-28120
main63310-28080-03i199005-199108
W(DUAL MOON ROOF & SPEAKER),LIGHT GRAY,TRIM1#
sub63310-28081
main63310-28080-04i199005-199108
W(DUAL MOON ROOF & SPEAKER),LIGHT BLUE,TRIM8#
sub63310-28081
main63310-28080-06i199005-199108
W(DUAL MOON ROOF & SPEAKER),LIGHT TAN,TRIM4#
sub63310-28081
main63310-28090-03i199005-199112
W(DUAL MOON ROOF & DUAL AIR CONDITIONER),LIGHT GRAY,TRIM1#
sub63310-28092
main63310-28090-04i199005-199112
W(DUAL MOON ROOF & DUAL AIR CONDITIONER),LIGHT BLUE,TRIM8#
sub63310-28092
main63310-28090-06i199005-199108
W(DUAL MOON ROOF & DUAL AIR CONDITIONER),LIGHT TAN,TRIM4#
sub63310-28092
main63310-28090-E0i199108-199112
W(DUAL MOON ROOF & DUAL AIR CONDITIONER),LIGHT GREIGE,TRIM4#
sub63310-28092
main63310-28090-E0i199108-199112
W(DUAL MOON ROOF),LIGHT GREIGE,TRIM4#
sub63310-28092
main63310-28091-B0i199112-199308
W(DUAL MOON ROOF),LIGHT GRAY,TRIM1#
sub63310-28091
main63310-28091-B0i199112-199308
W(DUAL MOON ROOF & DUAL AIR CONDITIONER),LIGHT GRAY,TRIM1#
sub63310-28091
main63310-28091-B1i199308-199707
W(DUAL MOON ROOF),GRAY,TRIM1#
sub63310-28091
main63310-28091-B1i199308-199508
W(DUAL MOON ROOF & DUAL AIR CONDITIONER),GRAY,TRIM1#
sub63310-28091
main63310-28091-E0i199112-199308
W(DUAL MOON ROOF & DUAL AIR CONDITIONER),LIGHT GREIGE,TRIM4#
sub63310-28091
main63310-28091-E0i199112-199308
W(DUAL MOON ROOF),LIGHT GREIGE,TRIM4#
sub63310-28091
main63310-28091-E1i199308-199508
W(DUAL MOON ROOF & DUAL AIR CONDITIONER),GREIGE,TRIM4#
sub63310-28091
main63310-28091-E1i199308-199707
W(DUAL MOON ROOF),GREIGE,TRIM4#
sub63310-28091
main63310-28091-J0i199112-199308
W(DUAL MOON ROOF),LIGHT BLUE,TRIM8#
sub63310-28091
main63310-28091-J0i199112-199308
W(DUAL MOON ROOF & DUAL AIR CONDITIONER),LIGHT BLUE,TRIM8#
sub63310-28091
main63310-28091-J1i199308-199408
W(DUAL MOON ROOF & DUAL AIR CONDITIONER),BLUE,TRIM8#
sub63310-28091
main63310-28091-J1i199308-199408
W(DUAL MOON ROOF),BLUE,TRIM8#
sub63310-28091
main63310-28100-03i199005-199112
W(DUAL MOON ROOF & SPEAKER & DUAL AIR CONDITIONER),LIGHT GRAY,TRIM1#
sub63310-28102
main63310-28100-04i199005-199112
W(DUAL MOON ROOF & SPEAKER & DUAL AIR CONDITIONER),LIGHT BLUE,TRIM8#
sub63310-28102
main63310-28100-06i199005-199108
W(DUAL MOON ROOF & SPEAKER & DUAL AIR CONDITIONER),LIGHT TAN,TRIM4#
sub63310-28102
main63310-28100-E0i199108-199112
W(DUAL MOON ROOF & SPEAKER),LIGHT GREIGE,TRIM4#
sub63310-28102
main63310-28101-10i199112-199308
W(DUAL MOON ROOF & SPEAKER),LIGHT GRAY,TRIM1#
sub63310-28101
main63310-28101-B1i199308-199707
W(DUAL MOON ROOF & SPEAKER),GRAY,TRIM1#
sub63310-28101
main63310-28101-E0i199112-199308
W(DUAL MOON ROOF & SPEAKER),LIGHT GREIGE,TRIM4#
sub63310-28101
main63310-28101-E1i199308-199707
W(DUAL MOON ROOF & SPEAKER),GREIGE,TRIM4#
sub63310-28101
main63310-28101-J0i199112-199308
W(DUAL MOON ROOF & SPEAKER),LIGHT BLUE,TRIM8#
sub63310-28101
main63310-28101-J1i199308-199408
W(DUAL MOON ROOF & SPEAKER),BLUE,TRIM8#
sub63310-28101
main63310-28120-03i199005-199108
W(DUAL MOON ROOF),LIGHT GRAY,TRIM1#
sub63310-28121
main63310-28120-04i199005-199108
W(DUAL MOON ROOF),LIGHT BLUE,TRIM8#
sub63310-28121
main63310-28120-06i199005-199108
W(DUAL MOON ROOF),LIGHT TAN,TRIM4#
sub63310-28121
main63310-95D04-03i199001-199005
W(DUAL MOON ROOF & DUAL AIR CONDITIONER),LIGHT GRAY,TRIM1#
sub63310-28090
main63310-95D04-04i199001-199005
W(DUAL MOON ROOF & DUAL AIR CONDITIONER),LIGHT BLUE,TRIM8#
sub63310-28090
main63310-95D04-06i199001-199005
W(DUAL MOON ROOF & DUAL AIR CONDITIONER),LIGHT TAN,TRIM4#
sub63310-28090
main63310-95D05-03i199001-199005
W(DUAL MOON ROOF & SPEAKER),LIGHT GRAY,TRIM1#
sub63310-28080
main63310-95D05-04i199001-199005
W(DUAL MOON ROOF & SPEAKER),LIGHT BLUE,TRIM8#
sub63310-28080
main63310-95D05-06i199001-199005
W(DUAL MOON ROOF & SPEAKER),LIGHT TAN,TRIM4#
sub63310-28080
main63310-95D06-03i199001-199005
W(DUAL MOON ROOF & SPEAKER & DUAL AIR CONDITIONER),LIGHT GRAY,TRIM1#
sub63310-28100
main63310-95D06-04i199001-199005
W(DUAL MOON ROOF & SPEAKER & DUAL AIR CONDITIONER),LIGHT BLUE,TRIM8#
sub63310-28100
main63310-95D06-06i199001-199005
W(DUAL MOON ROOF & SPEAKER & DUAL AIR CONDITIONER),LIGHT TAN,TRIM4#
sub63310-28100
main63311-95D01-03i199001-199108
LIGHT GRAY,TRIM1#
main63311-95D01-04i199001-199108
LIGHT BLUE,TRIM8#
main63311-95D01-06i199001-199108
LIGHT TAN,TRIM4#
main63311-95D03-03i199001-199308
W(FRONT ROOM LAMP),LIGHT GRAY,TRIM1#
sub63311-95D03
main63311-95D03-03i199108-199308
LIGHT GRAY,TRIM1#
sub63311-95D03
main63311-95D03-04i199108-199308
LIGHT BLUE,TRIM8#
sub63311-95D03
main63311-95D03-04i199001-199308
W(FRONT ROOM LAMP),LIGHT BLUE,TRIM8#
sub63311-95D03
main63311-95D03-05i199108-199308
LIGHT GREIGE,TRIM4#
sub63311-95D03
main63311-95D03-06i199001-199108
LIGHT TAN,TRIM4#
sub63311-95D03
main63311-95D03-06i199001-199108
W(FRONT ROOM LAMP),LIGHT TAN,TRIM4#
sub63311-95D03
main63311-95D03-B0i199308-199707
GRAY,TRIM1#
sub63311-95D03
main63311-95D03-E0i199308-199707
GREIGE,TRIM4#
sub63311-95D03
main63311-95D03-E0i199308-199508
W(FRONT ROOM LAMP),GREIGE,TRIM4#
sub63311-95D03
main63311-95D03-J0i199308-199408
BLUE,TRIM8#
sub63311-95D03
main63311-95D03-J0i199308-199408
W(FRONT ROOM LAMP),BLUE,TRIM8#
sub63311-95D03
main63311-95D04-03i199001-199308
W(FRONT ROOM LAMP & DUAL AIR CONDITIONER),LIGHT GRAY,TRIM1#
sub63311-95D04
main63311-95D04-03i199001-199308
W(DUAL AIR CONDITIONER),LIGHT GRAY,TRIM1#
sub63311-95D04
main63311-95D04-03i199001-199308
LIGHT GRAY,TRIM1#
sub63311-95D04
main63311-95D04-04i199001-199308
W(FRONT ROOM LAMP & DUAL AIR CONDITIONER),LIGHT BLUE,TRIM8#
sub63311-95D04
main63311-95D04-04i199001-199308
LIGHT BLUE,TRIM8#
sub63311-95D04
main63311-95D04-04i199001-199308
W(DUAL AIR CONDITIONER),LIGHT BLUE,TRIM8#
sub63311-95D04
main63311-95D04-06i199001-199108
W(FRONT ROOM LAMP & DUAL AIR CONDITIONER),LIGHT TAN,TRIM4#
sub63311-95D04
main63311-95D04-06i199001-199108
W(DUAL AIR CONDITIONER),LIGHT TAN,TRIM4#
sub63311-95D04
main63311-95D04-41i199108-199308
W(DUAL AIR CONDITIONER),LIGHT GREIGE,TRIM4#
sub63311-95D04
main63311-95D04-41i199108-199308
LIGHT GREIGE,TRIM4#
sub63311-95D04
main63311-95D04-B0i199308-199707
W(DUAL AIR CONDITIONER),GRAY,TRIM1#
sub63311-95D04
main63311-95D04-B0i199308-199707
GRAY,TRIM1#
sub63311-95D04
main63311-95D04-E0i199308-199508
W(FRONT ROOM LAMP & DUAL AIR CONDITIONER),GREIGE,TRIM4#
sub63311-95D04
main63311-95D04-E0i199308-199707
W(DUAL AIR CONDITIONER),GREIGE,TRIM4#
sub63311-95D04
main63311-95D04-E0i199401-199707
GREIGE,TRIM4#
sub63311-95D04
main63311-95D04-J0i199308-199408
W(DUAL AIR CONDITIONER),BLUE,TRIM8#
sub63311-95D04
main63311-95D04-J0i199308-199408
BLUE,TRIM8#
sub63311-95D04
main63311-95D04-J0i199308-199408
W(FRONT ROOM LAMP & DUAL AIR CONDITIONER),BLUE,TRIM8#
sub63311-95D04
main63311-95D05-03i199001-199108
W(SPEAKER),LIGHT GRAY,TRIM1#
main63311-95D05-04i199001-199108
W(SPEAKER),LIGHT BLUE,TRIM8#
main63311-95D05-06i199001-199108
W(SPEAKER),LIGHT TAN,TRIM4#
main63311-95D06-03i199001-199308
W(SPEAKER & DUAL AIR CONDITIONER),LIGHT GRAY,TRIM1#
sub63311-95D06
main63311-95D06-04i199001-199308
W(SPEAKER & DUAL AIR CONDITIONER),LIGHT BLUE,TRIM8#
sub63311-95D06
main63311-95D06-06i199001-199108
W(SPEAKER & DUAL AIR CONDITIONER),LIGHT TAN,TRIM4#
sub63311-95D06
main63311-95D06-41i199108-199308
W(SPEAKER),LIGHT GREIGE,TRIM4#
sub63311-95D06
main63311-95D06-B1i199308-199707
W(SPEAKER),GRAY,TRIM1#
sub63311-95D06
main63311-95D06-E1i199308-199707
W(SPEAKER),GREIGE,TRIM4#
sub63311-95D06
main63311-95D06-J1i199308-199408
W(SPEAKER),BLUE,TRIM8#
sub63311-95D06
63310DCLIP, ROOF HEADLINING
main90467-11021-04i199001-199006
LIGHT BLUE,TRIM8#
sub90467-11068
main90467-11021-13i199001-199006
LIGHT GRAY,TRIM1#
sub90467-11068
main90467-11021-16i199001-199006
LIGHT TAN,TRIM4#
sub90467-11068
main90467-11068-03i199006-199308
LIGHT GRAY,TRIM1#
sub90467-11068
main90467-11068-04i199006-199308
LIGHT BLUE,TRIM8#
sub90467-11068
main90467-11068-05i199108-199308
LIGHT GREIGE,TRIM4#
sub90467-11068
main90467-11068-06i199006-199108
LIGHT TAN,TRIM4#
sub90467-11068
main90467-11068-B8i199308-199707
GRAY,TRIM1#
sub90467-11068
main90467-11068-L1i199308-199707
GREIGE,TRIM4#
sub90467-11068
main90467-11068-R4i199308-199408
BLUE,TRIM8#
sub90467-11068
63341PAD, ROOF SILENCER, NO.1
main63341-28020i199112-199707
main63341-95D03i199001-199112
sub63341-28020
63342PAD, ROOF SILENCER, NO.2
main63342-28010i199112-199707
main63342-95D01i199001-199112
sub63342-28010
63343PAD, ROOF SILENCER, NO.3
main63342-28020i199112-199707
main63342-95D02i199001-199112
sub63342-28020
63347APAD, ROOF SILENCER, NO.7
main63347-95D00i199001-199707
63351BPAD, ROOF HEADLINING
main63351-28030i199001-199206
W(SUN ROOF & DUAL AIR CONDITIONER)
main63351-28030i199001-199108
W(DUAL AIR CONDITIONER),L=200
main63351-28030i199001-199108
W(FRONT ROOM LAMP & DUAL AIR CONDITIONER),L=200
main63351-28030i199003-199206
W(SUN ROOF)
main63351-28030i199001-199707
main63351-28040i199208-199308
W(DUAL AIR CONDITIONER),L=640
main63351-28040i199208-199308
L=640
63352DPAD, ROOF HEADLINING, NO.2
main63351-28040i199001-199206
8602

9 parts on this diagram · 2 diagrams in section
