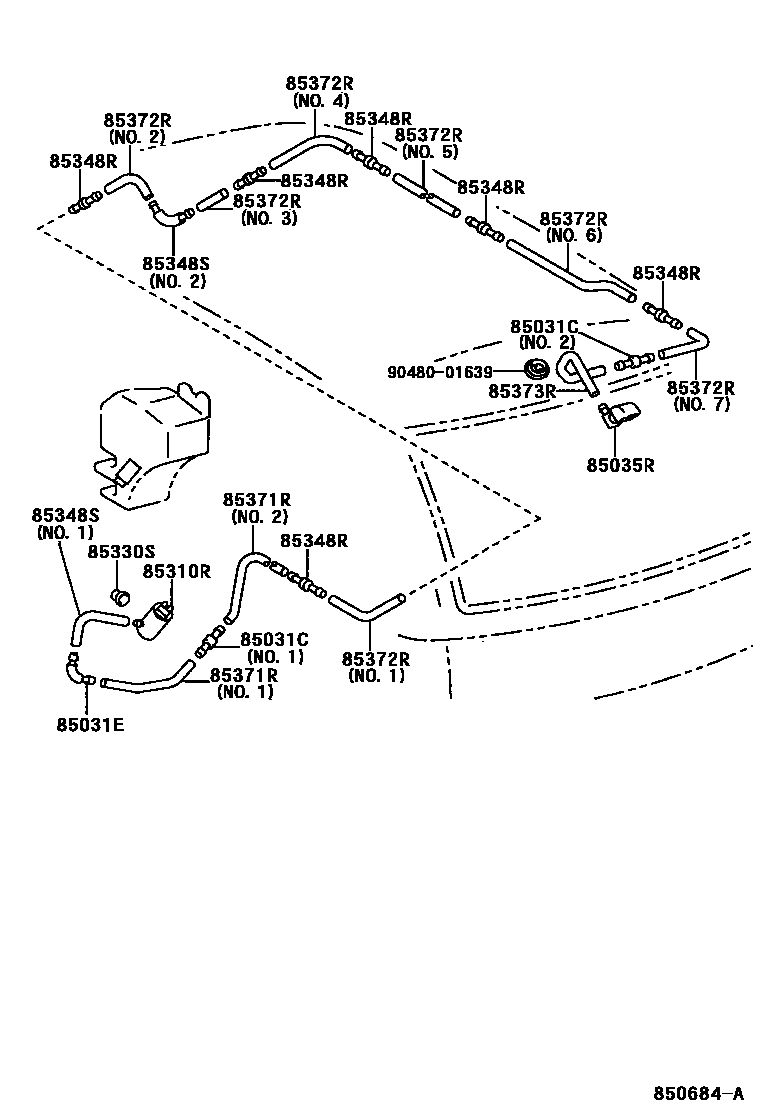

Toyota PREVIA — REAR WASHER
85031CVALVE SUB-ASSY, WASHER
85031EVALVE SUB-ASSY REAR WASHER, NO.2
85035RNOZZLE SUB-ASSY, REAR WASHER
85310RMOTOR ASSY, REAR WASHER
85330SBUSH, REAR WASHER JAR
85348RJOINT, REAR WASHER HOSE, NO.1
W(ANTENNA)
85348SJOINT, REAR WASHER ELBOW, NO.1
NO.1
NO.2
NO.1
85371RHOSE, REAR WASHER (FROM MOTOR TO JOINT)
L=1450(*H,L=600)
L=1450(*H,L=570)
85372RHOSE, REAR WASHER (FROM JOINT TO JOINT OR NOZZLE)
L=1450(*H,L=250),NO.3
L=1450(*H,L=150),NO.2
L=1450(*H,L=1140)
L=1450(*H,L=90)
L=1450(*H,L=200),NO.7
L=1450(*H,L=180)
L=1450(*H,L=820)
L=1450(*H,L=230),NO.5
L=1000(*H,L=280),NO.3
L=1000(*H,L=100),NO.7,NO.2
L=3300(*H,L=2820),NO.4
L=2120,NO.6
L=3000
L=1800(*H,L=340),NO.1,NO.4
85373RHOSE, REAR WASHER (FROM JOINT TO NOZZLE)
L=1000(*H,L=250)
9048001639
main90480-01639
11 parts on this diagram · 2 diagrams in section
