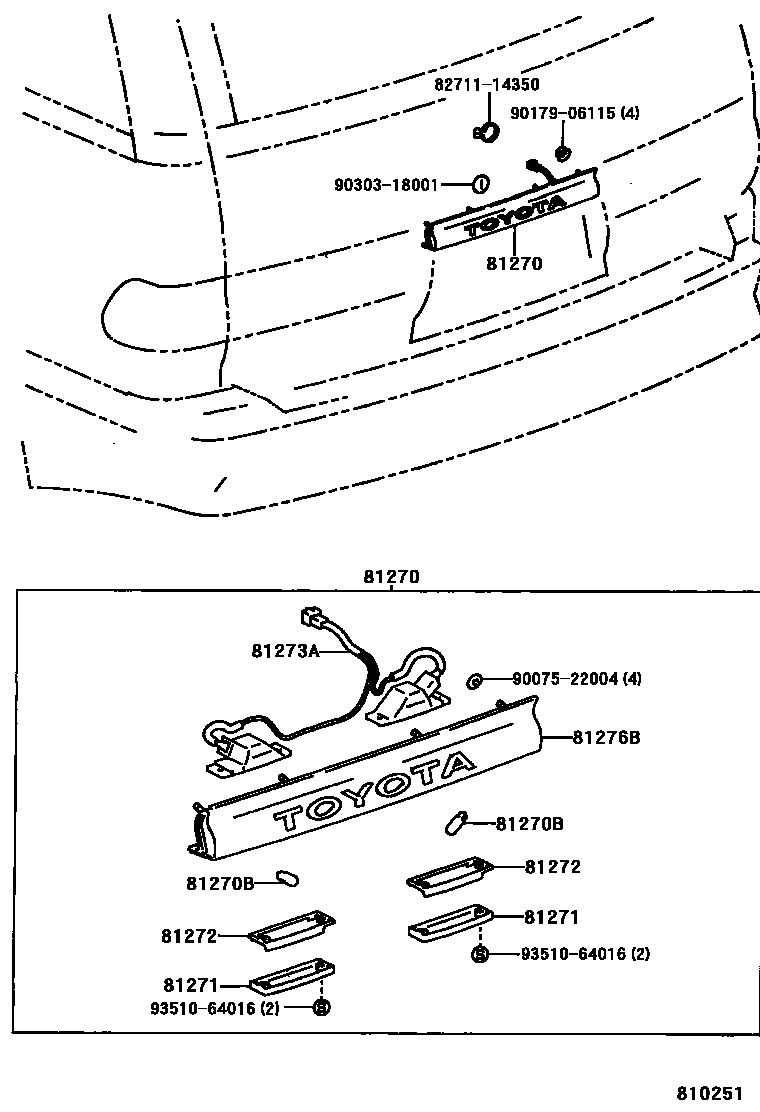

Toyota PREVIA — REAR LICENSE PLATE LAMP

81270LAMP ASSY, LICENSE PLATE

main81270-28010iTCR10,20199005-199707

main81270-95D03iTCR10,20199001-199005

sub81270-28010

81270BBULB (FOR LICENSE PLATE LAMP)

main99132-12050iTCR10,20199001-199707

12V 5W

81271LENS, LICENSE PLATE LAMP

main81271-95J07iTCR10,20199001-199707

81272GASKET, LICENSE PLATE LAMP LENS

main81272-95J07iTCR10,20199001-199707

81273ABODY, LICENSE PLATE LAMP

main81273-95D03iTCR10,20199001-199707

81276BCOVER, LICENSE PLATE LAMP

main81276-28010iTCR10,20199005-199707

main81276-95D03iTCR10,20199001-199005

sub81276-28010

8271114350WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-14350

9007522004

main90075-22004

9017906115

main90179-06115

9030318001

main90303-18001

9351064016

main93510-64016

11 parts on this diagram · 1 diagram in section
