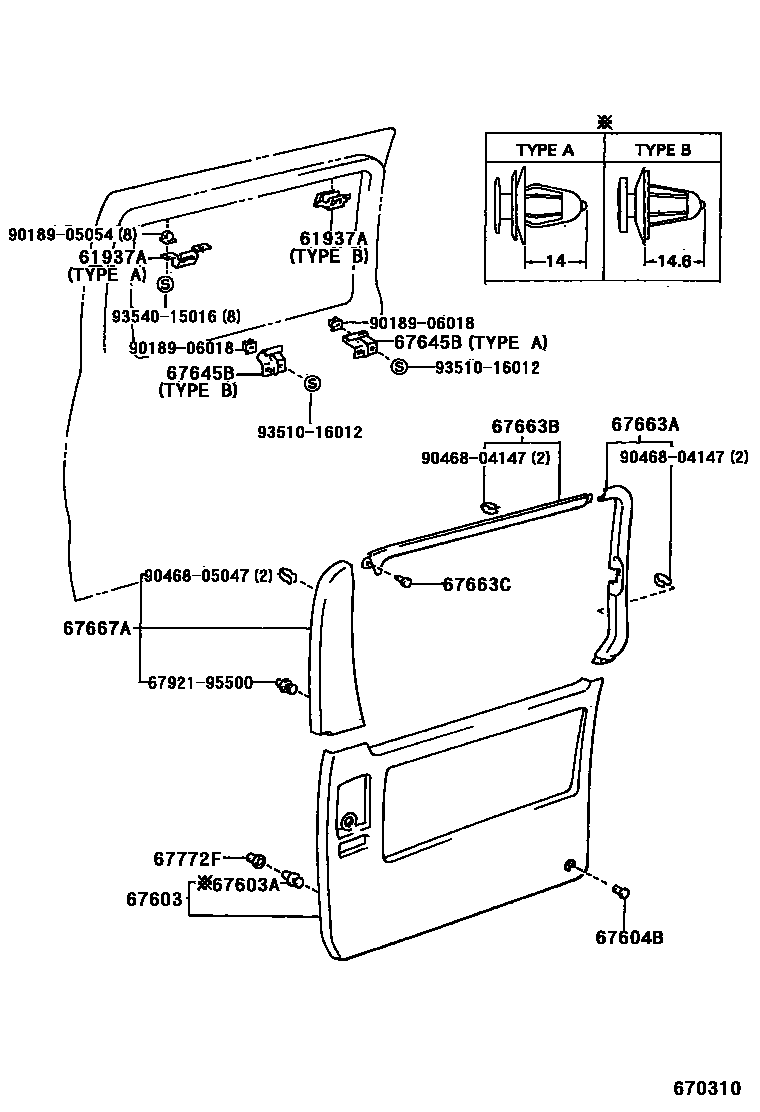

Toyota PREVIA — REAR DOOR PANEL & GLASS
61937ABRACKET, SIDE WINDOW GARNISH
TYPE A:REFER TO ILLUSTRATION
TYPE B:REFER TO ILLUSTRATION
67603BOARD SUB-ASSY, REAR DOOR TRIM, RH
GRAY,TRIM1#
GREIGE,TRIM4#
BLUE,TRIM8#
BLUISH GRAY,TRIM1#
MD.GREIGE,TRIM4#
LIGHT GRAY,TRIM1#
LIGHT BLUE,TRIM8#
LIGHT TAN,TRIM4#
LIGHT GRAY,TRIM1#
LIGHT GREIGE,TRIM4#
W(LEATHER SEAT),LIGHT GREIGE,TRIM4#
LIGHT BLUE,TRIM8#
LIGHT GRAY,TRIM1#
LIGHT BLUE,TRIM8#
LIGHT GREIGE,TRIM4#
LIGHT TAN,TRIM4#
GRAY,TRIM1#
GREGE,TRIM4#
67603ARETAINER(FOR REAR DOOR TRIM BOARD)
TYPE A
TYPE B
TYPE A
67604BCLIP(FOR SLIDE DOOR TRIM BOARD)
67645BBRACKET, SLIDE DOOR TRIM BASE
TYPE A
TYPE B
67663AGARNISH, DOOR FRAME, RH
67663BGARNISH, DOOR FRAME, UPPER RH
67663CCLIP(FOR DOOR FRAME GARNISH)
67667AGARNISH, SLIDE DOOR WINDOW, RH
67772FCAP, REAR DOOR TRIM RETAINER
6792195500RETAINER, FRONT DOOR SCUFF PLATE
main67921-95500
9018905054
main90189-05054
9018906018
main90189-06018
9046804147
main90468-04147
9046805047
main90468-05047
9351016012
main93510-16012
9354015016
main93540-15016
17 parts on this diagram · 2 diagrams in section
