Toyota PREVIA — REAR DOOR LOCK & HANDLE

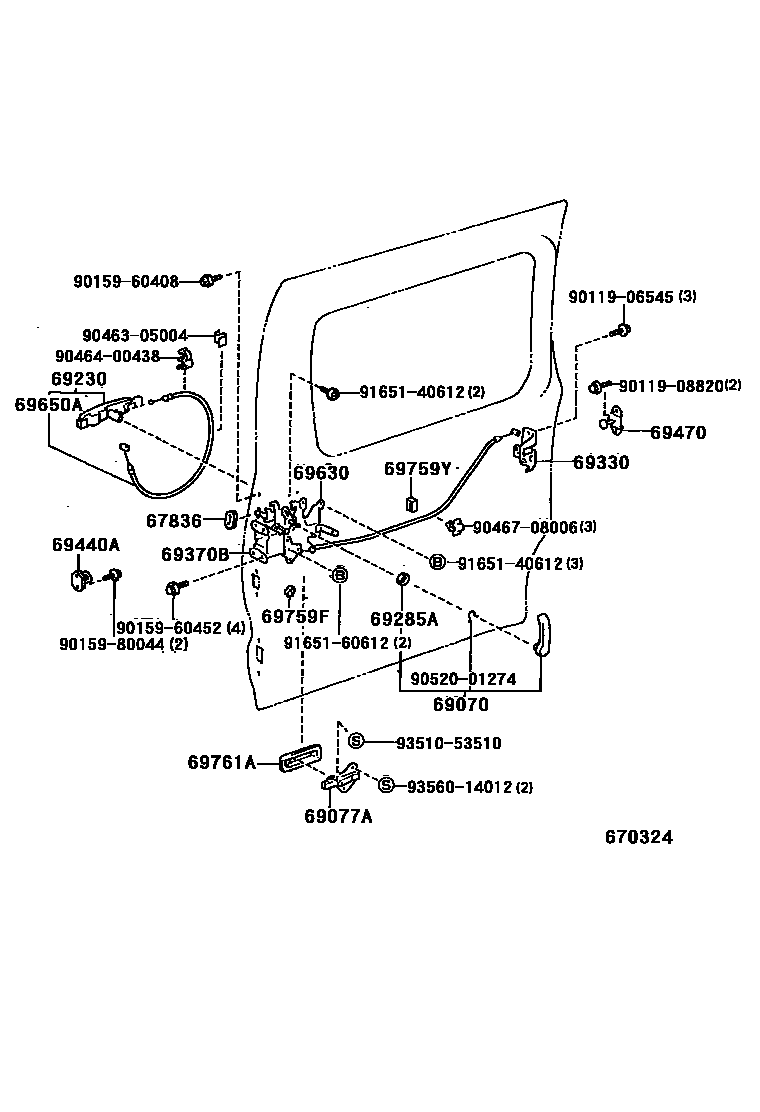

Parts diagram
67836COVER, REAR DOOR LOCK CHILD PROTECTION, RH
main67836-95D00i199001-199707
69070HANDLE ASSY, SLIDE DOOR, INSIDE, RH
main69070-95D00-03i199001-199308
GRAY,TRIM1#
sub69070-95D00
main69070-95D00-04i199001-199308
LIGHT GRAY BLUE,TRIM8#
sub69070-95D00
main69070-95D00-05i199001-199108
LIGHT TAN,TRIM4#
sub69070-95D00
main69070-95D00-06i199108-199308
LIGHT GREIGE,TRIM4#
sub69070-95D00
main69070-95D00-B0i199308-199707
GRAY,TRIM1#
sub69070-95D00
main69070-95D00-E2i199308-199707
GREIGE,TRIM4#
sub69070-95D00
main69070-95D00-R9i199308-199408
BLUE,TRIM8#
sub69070-95D00
69077AKNOB SUB-ASSY, DOOR LOCK CONTROL, RH
main69077-95D00-03i199001-199308
LIGHT GRAY,TRIM1#
sub69077-95D00
main69077-95D00-04i199001-199308
LIGHT BLUE,TRIM8#
sub69077-95D00
main69077-95D00-05i199108-199308
LIGHT GREIGE,TRIM4#
sub69077-95D00
main69077-95D00-06i199001-199108
LIGHT TAN,TRIM4#
sub69077-95D00
main69077-95D00-B0i199308-199707
LIGHT GRAY,TRIM1#
sub69077-95D00
main69077-95D00-E2i199308-199707
LIGHT GREIGE,TRIM4#
sub69077-95D00
main69077-95D00-R9i199308-199408
LIGHT BLUE,TRIM8#
sub69077-95D00
69230HANDLE ASSY, REAR DOOR OUTSIDE, RH
main69230-95D00i199001-199707
69285APLATE, DOOR VENT WINDOW CONTROL HANDLE
main69285-22010-08i199408-199707
NATURAL WHITE,TRIM1#,4#
sub69285-22010
main69285-22010-08i199001-199408
NATURAL WHITE,TRIM1#,4#,8#
sub69285-22010
69330LOCK ASSY, REAR DOOR, RH
main69330-95D00i199001-199707
69370BLOCK ASSY, SLIDE DOOR, FRONT RH
main69370-95D00i199001-199707
69440APLATE ASSY, SLIDE DOOR FRONT LOCK STRIKER
main69440-95D00i199001-199707
69470PLATE ASSY, SLIDE DOOR LOCK STRIKER
main69470-95D00i199001-199707
sub69470-46010
69630CONTROL ASSY, SLIDE DOOR LOCK REMOTE
main69630-95D00i199001-199707
main69630-95D01i199001-199707
W(POWER DOOR LOCK)
main69630-95D01i199001-199707
main69630-95D01i199608-199707
W(POWER WINDOW)
main69630-95D02i199001-199308
W(SECURITY SYSTEM) OR (POWER DOOR LOCK)
main69630-95D02i199108-199707
W(SECURITY SYSTEM)
69650ACABLE ASSY, SLIDE DOOR LOCK CONTROL
main69650-95D00i199001-199707
69759FSNAP, REAR DOOR LOCK CONTROL LINK
main69759-20100i199001-199707
69759YSILENCER, REAR DOOR LOCK LINK
main69759-95500i199001-199207
69761ABEZEL, DOOR LOCK CONTROL KNOB, RH
main69761-95D00-03i199001-199308
LIGHT GRAY,TRIM1#
sub69761-95D00
main69761-95D00-04i199001-199308
LIGHT BLUE,TRIM8#
sub69761-95D00
main69761-95D00-05i199108-199308
LIGHT GREIGE,TRIM4#
sub69761-95D00
main69761-95D00-06i199001-199108
LIGHT TAN,TRIM4#
sub69761-95D00
main69761-95D00-B0i199308-199707
LIGHT GRAY,TRIM1#
sub69761-95D00
main69761-95D00-E2i199308-199707
LIGHT GREIGE,TRIM4#
sub69761-95D00
main69761-95D00-R9i199308-199408
LIGHT BLUE,TRIM8#
sub69761-95D00
9011906545
main90119-06545
9011908820
main90119-08820
9015960408
main90159-60408
9015960452
main90159-60452
9015980044
main90159-80044
9046305004
main90463-05004
9046400438
main90464-00438
9046708006
main90467-08006
9052001274
main90520-01274
9165140612
main91651-40612
9165160612
main91651-60612
9351053510
main93510-53510
9356014012
main93560-14012

27 parts on this diagram · 1 diagram in section
