Toyota PREVIA — REAR AXLE SHAFT & HUB

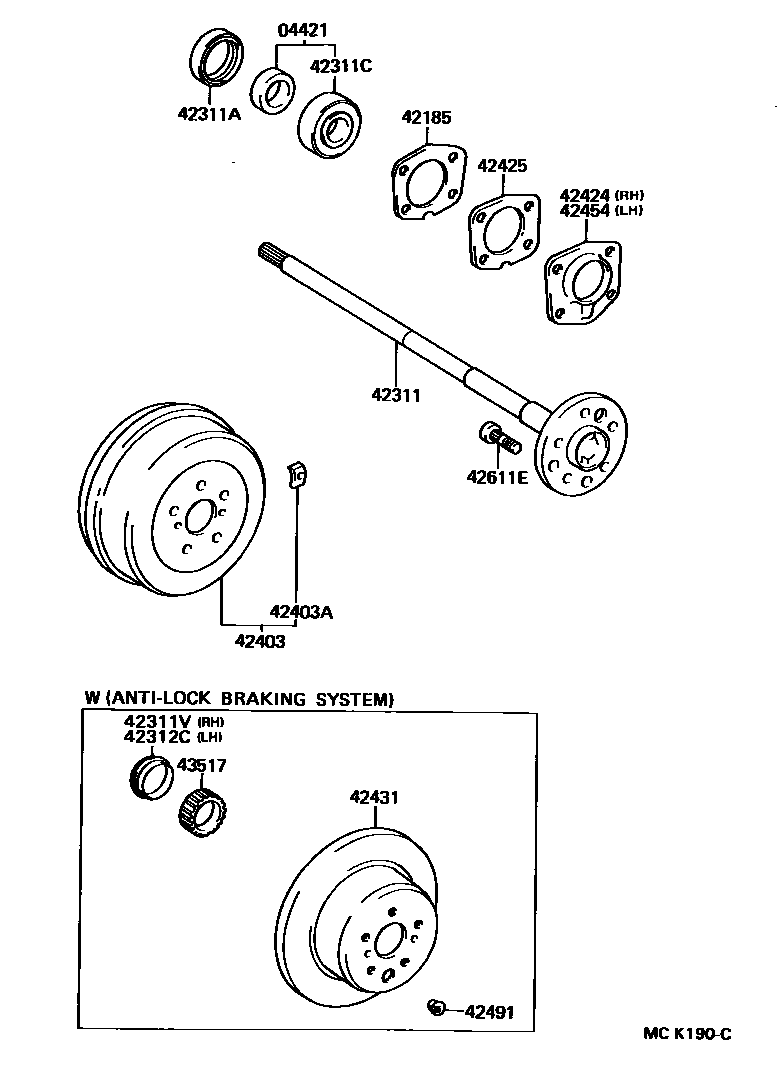

Parts diagram
04421BEARING KIT, REAR AXLE SHAFT
main04421-28010i199001-199308
sub04421-28030
main04421-28020i199302-199308
W(RR DISC BRAKE) OR CHINA SPEC
main04421-28020i199001-199408
W(RR DISC BRAKE)
main04421-28020i199408-199707
W(REAR DISC BRAKE)
main04421-28030i199308-199707
42185GASKET, REAR AXLE HOUSING END
main42185-30061i199001-199707
main42185-30090i199001-199408
W(RR DISC BRAKE)
main42185-30090i199302-199308
W(RR DISC BRAKE) OR CHINA SPEC
main42185-30090i199408-199707
W(REAR DISC BRAKE)
42311SHAFT, REAR AXLE
main42311-28050i199001-199707
main42311-28060i199001-199408
W(RR DISC BRAKE)
main42311-28060i199302-199308
W(RR DISC BRAKE) OR CHINA SPEC
main42311-28060i199408-199707
W(REAR DISC BRAKE)
42311ASEAL, OIL(FOR REAR AXLE SHAFT)
main90311-52059i199001-199707
42311CBEARING(FOR REAR AXLE SHAFT)
main90369-35060i199408-199707
W(REAR DISC BRAKE)
main90369-35060i199001-199408
W(RR DISC BRAKE)
main90369-35060i199302-199308
W(RR DISC BRAKE) OR CHINA SPEC
main90369-35061i199001-199310
sub90369-35073
main90369-35073i199310-199707
42311VSEAL, OIL(FOR REAR AXLE SHAFT RH)
main90312-35002i199001-199707
42312CSEAL, OIL(FOR REAR AXLE SHAFT LH)
main90312-35002i199001-199707
42403DRUM SUB-ASSY, REAR BRAKE
main42431-28040i199001-199707
42403APIECE, BALANCE (FOR REAR BRAKE DRUM)
main90937-01287i199001-199707
10G
main90937-01288i199001-199707
20G
main90937-01289i199001-199707
30G
42424RETAINER, REAR AXLE BEARING, OUTER, RH
main42424-28010i199001-199408
W(RR DISC BRAKE)
main42424-28010i199302-199308
W(RR DISC BRAKE) OR CHINA SPEC
main42424-28010i199408-199707
W(REAR DISC BRAKE)
main42424-30040i199001-199707
42425GASKET, REAR AXLE BEARING RETAINER
main42425-30031i199001-199707
main42425-30040i199408-199707
W(REAR DISC BRAKE)
main42425-30040i199001-199408
W(RR DISC BRAKE)
main42425-30040i199302-199308
W(RR DISC BRAKE) OR CHINA SPEC
42431DISC, REAR
main42431-14120i199001-199707
sub42431-14110
42454RETAINER, REAR AXLE BEARING, OUTER, LH
main42424-28010i199001-199408
W(RR DISC BRAKE)
main42424-28010i199302-199308
W(RR DISC BRAKE) OR CHINA SPEC
main42424-28010i199408-199707
W(REAR DISC BRAKE)
main42424-30040i199001-199707
42491PLUG, SHOE ADJUSTING HOLE (FOR PARKING BRAKE)
main47491-22020i199001-199707
42611EBOLT, HUB (FOR REAR AXLE)
main90942-02047i199001-199707
43517ROTOR, SKID CONTROL, REAR
main43517-28010i199001-199707

16 parts on this diagram · 1 diagram in section
