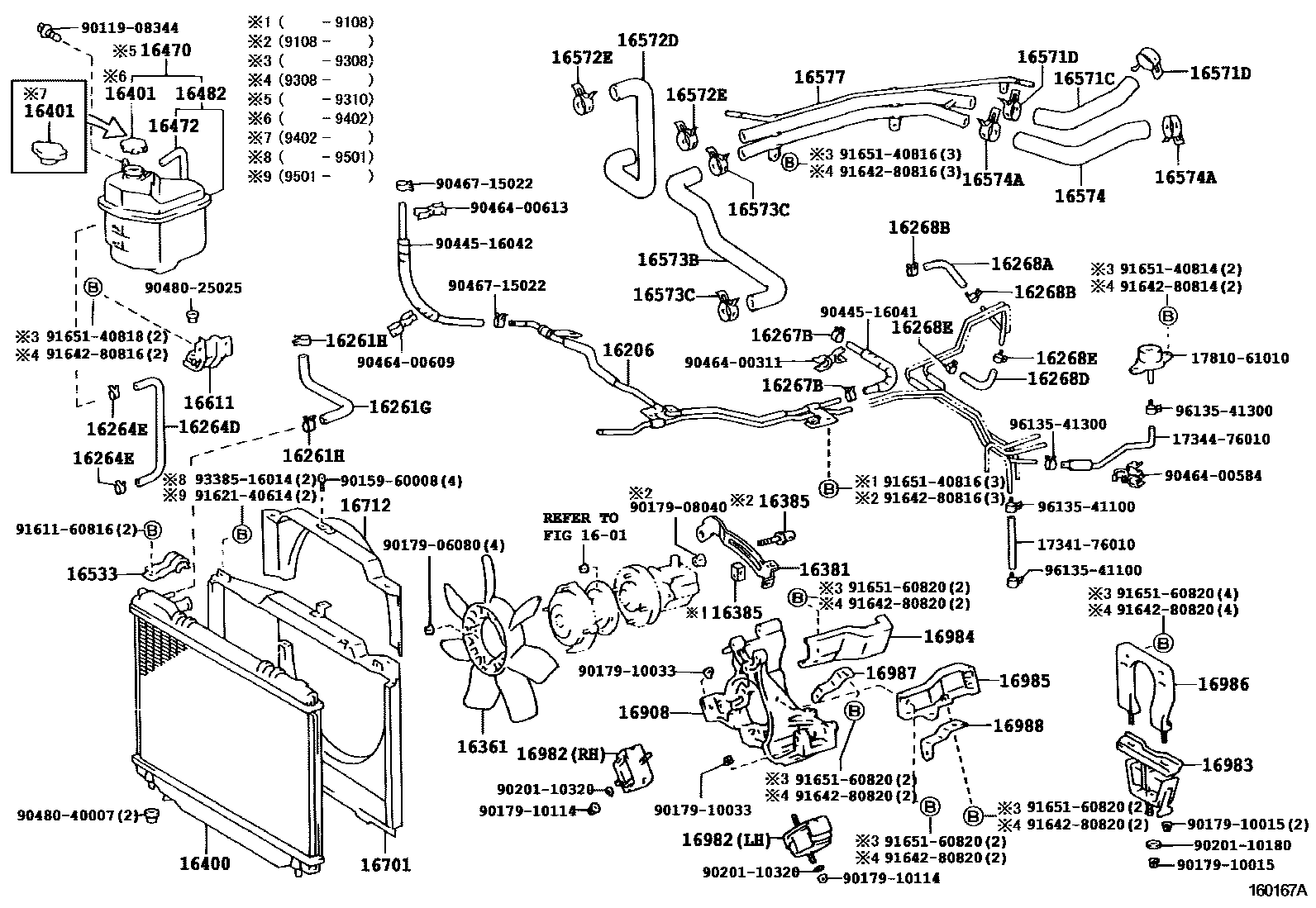

Toyota PREVIA — RADIATOR & WATER OUTLET

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1

1601

16206PIPE SUB-ASSY, WATER BY-PASS

main16206-76010i2TZFE..TCR10,20199001-199202

sub16206-76020

main16206-76020i2TZFE..TCR10,20199202-199608

16261HOSE, WATER BY-PASS

main16261-76030i2TZFE..TCR10,20199001-199608

16261GHOSE, WATER BY-PASS, NO.1

main16261-76050i2TZ#..TCR10,20199001-199707

16261HCLIP(FOR WATER BY-PASS HOSE NO.1)

main90467-15016i2TZFE..TCR10,20199001-199009

sub96135-51400

main90467-15022i2TZ#..TCR10,20199409-199707

main96135-41400i2TZ#..TCR10,20199009-199409

16264HOSE, WATER BY-PASS, NO.2

main16264-76010i2TZFE..TCR10,20199001-199308

sub16264-76011

main16264-76011i2TZFE..TCR10..07S..USA199302-199308

CHINA SPEC

main16264-76011i2TZFE..TCR10,20199308-199608

16264DHOSE, WATER BY-PASS, NO.2

main16264-76040i2TZFE..TCR10,20199001-199608

main90445-16020i2TZFZE..TCR10,20199401-199408

main90445-16053i2TZFZE..TCR10,20199408-199707

16264ECLIP(FOR WATER BY-PASS HOSE NO.2)

main90467-15016i2TZFE..TCR10,20199001-199009

sub96135-51400

main90467-15022i2TZ#..TCR10,20199409-199707

main96135-41400i2TZ#..TCR10,20199009-199409

16267HOSE, WATER BY-PASS, NO.3

main16267-76010i2TZ#..TCR10,20199001-199707

main16267-76030i2TZFE..TCR10..07S..USA199302-199308

CHINA SPEC

16267BCLIP(FOR WATER BY-PASS HOSE)

main90467-15016i2TZFE..TCR10,20199001-199009

sub96135-51400

main90467-15022i2TZFE..TCR10,20199409-199608

main96135-41400i2TZFE..TCR10,20199009-199409

16268PIPE, WATER BY-PASS, NO.1

main16268-76010i2TZFE..TCR10,20199001-199110

sub16268-76011

main16268-76011i2TZFE..TCR10,20199110-199608

main16268-76050i2TZFZE..TCR10,20199401-199707

16268AHOSE(FOR WATER BY-PASS PIPE)

main17342-76010i2TZ#..TCR10,20199001-199707

H=120

16268BCLAMP OR CLIP, HOSE(FOR WATER BY-PASS PIPE)

main96135-41100i2TZ#..TCR10,20199001-199707

sub96135-51100

16268DHOSE(FOR WATER BY-PASS PIPE)

main17343-76010i2TZ#..TCR10,20199001-199707

16268ECLAMP, HOSE(FOR WATER BY-PASS PIPE)

main96135-41300i2TZ#..TCR10,20199001-199707

sub96135-51300

16361FAN

main16361-76050i2TZFE..TCR10,20199001-199010

sub16361-76060

main16361-76060i2TZ#..TCR10,20199010-199707

16381BAR, FAN BELT ADJUSTING

main16381-76030i2TZFE..TCR10,20199001-199108

main16381-76040i2TZFE..TCR10,20199108-199508

main16381-76060i2TZFE..TCR10199508-199608

16385SLIDER, FAN BELT ADJUSTING

main16385-76010i2TZFE..TCR10,20199001-199108

main16385-76020i2TZFE..TCR10,20199108-199508

main16385-76030i2TZFE..TCR10199508-199608

16400RADIATOR ASSY

main16400-76060i2TZFE..TCR10,20..ATM199001-199005

sub16400-76061

main16400-76061i2TZFE..TCR10,20..ATM199005-199009

sub16400-76081

main16400-76062i2TZFE..TCR10..07S..USA199302-199308

CHINA SPEC

main16400-76070i2TZFE..TCR10,20..MTM199001-199005

sub16400-76071

main16400-76071i2TZFE..TCR10,20..MTM199005-199009

sub16400-76061

main16400-76080i2TZFE..TCR10,20..ATM199001-199005

TOWING PACKAGE

sub16400-76081

main16400-76081i2TZFE..TCR10,20..ATM199005-199009

TOWING PACKAGE

main16400-76081i2TZFE..TCR10,20..ATM199009-199108

main16400-76082i2TZFE..TCR10,20..ATM199108-199608

main16400-76090i2TZFE..TCR10,20..MTM199001-199005

TOWING PACKAGE

sub16400-76091

main16400-76091i2TZFE..TCR10,20..MTM199009-199108

sub16400-76081

main16400-76091i2TZFE..TCR10,20..MTM199005-199009

TOWING PACKAGE

sub16400-76081

main16400-76092i2TZFE..TCR10,20..MTM199108-199308

sub16400-76082

main16400-76130i2TZFZE..TCR10,20199401-199508

sub16400-76131

main16400-76131i2TZFZE..TCR10,20199508-199707

16401CAP SUB-ASSY, RADIATOR

main16401-76020i2TZ#..TCR10,20199001-199402

sub16401-76021

main16401-76021i2TZ#..TCR10,20199402-199707

16470TANK ASSY, RADIATOR RESERVE

main16470-76020i2TZFE..TCR10,20199001-199109

sub16470-76021

main16470-76021i2TZFE..TCR10,20199109-199310

sub16480-76011

sub16401-76020

16472HOSE, BREATHER

main85338-76020i2TZ#..TCR10,20199302-199601

main85338-89102i2TZFE..TCR10,20199001-199302

main90445-12078i2TZ#..TCR10,20199601-199707

L=600(*H,L=150)

16482TANK SUB-ASSY, RADIATOR RESERVE

main16480-76011i2TZ#..TCR10,20199001-199601

main16480-76012i2TZ#..TCR10,20199601-199707

sub16480-76013

16533SUPPORT, RADIATOR, UPPER

main16505-76010i2TZFE..TCR10,20199001-199007

sub16505-76011

main16505-76011i2TZFE..TCR10,20199007-199308

main16505-76011i2TZ#..TCR10,20199308-199707

LH

main16505-76040i2TZ#..TCR10,20199308-199707

RH

16571CHOSE, RADIATOR, NO.1

main16571-76030i2TZFE..TCR10,20199001-199202

main16571-76031i2TZ#..TCR10,20199202-199707

16571DCLIP, RADIATOR HOSE, NO.1

main90466-41001i2TZFZE..TCR10,20199612-199707

ENGINE SIDE

sub90467-41002

main90467-41001i2TZ#..TCR10,20199001-199608

ENGINE SIDE

main90467-41002i2TZFZE..TCR10,20199612-199707

PIPE SIDE

sub90466-41008

main90467-41009i2TZFZE..TCR10,20199608-199612

ENGINE SIDE

sub90467-41002

main90467-42001i2TZ#..TCR10,20199001-199612

PIPE SIDE

sub90467-41002

16572DHOSE, RADIATOR, NO.2

main16572-76020i2TZFE..TCR10,20199001-199202

sub16572-76021

main16572-76021i2TZFE..TCR10,20199202-199401

sub16572-76022

main16572-76022i2TZ#..TCR10,20199401-199707

16572ECLIP, RADIATOR HOSE, NO.2

main90466-41001i2TZFZE..TCR10,20199612-199707

RADIATOR SIDE

sub90467-41002

main90467-41001i2TZ#..TCR10,20199308-199608

RADIATOR SIDE

main90467-41002i2TZFZE..TCR10,20199612-199707

PIPE SIDE

sub90466-41008

main90467-41009i2TZFZE..TCR10,20199608-199612

RADIATOR SIDE

sub90467-41002

main90467-42001i2TZFE..TCR10,20199001-199308

sub90467-41002

main90467-42001i2TZ#..TCR10,20199308-199612

PIPE SIDE

sub90467-41002

16573BHOSE, RADIATOR, NO.3

main16573-76020i2TZFE..TCR10,20199001-199401

main16573-76021i2TZ#..TCR10,20199401-199702

sub16573-76022

main16573-76022i2TZFZE..TCR10,20199702-199707

16573CCLAMP OR CLIP, RADIATOR HOSE, NO.3

main90466-41001i2TZFZE..TCR10,20199612-199707

PIPE SIDE

sub90467-41002

main90467-41001i2TZ#..TCR10,20199112-199608

RADIATOR SIDE

main90467-41007i2TZFZE..TCR10,20199612-199707

RADIATOR SIDE

sub90467-41002

main90467-41009i2TZFZE..TCR10,20199608-199612

RADIATOR SIDE

sub90467-41002

main90467-42001i2TZFE..TCR10,20199001-199112

sub90467-41002

main90467-42001i2TZ#..TCR10,20199112-199612

PIPE SIDE

sub90467-41002

16574HOSE, RADIATOR, NO.4

main16574-76010i2TZFE..TCR10,20199001-199202

main16574-76011i2TZ#..TCR10,20199202-199707

16574ACLIP, RADIATOR HOSE, NO.4

main90466-41001i2TZFZE..TCR10,20199612-199707

ENGINE SIDE

sub90467-41002

main90467-41001i2TZFE..TCR10,20199001-199308

ENGINE SIDE

main90467-41002i2TZFZE..TCR10,20199612-199707

PIPE SIDE

sub90466-41008

main90467-42001i2TZ#..TCR10,20199308-199612

sub90467-41002

main90467-42001i2TZFE..TCR10,20199001-199308

PIPE SIDE

sub90467-41002

16577PIPE, RADIATOR, NO.7

main16577-76050i2TZFE..TCR10,20199001-199202

main16577-76051i2TZFE..TCR10,20199202-199401

sub16577-76052

main16577-76052i2TZ#..TCR10,20199401-199707

16611BRACKET, RADIATOR RESERVE TANK

main16611-76010i2TZ#..TCR10,20199001-199601

main16611-76011i2TZ#..TCR10,20199601-199707

16701SHROUD SUB-ASSY, FAN

main16711-76080i2TZFE..TCR10,20199001-199005

sub16711-76081

sub16832-76010

main16711-76081i2TZFE..TCR10,20199005-199202

main16711-76090i2TZFE..TCR10,20199202-199608

main16711-76100i2TZFZE..TCR10,20199401-199707

16712SHROUD, FAN, NO.2

main16712-76030i2TZFE..TCR10,20199001-199202

main16712-76040i2TZFE..TCR10,20199202-199608

sub16712-76041

main16712-76050i2TZFZE..TCR10,20199401-199707

sub16712-76051

16908HOUSING SUB-ASSY, EQUIPMENT DRIVE

main16908-76012i2TZFE..TCR10,20199001-199608

main16908-76020i2TZFZE..TCR10,20199401-199707

16982INSULATOR, EQUIPMENT DRIVE HOUSING, NO.1

main16982-76011i2TZFE..TCR10,20199001-199608

RH

main16982-76020i2TZFE..TCR10,20199001-199608

LH

main16982-76030i2TZFZE..TCR10,20199401-199411

RH

sub16982-76031

main16982-76031i2TZFZE..TCR10,20199411-199707

RH

main16982-76040i2TZFZE..TCR10,20199401-199411

LH

sub16982-76041

main16982-76041i2TZFZE..TCR10,20199411-199707

LH

16983INSULATOR, EQUIPMENT DRIVE HOUSING, NO.2

main16983-76011i2TZFE..TCR10,20199001-199110

sub16983-76012

main16983-76012i2TZFE..TCR10,20199110-199608

main16983-76020i2TZFZE..TCR10,20199401-199707

16984STAY, EQUIPMENT DRIVE HOUSING, NO.1

main16984-76010i2TZFE..TCR10,20199001-199608

main16984-76020i2TZFZE..TCR10,20199401-199707

16985STAY, EQUIPMENT DRIVE HOUSING, NO.2

main16985-76011i2TZFE..TCR10,20199001-199608

16986STAY, EQUIPMENT DRIVE HOUSING, NO.3

main16986-76011i2TZFE..TCR10,20199001-199007

sub16986-76012

main16986-76012i2TZ#..TCR10,20199007-199608

main16986-76040i2TZFZE..TCR10,20199601-199707

16987STAY, EQUIPMENT DRIVE HOUSING, NO.4

main16987-76010i2TZFE..TCR10,20199001-199608

16988STAY, EQUIPMENT DRIVE HOUSING, NO.5

main16988-76010i2TZFE..TCR10,20199001-199608

1734176010HOSE, NO.1(FOR AIR INJECTION SYSTEM)

main17341-76010

1734476010HOSE, NO.4(FOR AIR INJECTION SYSTEM)

main17344-76010

1781061010FILTER ASSY, AIR

main17810-61010

9011908344

main90119-08344

9015960008

main90159-60008

9017906080

main90179-06080

9017908040

main90179-08040

9017910015

main90179-10015

9017910033

main90179-10033

9017910114

main90179-10114

9020110180

main90201-10180

9020110320

main90201-10320

9044516041

main90445-16041

9044516042

main90445-16042

9046400311

main90464-00311

9046400584

main90464-00584

9046400609

main90464-00609

9046400613

main90464-00613

9046715022

main90467-15022

9048025025

main90480-25025

9048040007

main90480-40007

9161160816

main91611-60816

9162140614

main91621-40614

9164280814

main91642-80814

9164280816

main91642-80816

9164280820

main91642-80820

9165140814

main91651-40814

9165140816

main91651-40816

9165140818

main91651-40818

9165160820

main91651-60820

9338516014

main93385-16014

9613541100

main96135-41100

9613541300

main96135-41300
