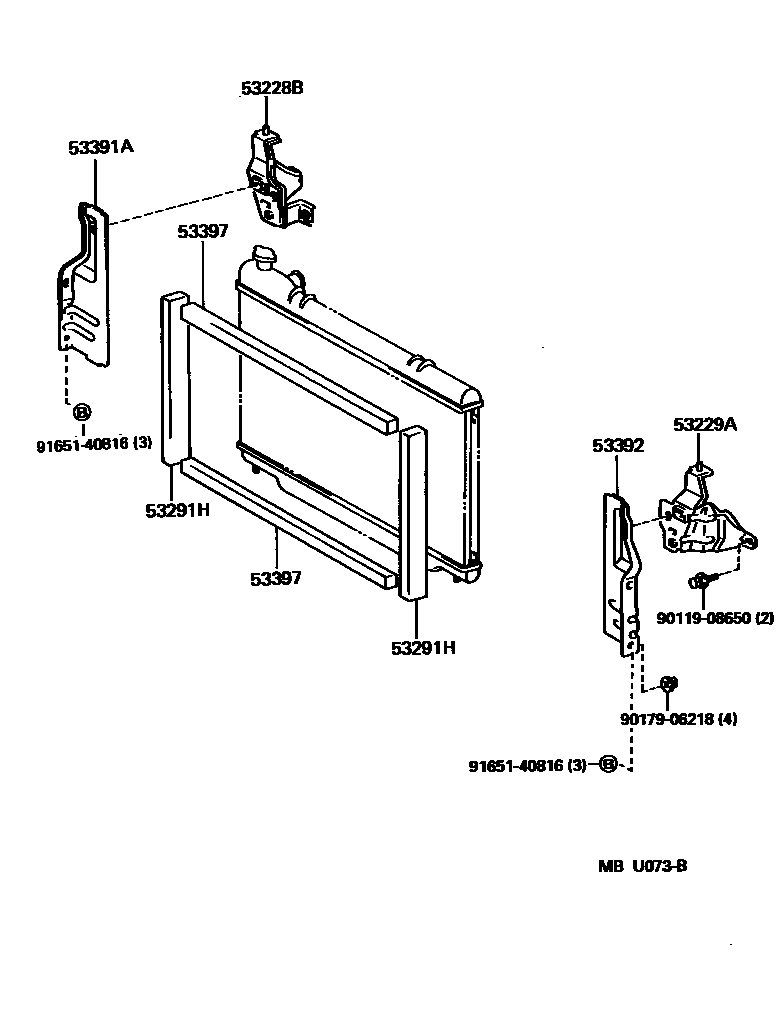

Toyota PREVIA — RADIATOR SUPPORT & WIND GUIDE

53228BBRACKET SUB-ASSY, RADIATOR GRILLE MOUNTING

main53209-28010iTCR10,20199308-199707

53229ABRACKET, RADIATOR GRILLE MOUNTING

main53229-28010iTCR10,20199308-199707

53291HSEAL, RADIATOR SUPPORT

main53291-95D00iTCR10,20..EFI199001-199707

main53291-95D00iTCR10,20..SPC199401-199408

NO.2

53391ABRACKET, RADIATOR SEAL, RH

main53391-95D00iTCR10,20199001-199707

53392BRACKET, RADIATOR SEAL, LH

main53392-95D00iTCR10,20199001-199707

53397SEAL, RADIATOR, UPPER

main53397-95D00iTCR10,20199001-199707

9011908650

main90119-08650

9017906218

main90179-06218

9165140816

main91651-40816

9 parts on this diagram · 1 diagram in section
